Heated Window
Heated Window

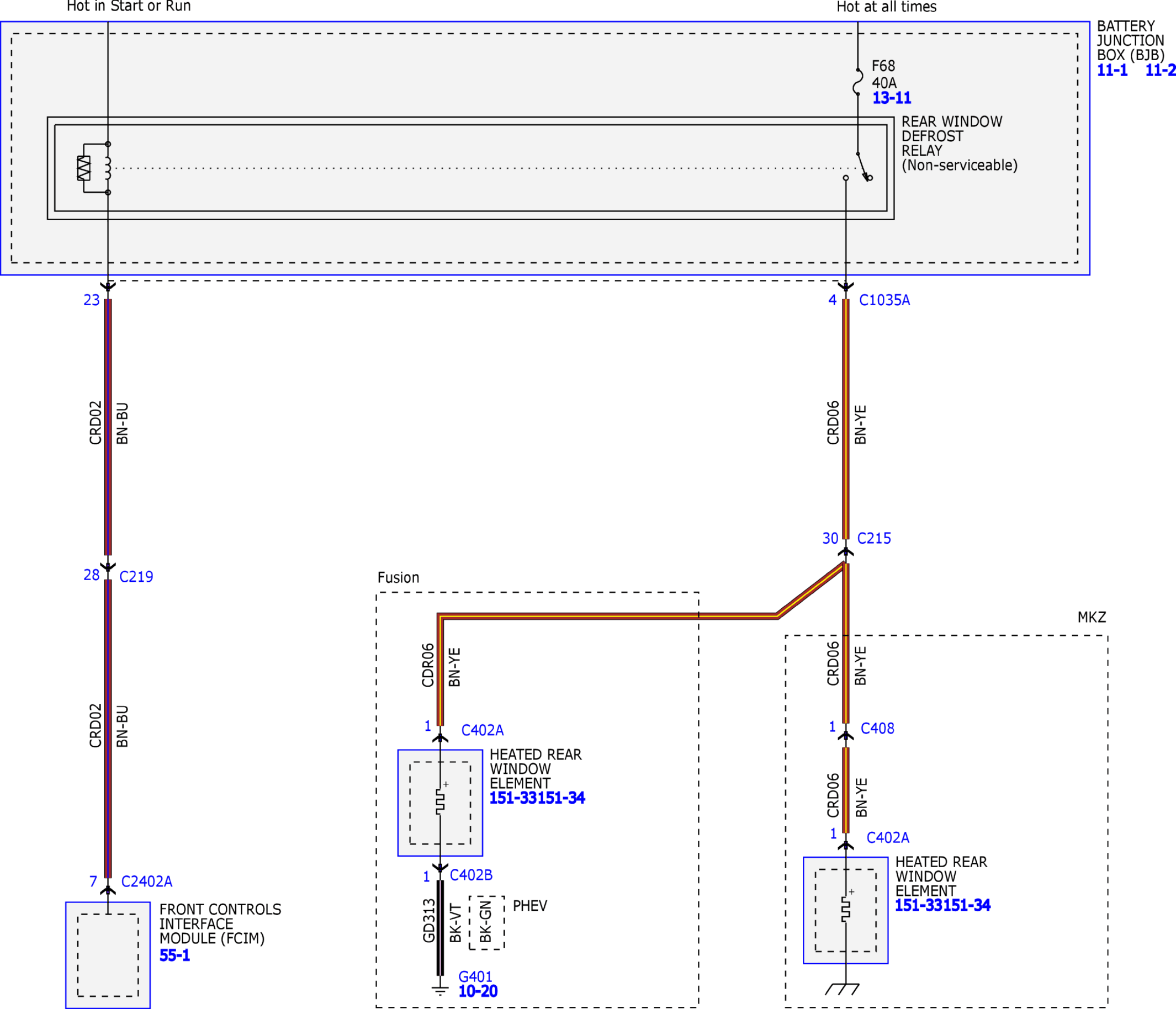

Fig 1: Heated Window Wiring Diagram (1 of 2)
Courtesy of FORD MOTOR COMPANY
Fig 2: Heated Window Wiring Diagram (2 of 2)
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
