Climate Controlled Seats

Fig 1: Climate Controlled Seats Wiring Diagram (1 of 8)
GFDW51279Courtesy of FORD MOTOR COMPANY
Fig 2: Climate Controlled Seats Wiring Diagram (2 of 8)
GFDW51280Courtesy of FORD MOTOR COMPANY
Fig 3: Climate Controlled Seats Wiring Diagram (3 of 8)
GFDW51281Courtesy of FORD MOTOR COMPANY
Fig 4: Climate Controlled Seats Wiring Diagram (4 of 8)
GFDW51282Courtesy of FORD MOTOR COMPANY

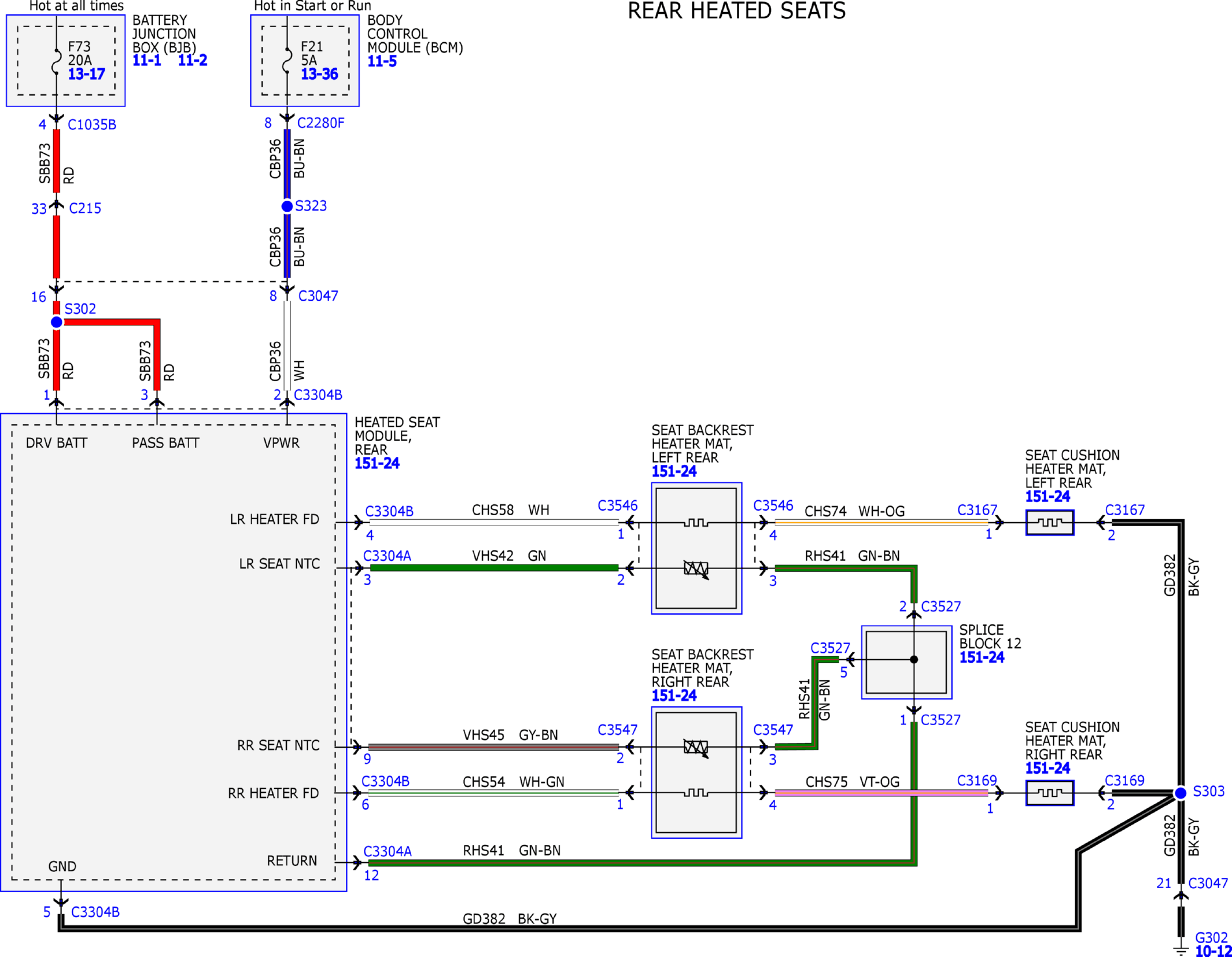

Fig 5: Climate Controlled Seats Wiring Diagram (5 of 8)
GFDW51283Courtesy of FORD MOTOR COMPANY
Fig 6: Climate Controlled Seats Wiring Diagram (6 of 8)
GFDW51284Courtesy of FORD MOTOR COMPANY

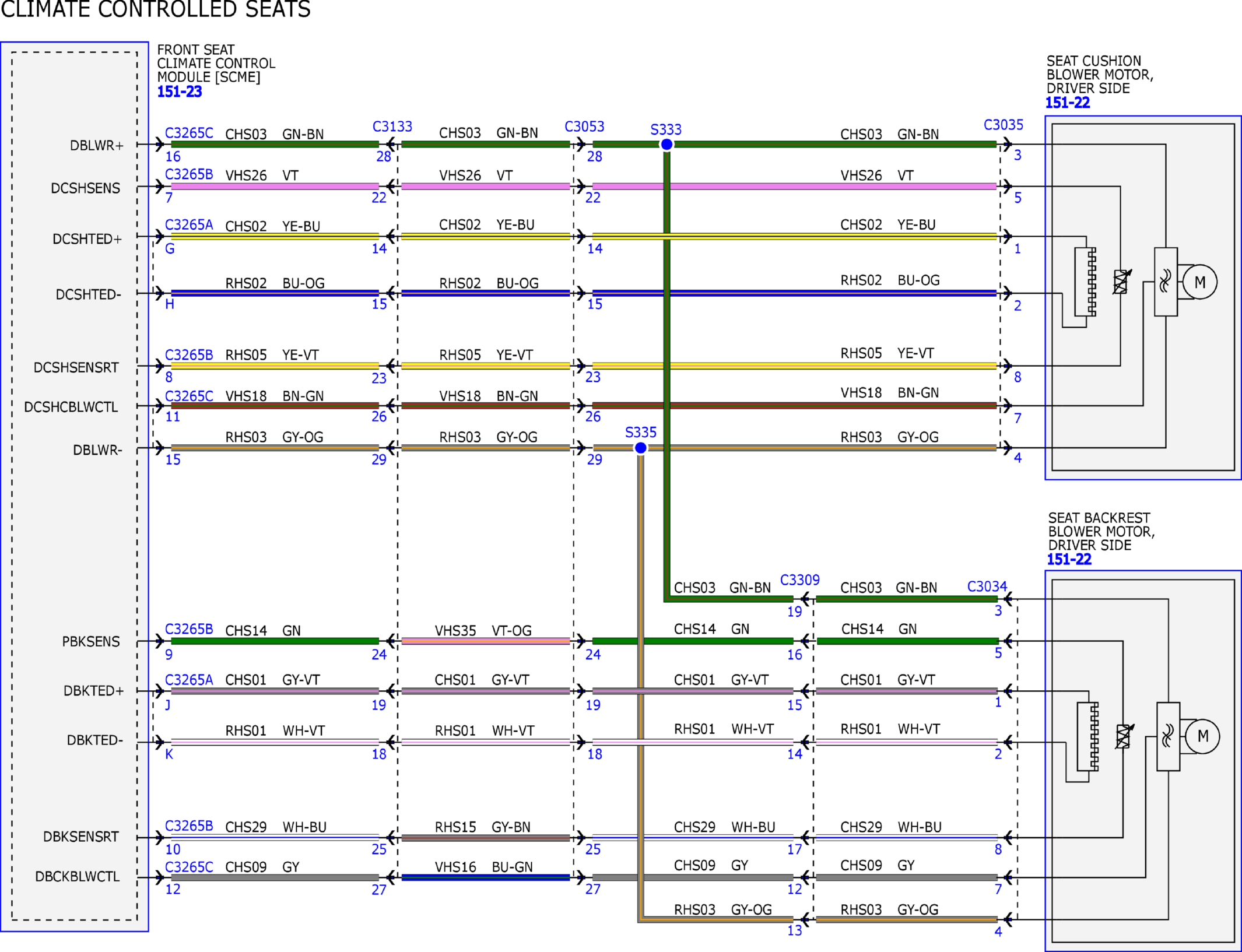

Fig 7: Climate Controlled Seats Wiring Diagram (7 of 8)
GFDW51285Courtesy of FORD MOTOR COMPANY
Fig 8: Climate Controlled Seats Wiring Diagram (8 of 8)
GFDW51286Courtesy of FORD MOTOR COMPANY
