Automatic Climate Control System

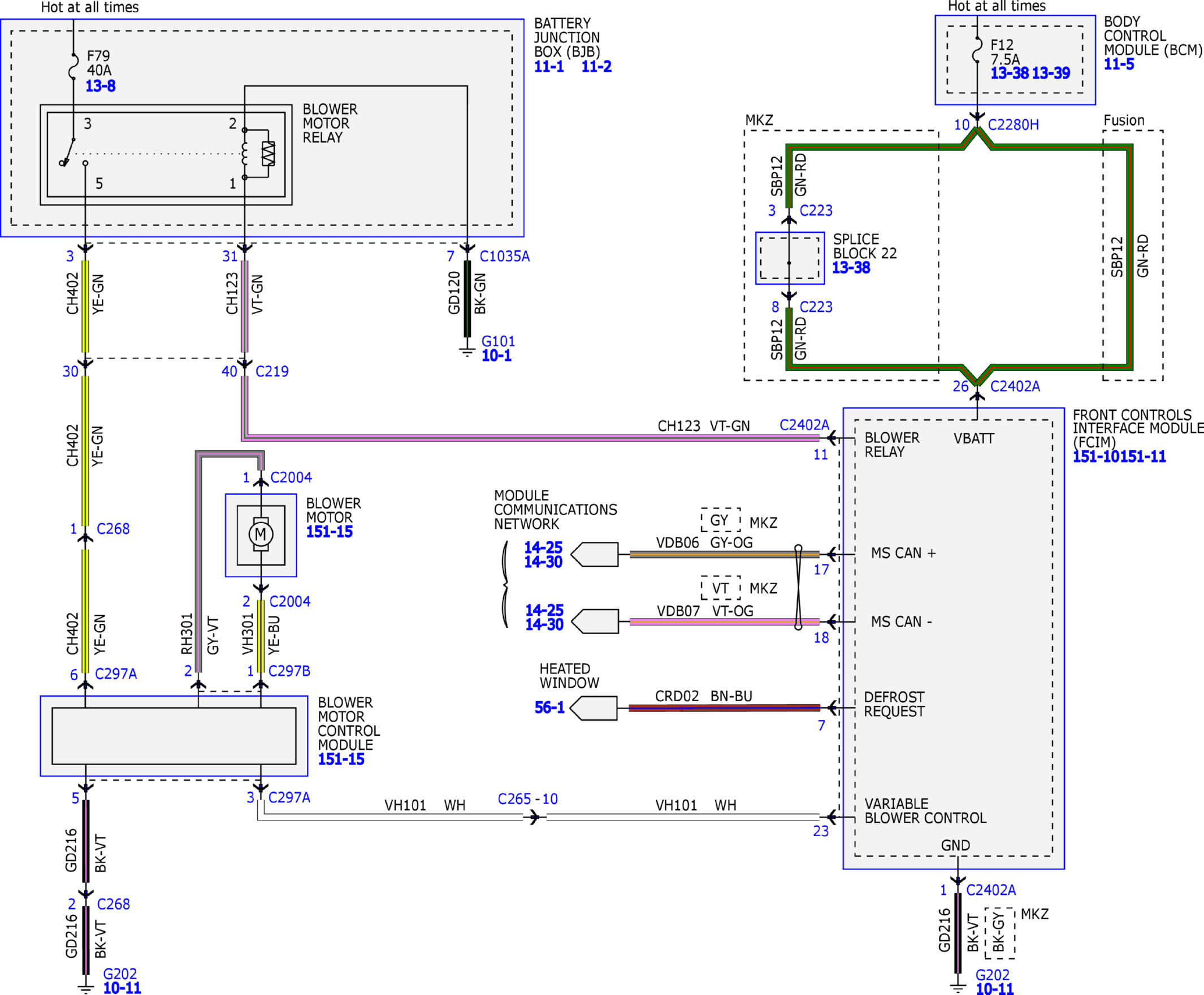

Fig 1: Automatic Climate Control System Wiring Diagram (1 of 9)
GFDW51256Courtesy of FORD MOTOR COMPANY

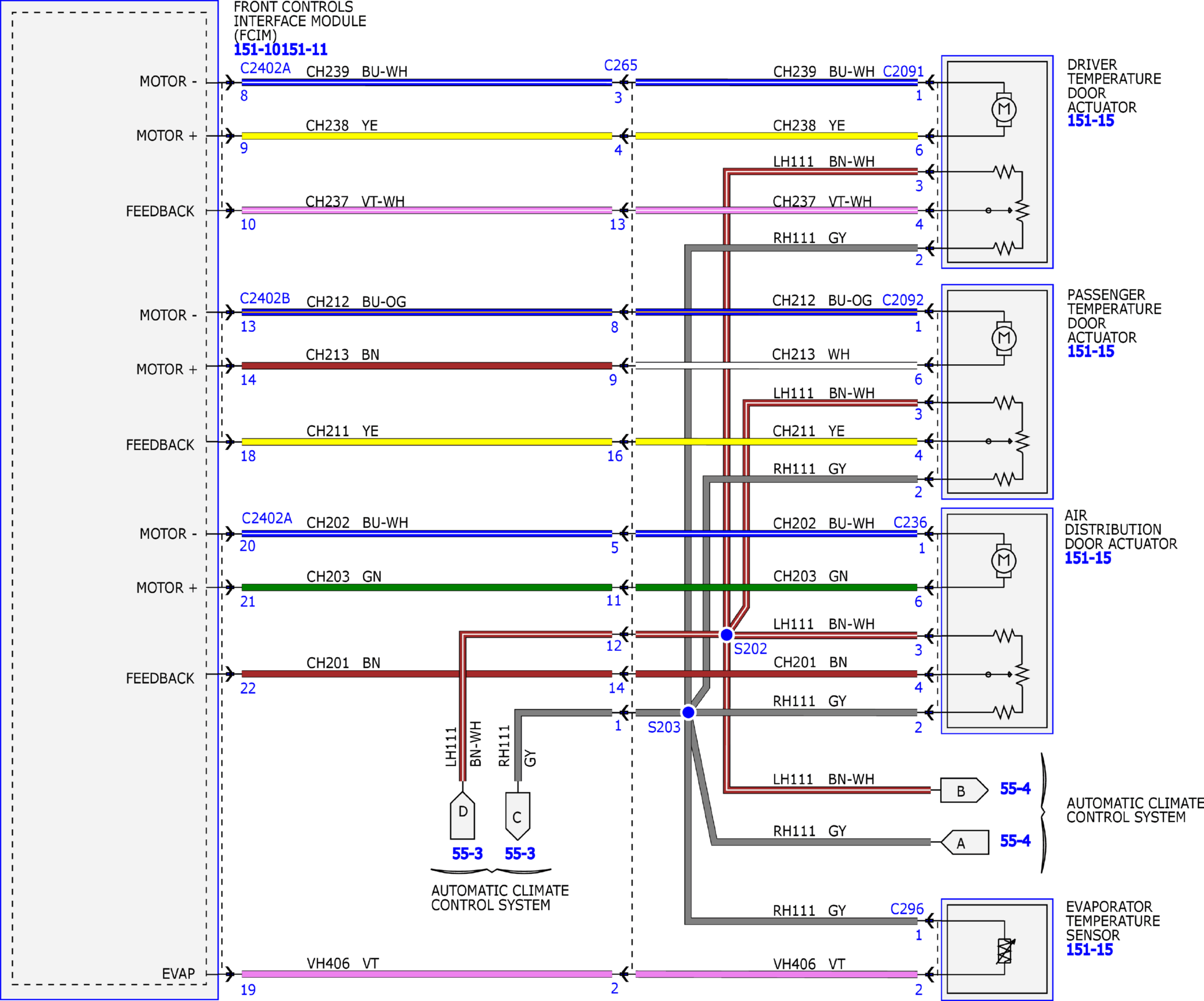

Fig 2: Automatic Climate Control System Wiring Diagram (2 of 9)
GFDW51257Courtesy of FORD MOTOR COMPANY

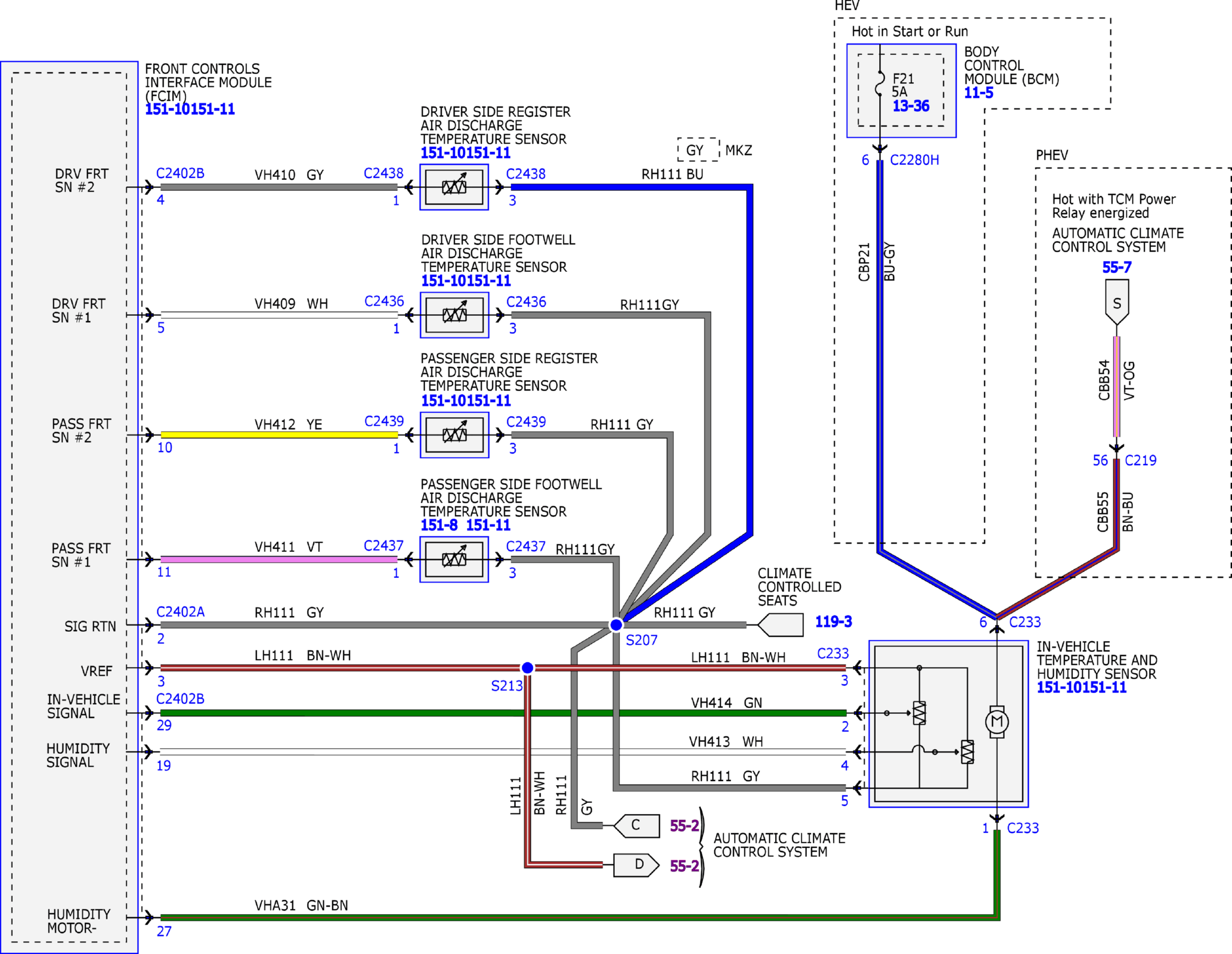

Fig 3: Automatic Climate Control System Wiring Diagram (3 of 9)
GFDW51258Courtesy of FORD MOTOR COMPANY

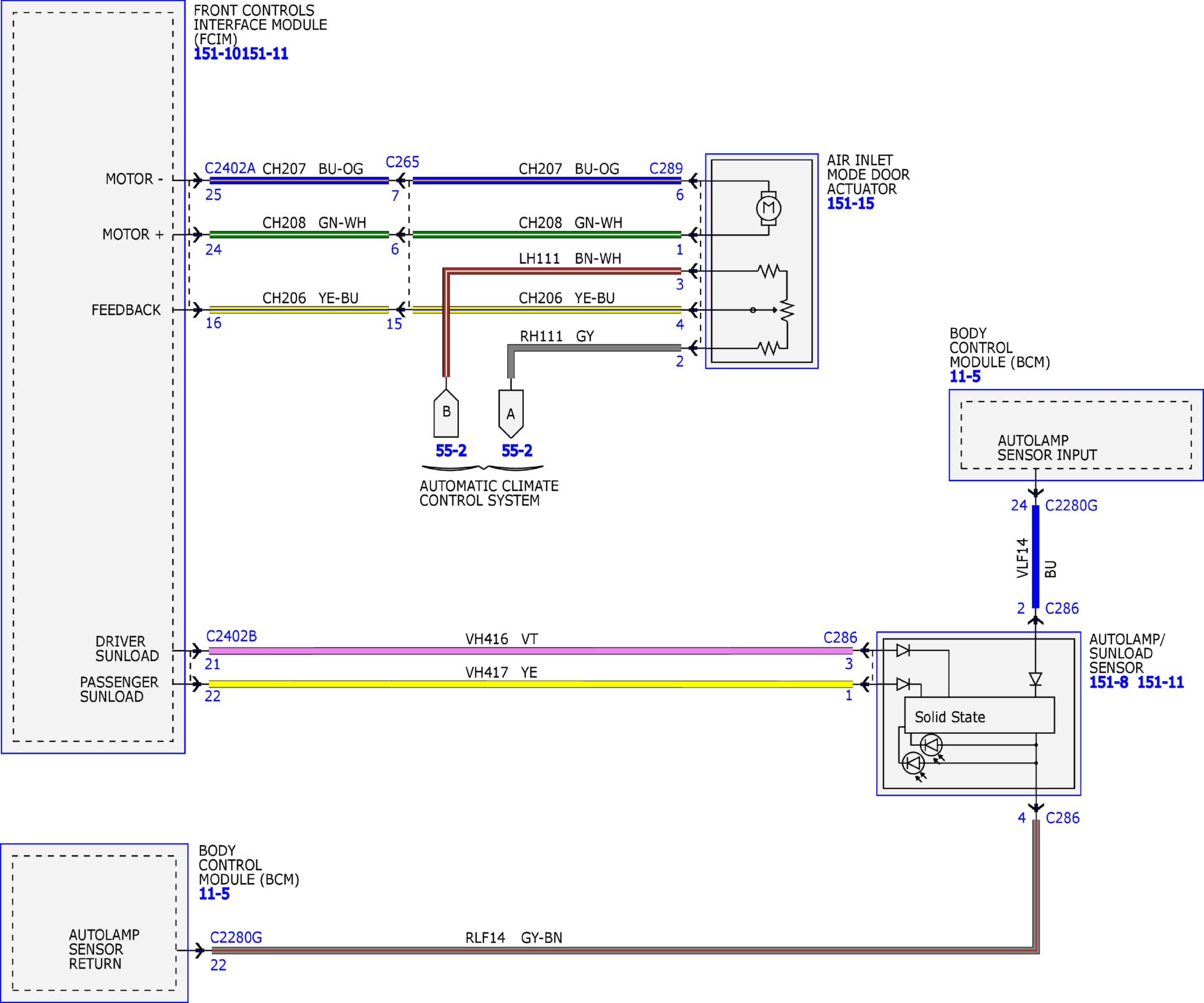

Fig 4: Automatic Climate Control System Wiring Diagram (4 of 9)
GFDW51259Courtesy of FORD MOTOR COMPANY

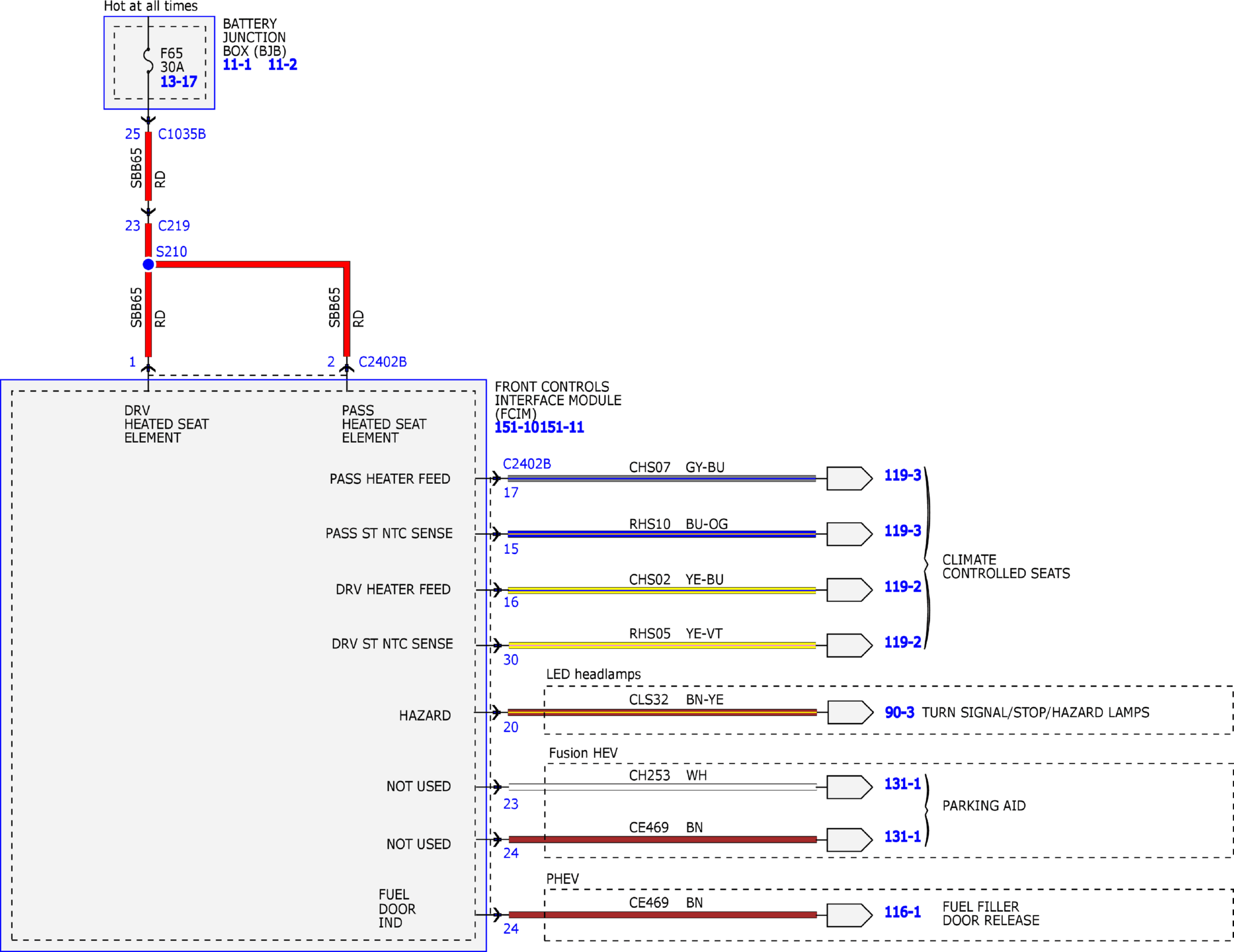

Fig 5: Automatic Climate Control System Wiring Diagram (5 of 9)
GFDW51260Courtesy of FORD MOTOR COMPANY

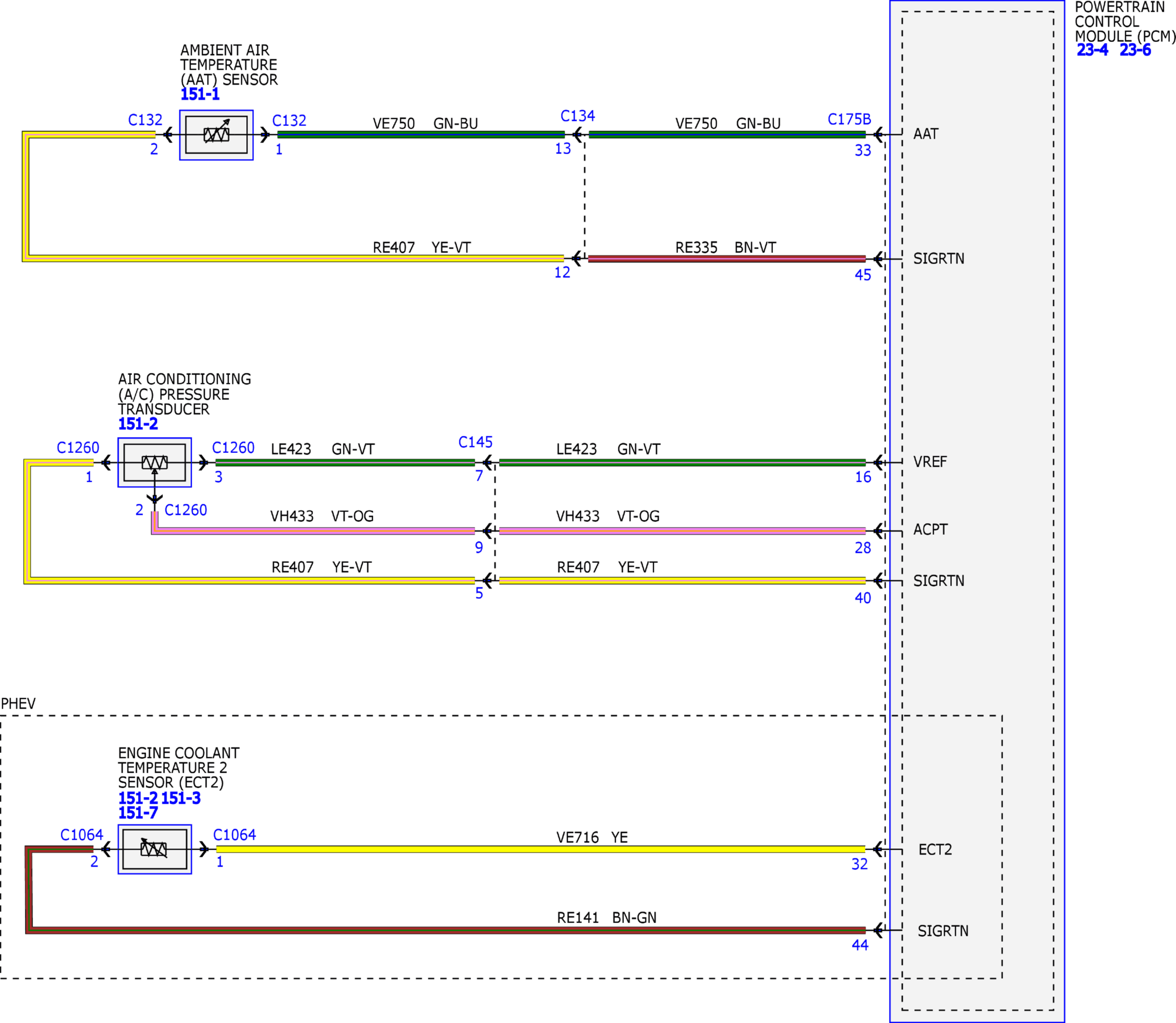

Fig 6: Automatic Climate Control System Wiring Diagram (6 of 9)
GFDW51261Courtesy of FORD MOTOR COMPANY

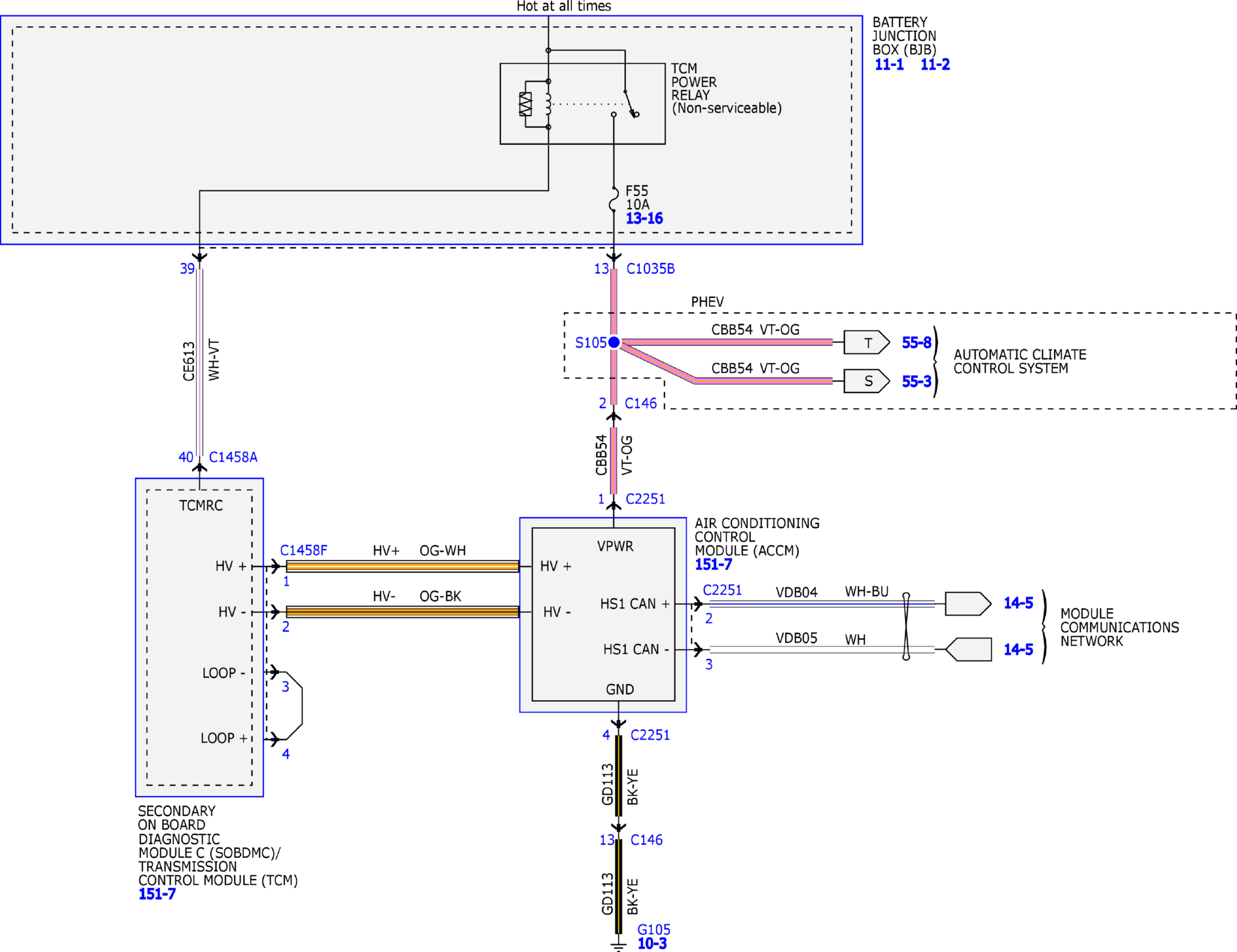

Fig 7: Automatic Climate Control System Wiring Diagram (7 of 9)
GFDW51262Courtesy of FORD MOTOR COMPANY

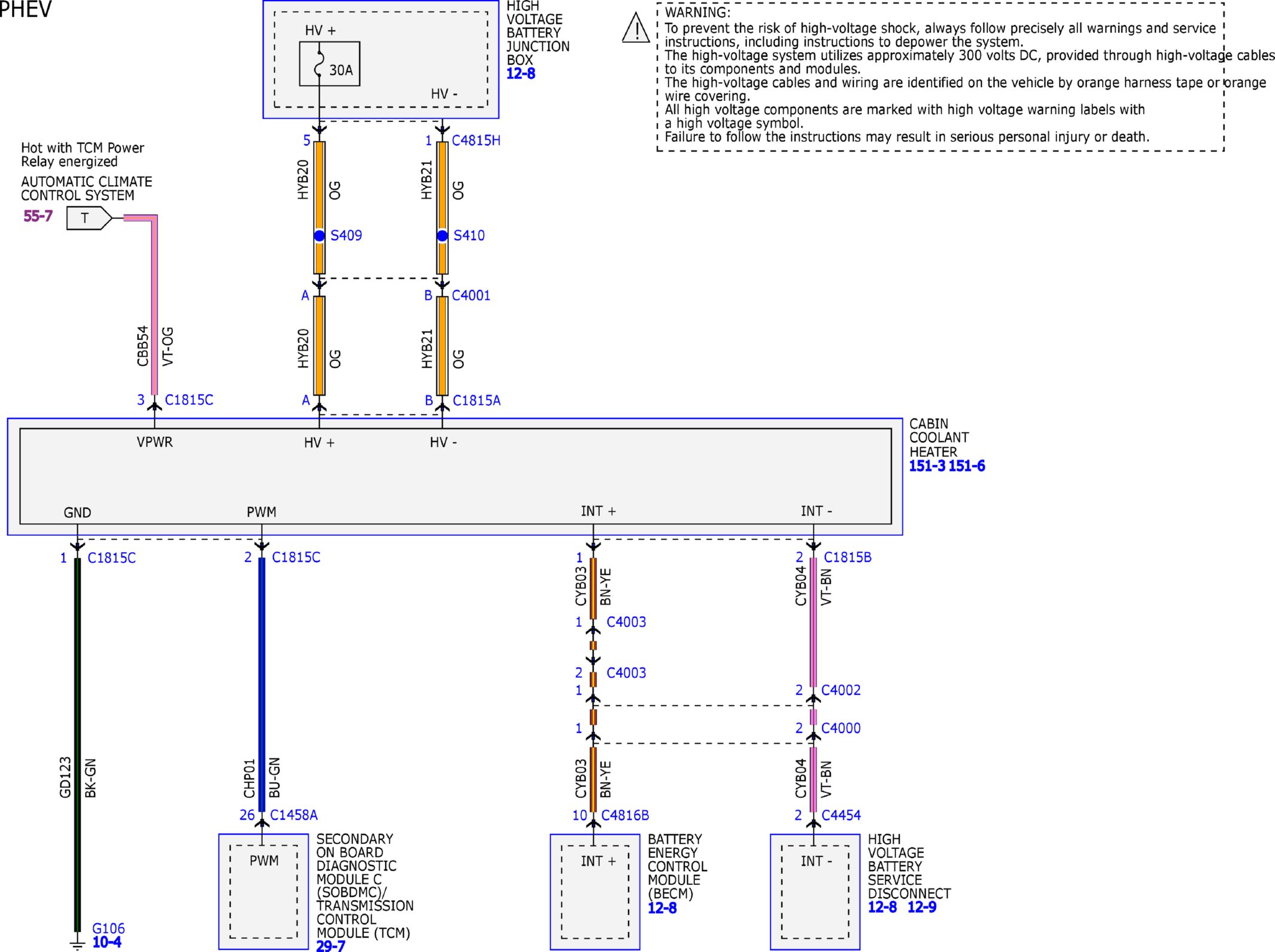

Fig 8: Automatic Climate Control System Wiring Diagram (8 of 9)
GFDW51263Courtesy of FORD MOTOR COMPANY

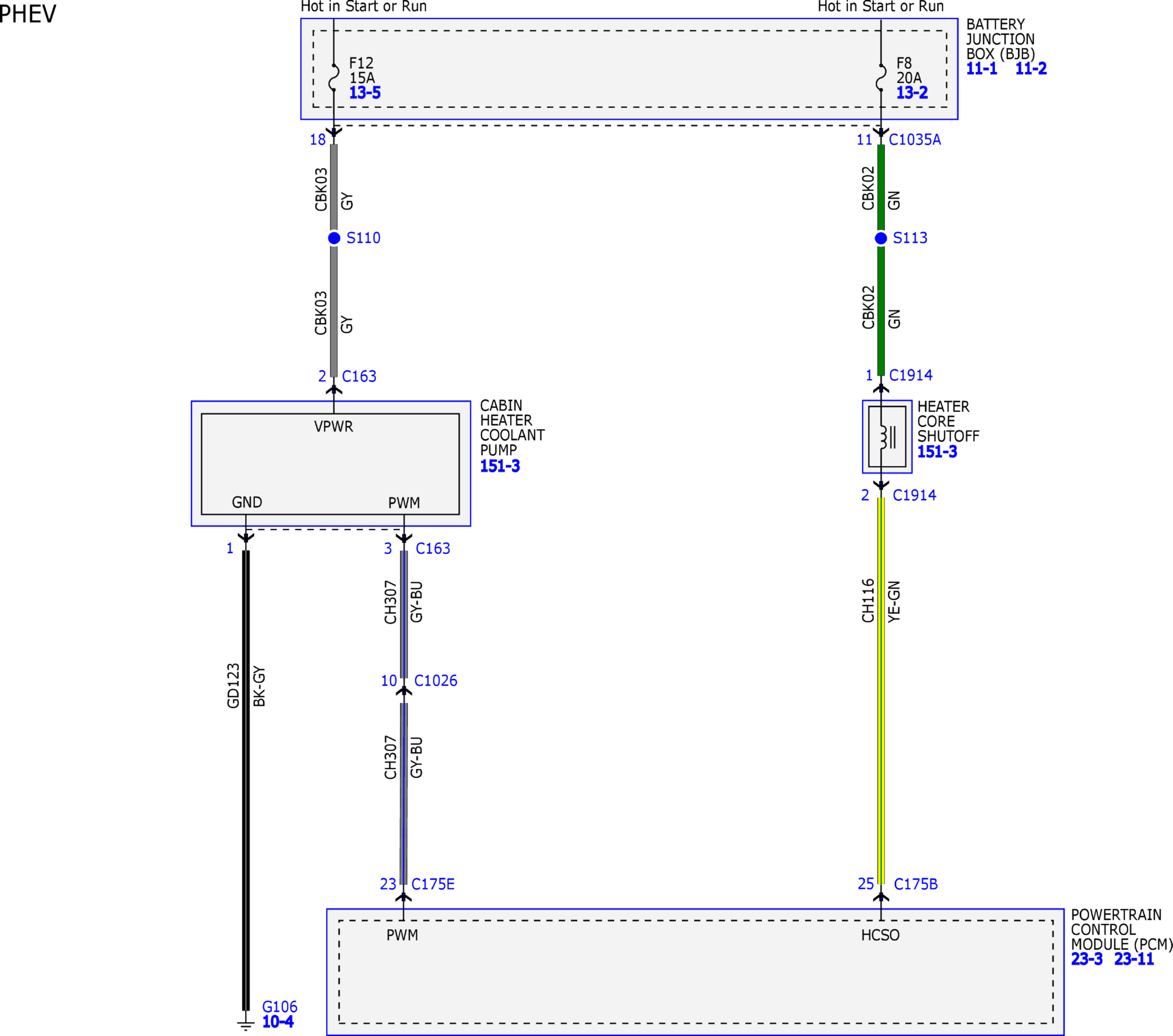

Fig 9: Automatic Climate Control System Wiring Diagram (9 of 9)
GFDW51264Courtesy of FORD MOTOR COMPANY
