Audio System/Navigation - Fusion With SONY

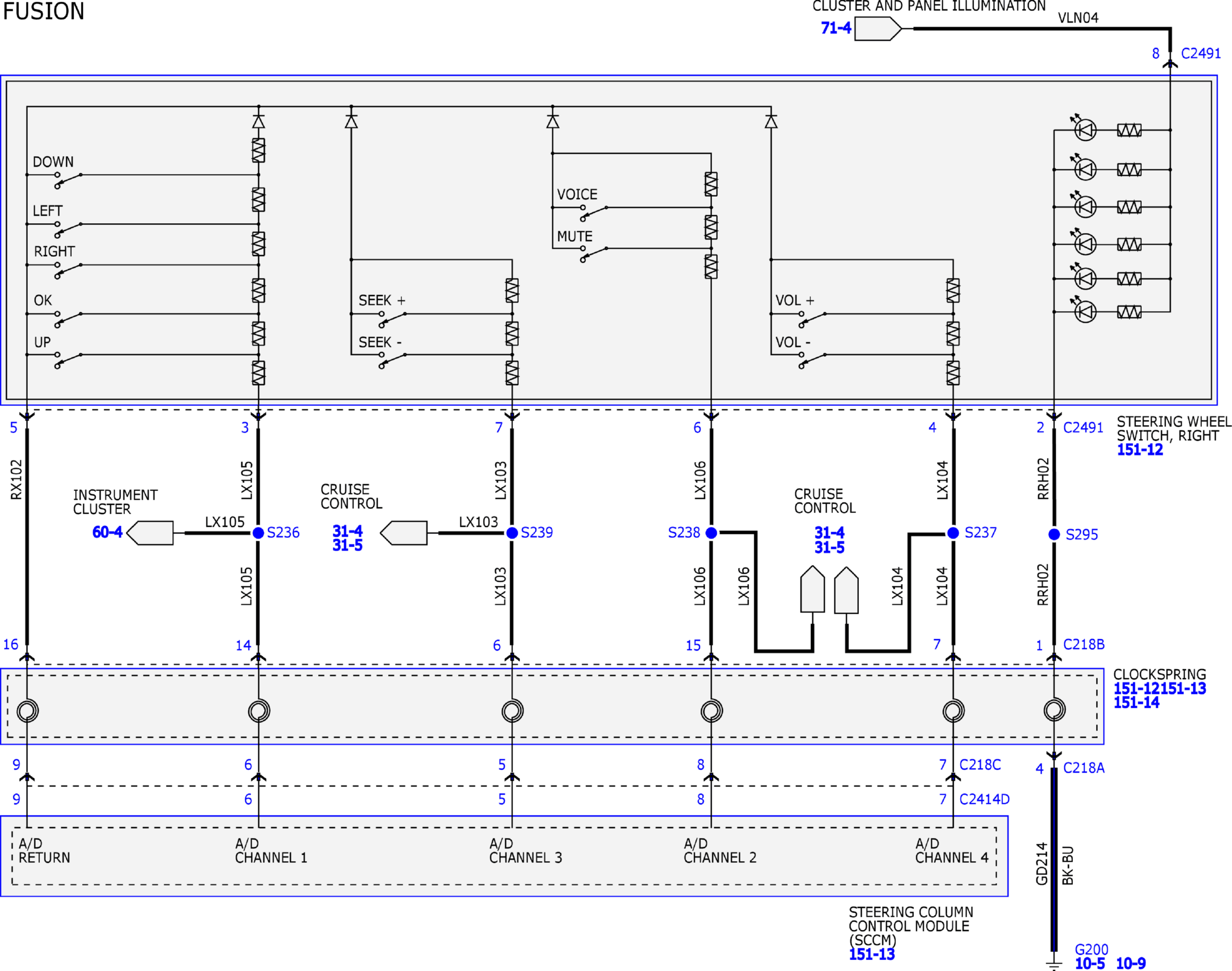

Fig 1: Audio System/Navigation - Fusion With Sony Wiring Diagram (1 of 12)

Courtesy of FORD MOTOR COMPANY

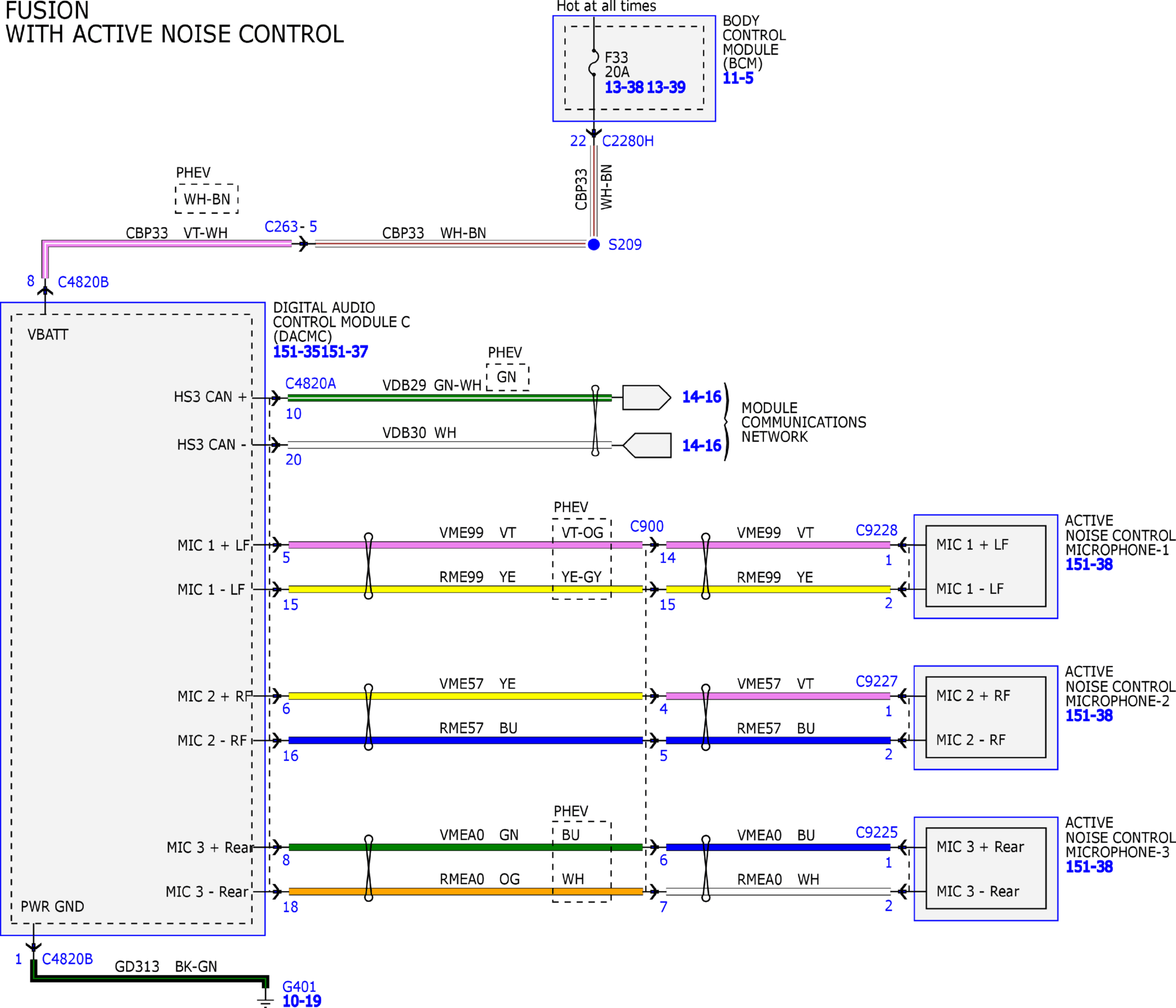

Fig 2: Audio System/Navigation - Fusion With Sony Wiring Diagram (2 of 12)

Courtesy of FORD MOTOR COMPANY

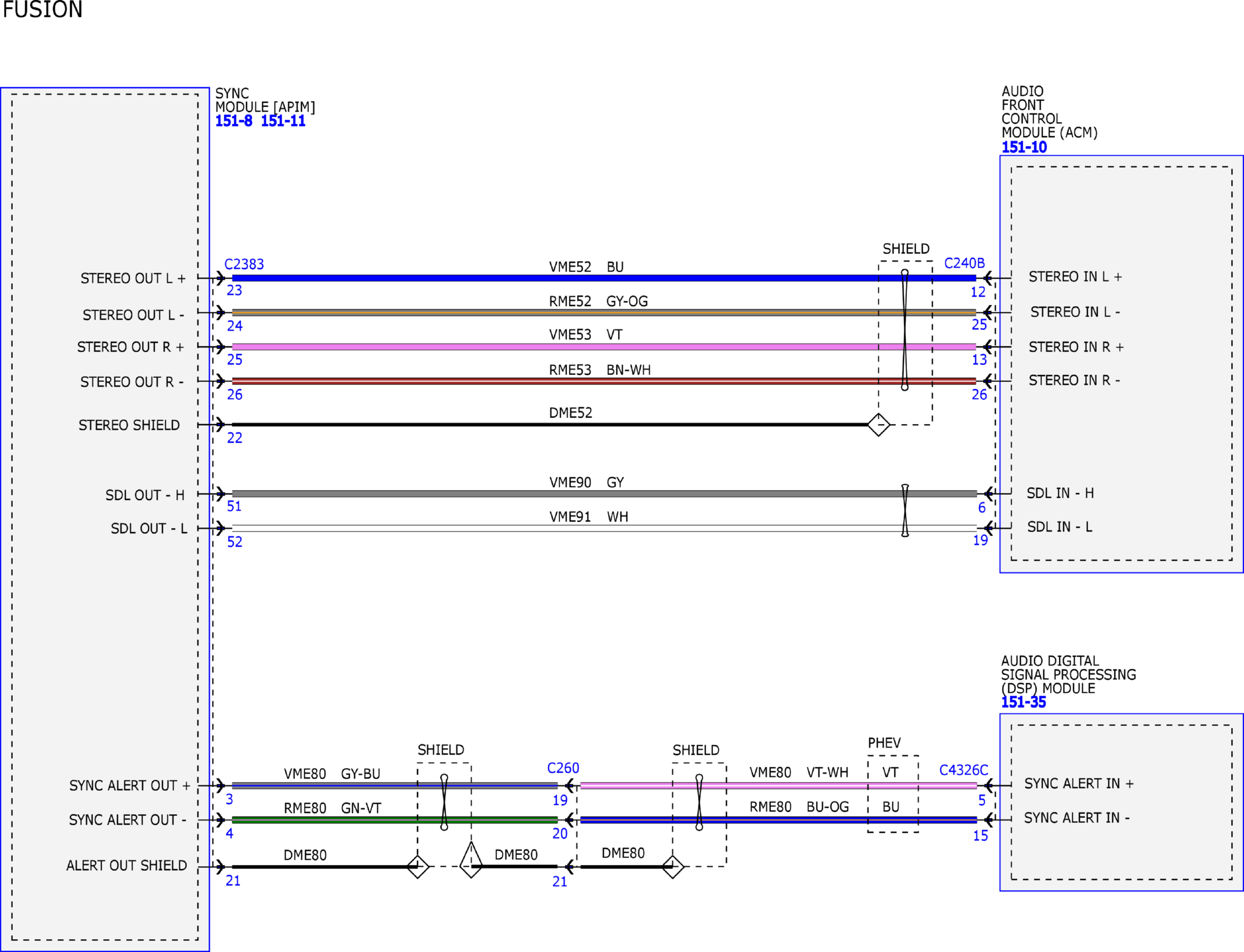

Fig 3: Audio System/Navigation - Fusion With Sony Wiring Diagram (3 of 12)

Courtesy of FORD MOTOR COMPANY

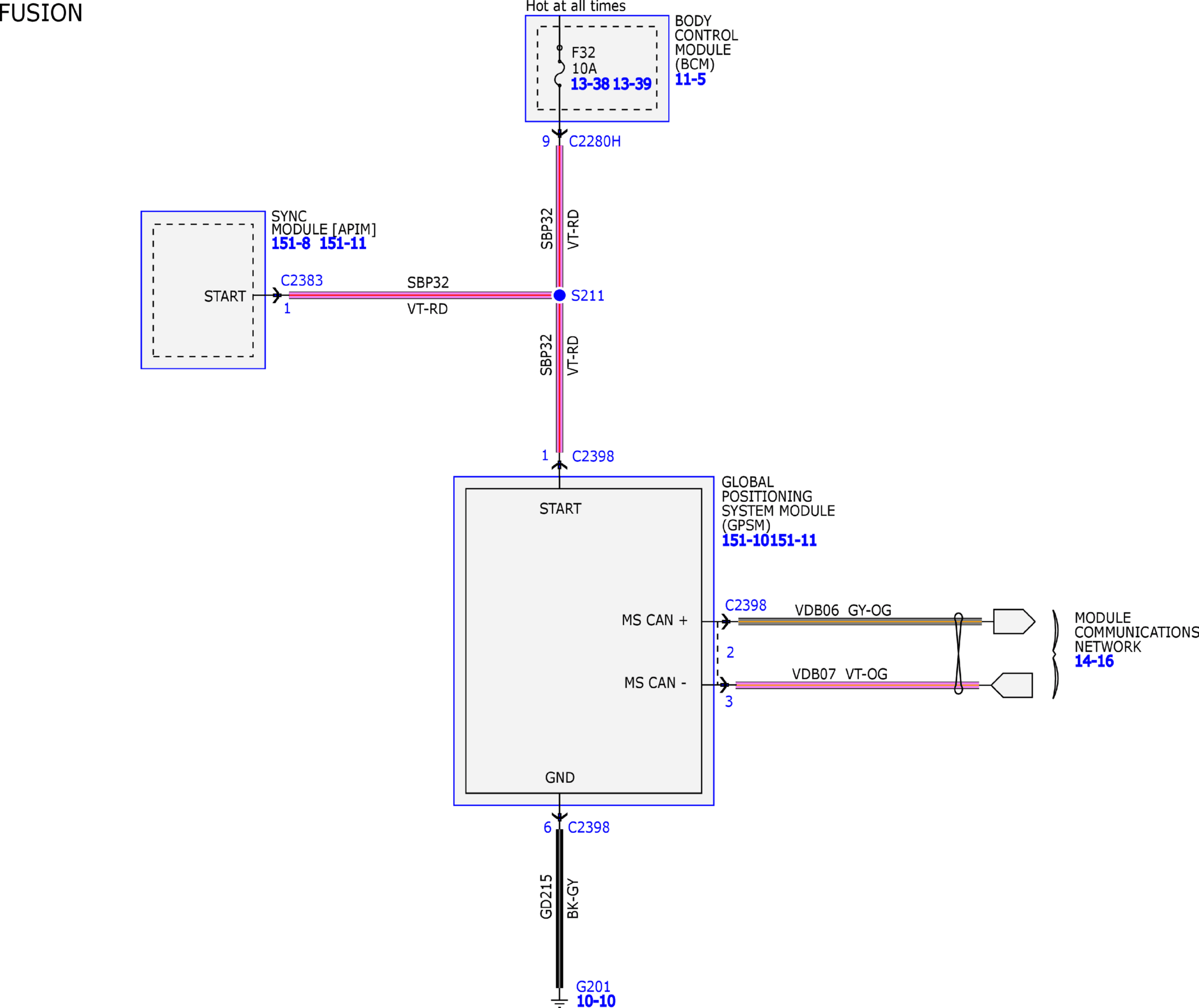

Fig 4: Audio System/Navigation - Fusion With Sony Wiring Diagram (4 of 12)

Courtesy of FORD MOTOR COMPANY

Fig 5: Audio System/Navigation - Fusion With Sony Wiring Diagram (5 of 12)

Courtesy of FORD MOTOR COMPANY

Fig 6: Audio System/Navigation - Fusion With Sony Wiring Diagram (6 of 12)

Courtesy of FORD MOTOR COMPANY

Fig 7: Audio System/Navigation - Fusion With Sony Wiring Diagram (7 of 12)

Courtesy of FORD MOTOR COMPANY

Fig 8: Audio System/Navigation - Fusion With Sony Wiring Diagram (8 of 12)

Courtesy of FORD MOTOR COMPANY

Fig 9: Audio System/Navigation - Fusion With Sony Wiring Diagram (9 of 12)

Courtesy of FORD MOTOR COMPANY

Fig 10: Audio System/Navigation - Fusion With Sony Wiring Diagram (10 of 12)

Courtesy of FORD MOTOR COMPANY

Fig 11: Audio System/Navigation - Fusion With Sony Wiring Diagram (11 of 12)

Courtesy of FORD MOTOR COMPANY

Fig 12: Audio System/Navigation - Fusion With Sony Wiring Diagram (12 of 12)

Courtesy of FORD MOTOR COMPANY
