Adjustable Steering Column

Fig 1: Adjustable Steering Column Wiring Diagram (1 of 4)
GFDW51213Courtesy of FORD MOTOR COMPANY

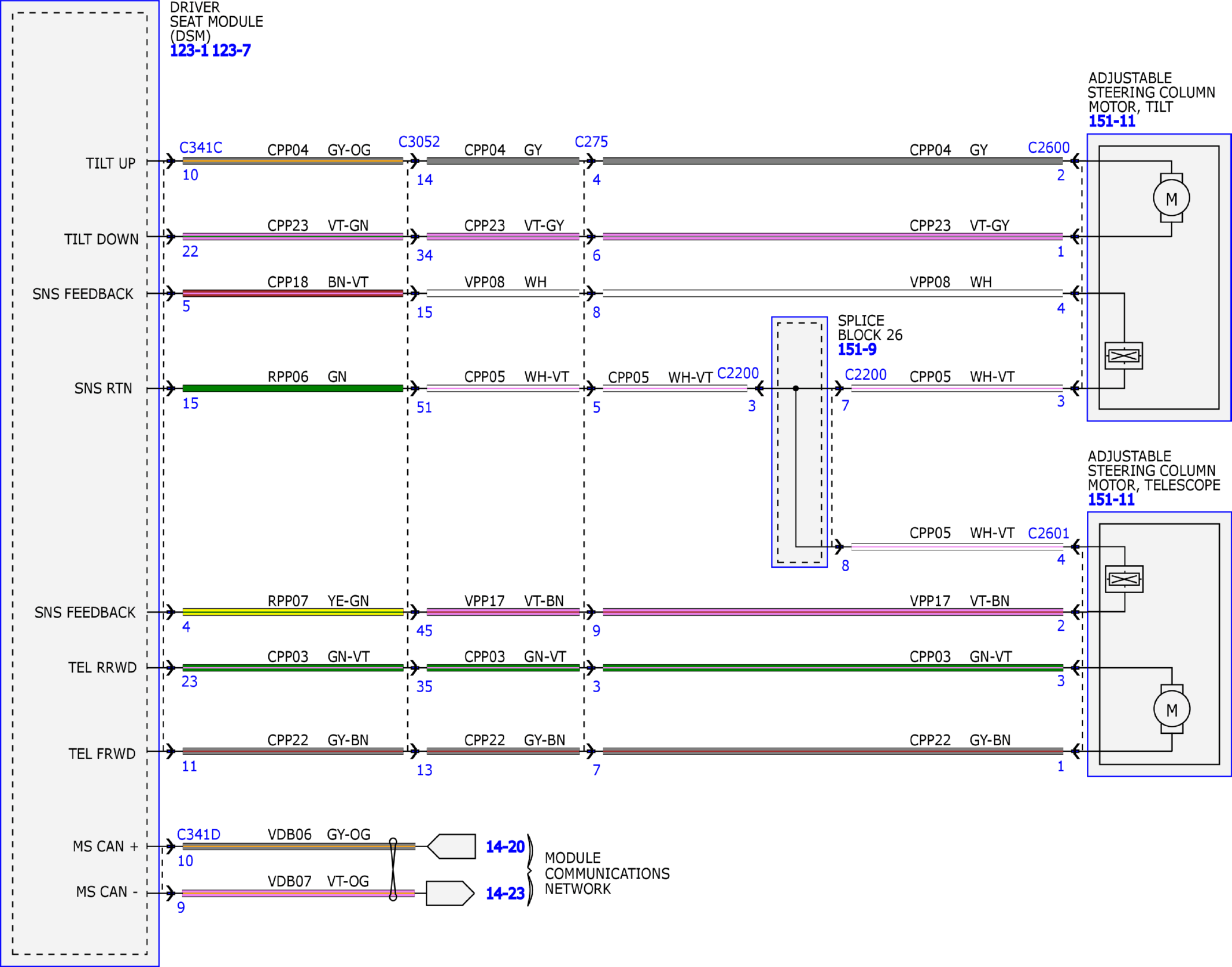

Fig 2: Adjustable Steering Column Wiring Diagram (2 of 4)
GFDW51214Courtesy of FORD MOTOR COMPANY
Fig 3: Adjustable Steering Column Wiring Diagram (3 of 4)
GFDW51215Courtesy of FORD MOTOR COMPANY

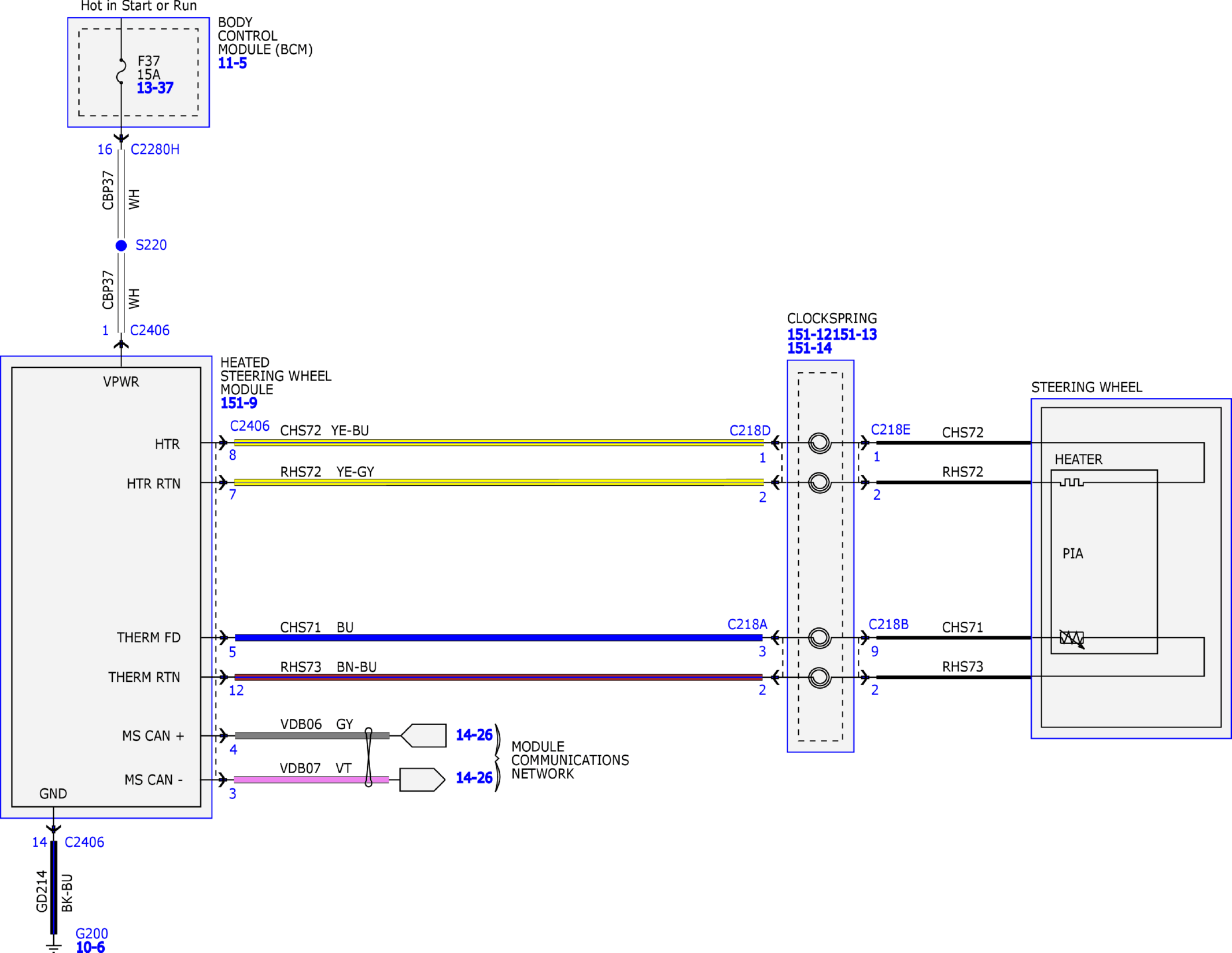

Fig 4: Adjustable Steering Column Wiring Diagram (4 of 4)
GFDW51216Courtesy of FORD MOTOR COMPANY
