Connector End View (C9226) - ACTIVE NOISE CONTROL MICROPHONE
Connector:C9226
Description
ACTIVE NOISE CONTROL MICROPHONE
Color
Harness
14335/17C712
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | VME96 (GN-WH) | 22 | CTRL MOD. - AUDIO # SPEAKER CENTER FRONT TWEETER + | |
| 2 | * | * | Not Used | |
| 3 | RME96 (GY-VT) | 22 | CTRL MOD. - AUDIO # SPEAKER CENTER FRONT TWEETER - |
| Available Pigtail Kits | |

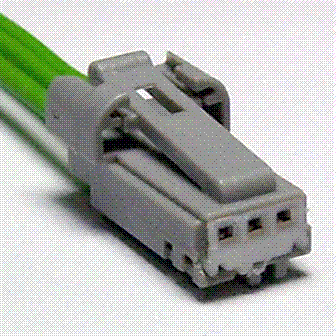

| Pigtail Kit Part Number WPT-1182 |
Service Part Number: BU2Z-14S411-AFA Gauge: 18 Pin material: Silver Cavities: 3 Vehicle Uses Microphone |
