Fusion Energi Titanium
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Component Harness Location Charts (Hybrid/ENERGI)
>>
Component Location Charts
>>
Splice Block 15 (Fusion)
Splice Block 15 (Fusion)

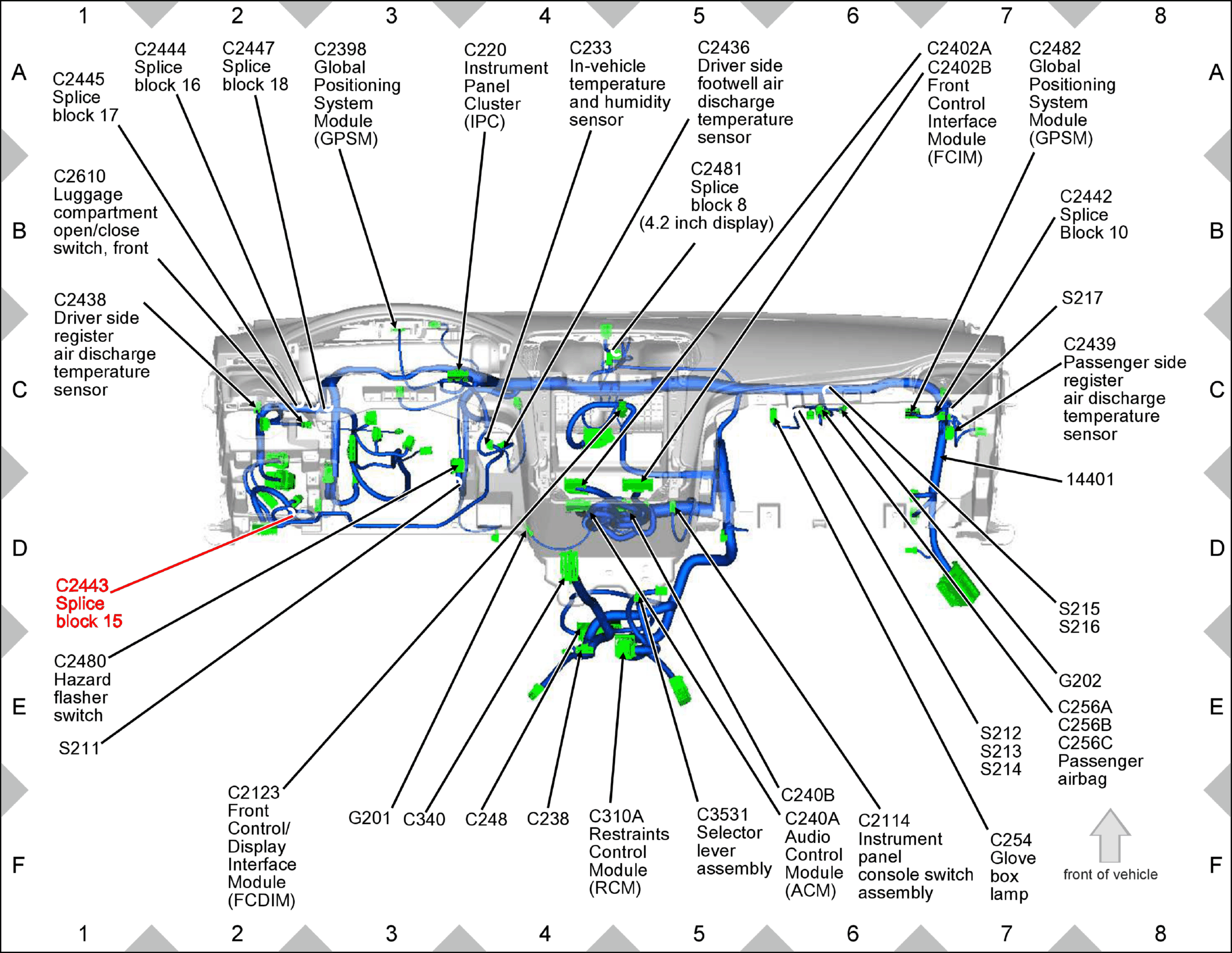

Fig 1: Splice Block 15 (Fusion) Component Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
