Heated Seat Switch, Rear Seat (Fusion)

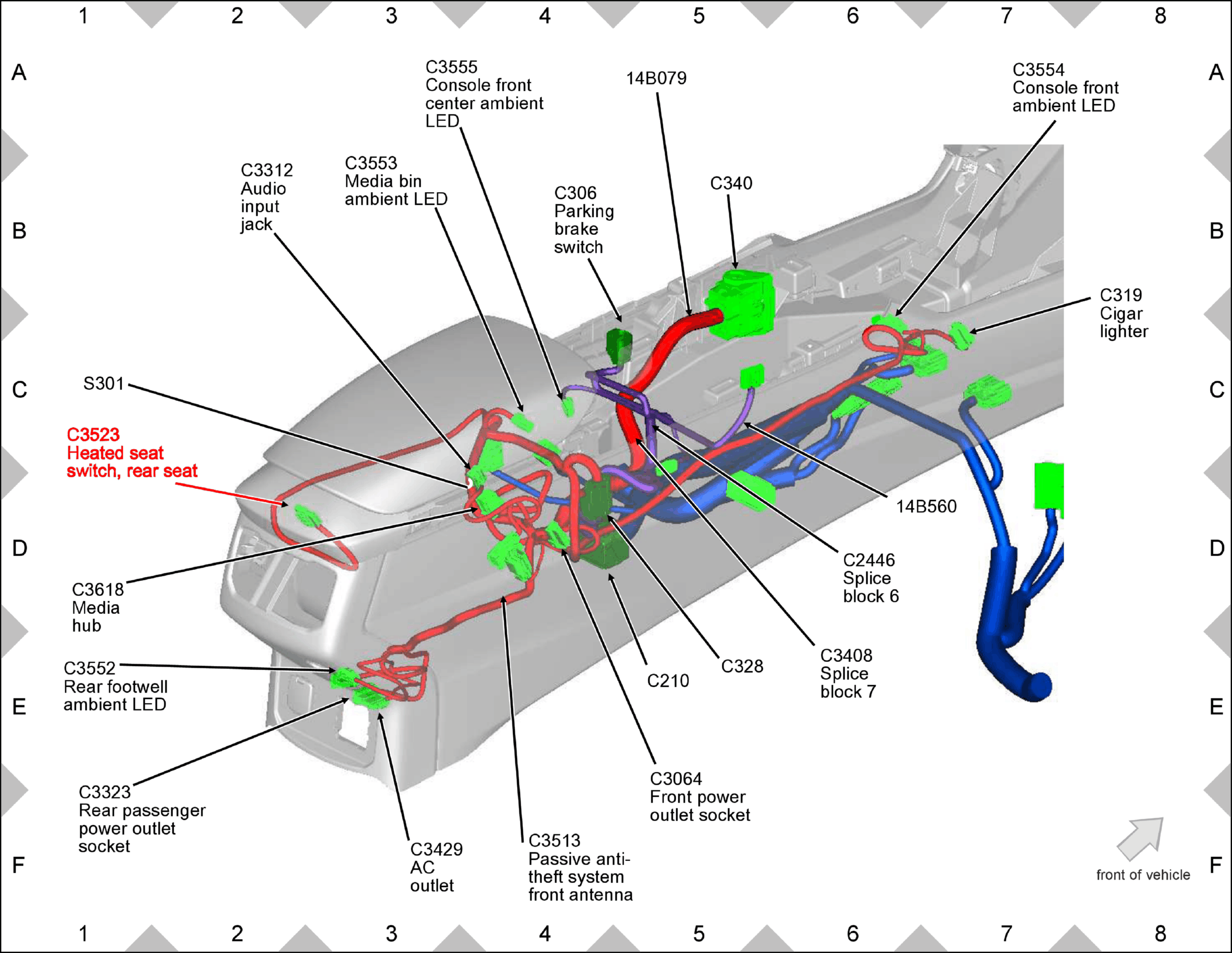

Fig 1: Heated Seat Switch, Rear Seat (Fusion) Component Location

GFDW51709

Courtesy of FORD MOTOR COMPANY
