OEM Component Harness Location Charts (Hybrid/ENERGI)
>>
Component Location Charts
>>
Air Distribution Door Actuator
Air Distribution Door Actuator

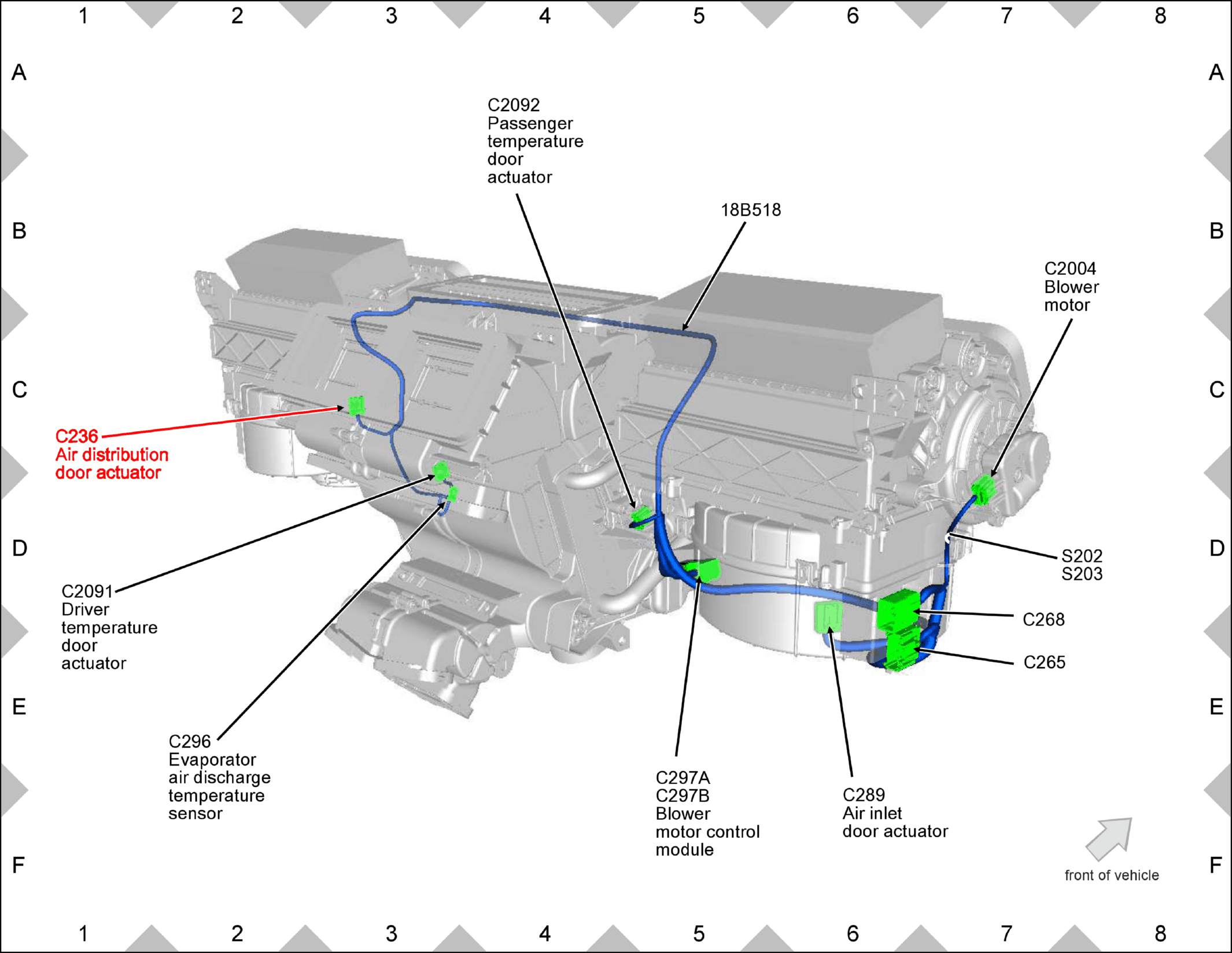

Fig 1: Air Distribution Door Actuator Component Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
