Brake System Pressure Bleeding

Special Tool(s) / General Equipment

Brake/Clutch System Pressure Bleeder/Filler
Fluid Container

Bleeding

All vehicles

NOTE: If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.

NOTE: The HCU bleeding procedure and a second brake system pressure bleed must be carried out if a new HCU has been installed.

1.

NOTE: Make sure the area around the master cylinder cap is clean and free of foreign material.

Remove the brake fluid reservoir cap.

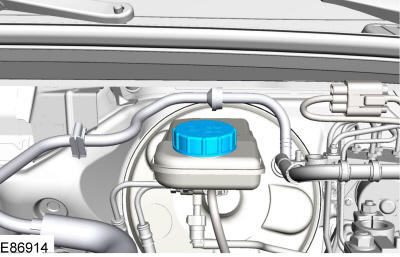

GFD70583

Courtesy of FORD MOTOR COMPANY

2.

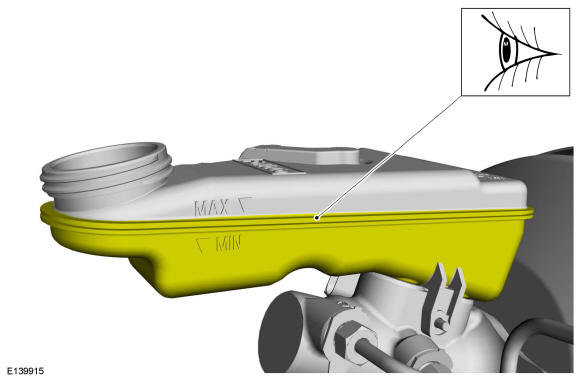

Make sure the fluid reservoir is filled with clean specified brake fluid. Refer to: Specifications .

GFD70584

Courtesy of FORD MOTOR COMPANY

3.
- 1.

  NOTE: Master cylinder pressure bleeder adapter tools are available from various manufacturers of pressure bleeding equipment. Follow the instructions of the manufacturer when installing the adapter.

  Install the bleeder adapter to the brake master cylinder reservoir and attach the bleeder tank hose to the fitting on the adapter. Use the General Equipment: Brake/Clutch System Pressure Bleeder/Filler
- 2.

  NOTE: Make sure the bleeder tank contains enough clean, specified brake fluid to complete the bleeding operation.

  Open the valve on the bleeder tank and apply 207-345 kPa (30-50 psi) to the brake system.

4.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

5.

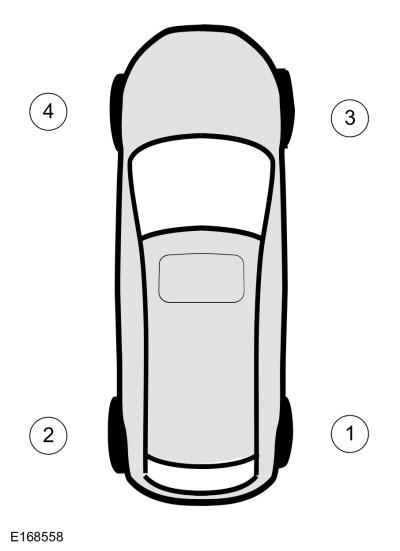

Bleeding steps must be followed in the order indicated in the graphic.

GFD70585

Courtesy of FORD MOTOR COMPANY

6.

If equipped, remove the bleeder screw cap.

GFD70586

Courtesy of FORD MOTOR COMPANY

7.

Partially fill a clean brake fluid container with clean specified brake fluid. Refer to: Specifications . Use the General Equipment: Fluid Container

GFD70587

Courtesy of FORD MOTOR COMPANY

8.

Submerge a hose into the brake fluid in the container and connect the hose to bleeder screw.

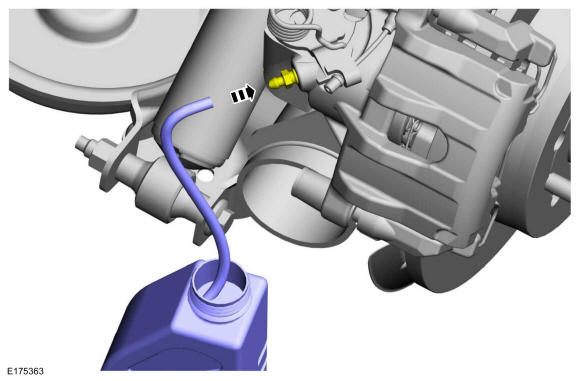

GFD70588

Courtesy of FORD MOTOR COMPANY

9.
- 1.

  Loosen the bleeder screw. Loosen: : 180 °
- 2.

  Leave open until clear, bubble-free brake fluid flows, then tighten the bleeder screw.

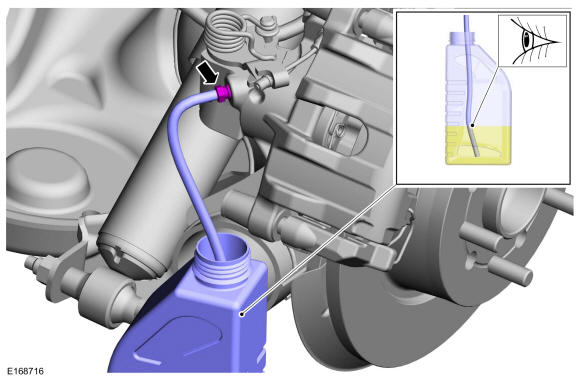

GFD70589

Courtesy of FORD MOTOR COMPANY

Vehicles with rear integral parking brake calipers

10.

NOTE: Due to the complexity of the fluid path within the rear integral parking brake calipers, it is necessary to apply and release the parking brake during the bleed procedure.
- 1.

  Apply and release the parking brake 5 times.
- 2.

  Loosen the bleeder screw. Loosen: 180 °
- 3.

  Leave open until clear, bubble-free fluid flows and then tighten the bleeder screw.
- 4.

  Repeat as necessary.

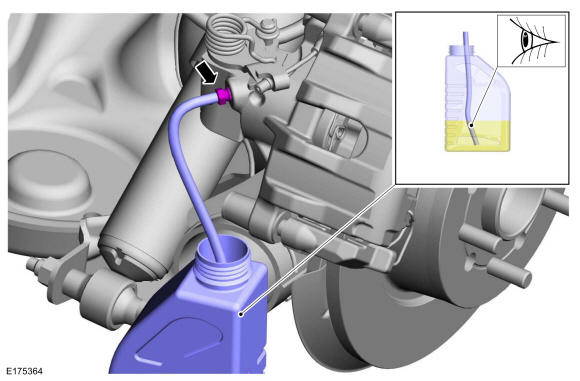

GFD70590

Courtesy of FORD MOTOR COMPANY

All vehicles

11.
- 1.

  Tighten the bleeder screw to specification and remove the hose and brake fluid container. Refer to: Specifications .

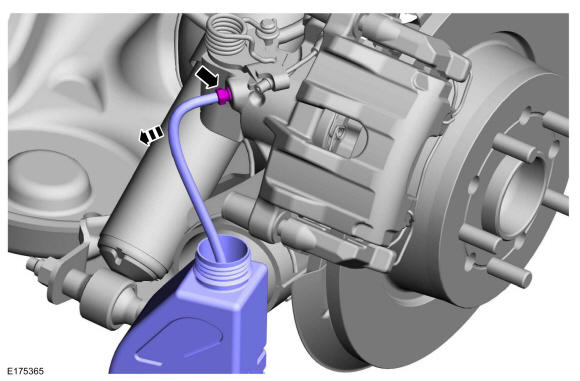

GFD70591

Courtesy of FORD MOTOR COMPANY

12.

If equipped, install the bleeder screw cap.

GFD70586

Courtesy of FORD MOTOR COMPANY

13.

Repeat steps 5-12 at the remaining wheel ends.

14.

Lower the vehicle.

15.

Close the bleeder tank valve and release the pressure. Remove the General Equipment: Brake/Clutch System Pressure Bleeder/Filler

16.

Fill the reservoir with clean, specified brake fluid. Refer to: Specifications .

GFD70584

Courtesy of FORD MOTOR COMPANY

17.

Install the brake fluid reservoir cap.

GFD70583

Courtesy of FORD MOTOR COMPANY

18.

Following the diagnostic scan tool instructions, carry out the Multi-Calibration routine.

Vehicles with new hydraulic control unit (HCU) installed

19.

Using the diagnostic scan tool, follow the ABS Service Bleed instructions.

20.

Repeat brake system pressure bleeding steps.
