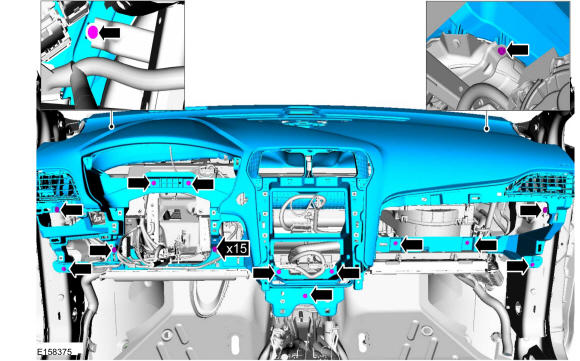

Instrument Panel Upper Section: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- 1.WARNING: Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.
Refer to: Health and Safety Precautions .
- 2.NOTE: The instrument panel must be removed from the vehicle prior to removing the instrument panel upper section.
Remove the instrument panel. Refer to: Instrument Panel .
- 4.
Remove the steering column. Refer to: Steering Column .
- 5.

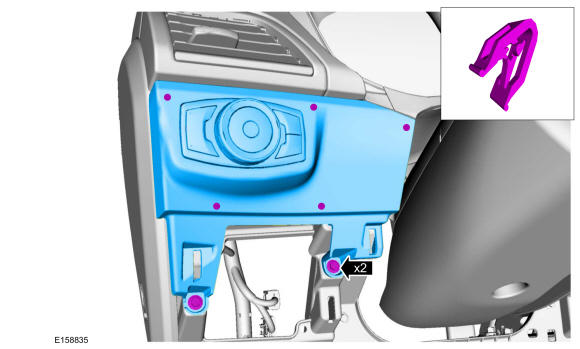

Remove the bolts, release the clips and lower the instrument panel trim panel.Torque: 22 lb.in (2.5 Nm)
- 10.
Remove the FCDIM or the FDIM. Refer to: Front Control/Display Interface Module (FCDIM) - Vehicles With: SYNC . Refer to: Front Display Interface Module (FDIM) - Vehicles With: SYNC 2/Touchscreen Display . Refer to: Front Display Interface Module (FDIM) - Vehicles With: Sony Audio System .
- 11.

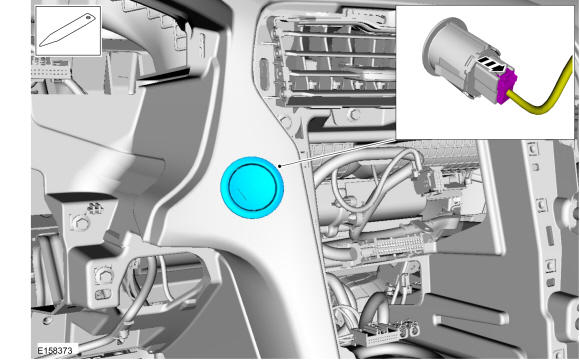

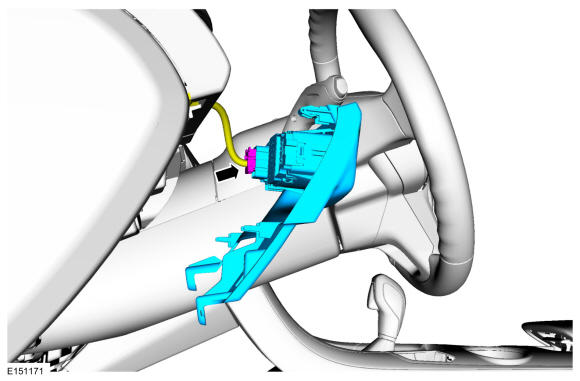

If equipped. Remove the engine start stop button and disconnect the electrical connector. Use the General Equipment: Interior Trim Remover
- 12.
Remove the ACM. Refer to: Audio Front Control Module (ACM) - Vehicles With: SYNC . Refer to: Audio Front Control Module (ACM) - Vehicles With: SYNC 2/Touchscreen Display . Refer to: Audio Front Control Module (ACM) - Vehicles With: Sony Audio System .
- 13.

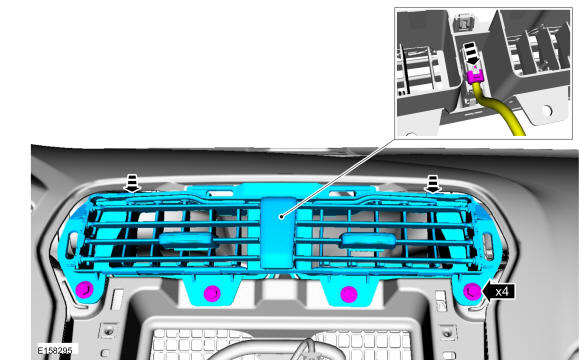

Remove the bolts and the center register. Disconnect the electrical connector.Torque: 22 lb.in (2.5 Nm)
- 14.

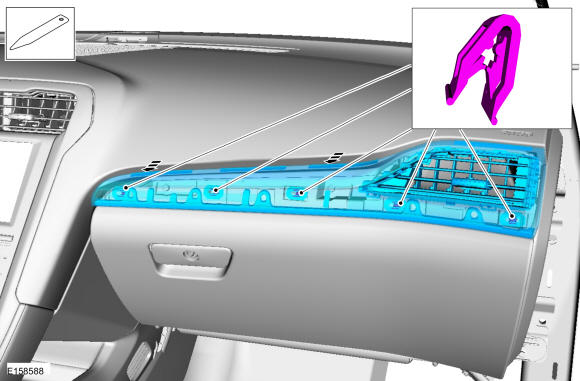

Release the clips and remove the RH instrument panel finish panel. Use the General Equipment: Interior Trim Remover
- 15.

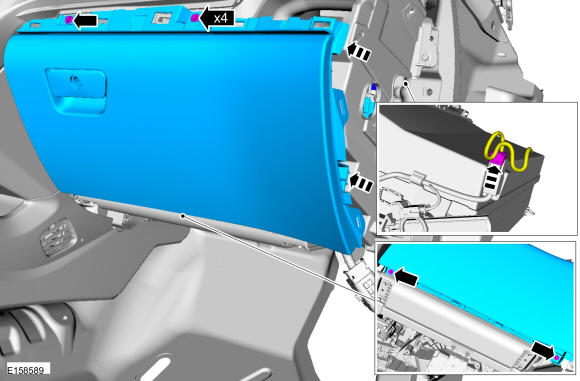

Remove the bolts, release the retaining tabs and remove the glove compartment. Disconnect the electrical connector.Torque: 22 lb.in (2.5 Nm)
- 16.

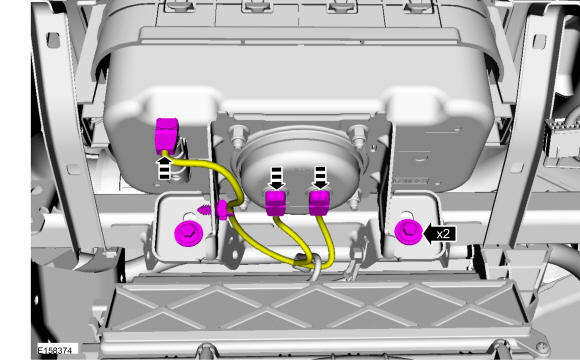

Remove the bolts, disconnect the electrical connectors, release the harness retainer and position aside harness.Torque: 93 lb.in (10.5 Nm)
- 17.
If equipped, remove the instrument panel center speaker. Refer to: Instrument Panel Center Speaker .
- 18.

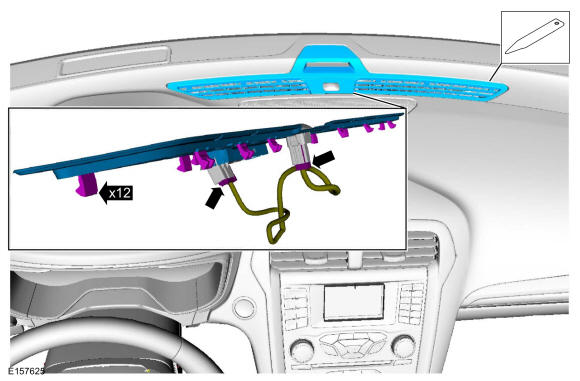

Release the clips and remove the defroster grille panel. Disconnect the electrical connectors. Use the General Equipment: Interior Trim Remover
- 19.
Remove the HUD module. Refer to: Head Up Display (HUD) Module .
- 21.

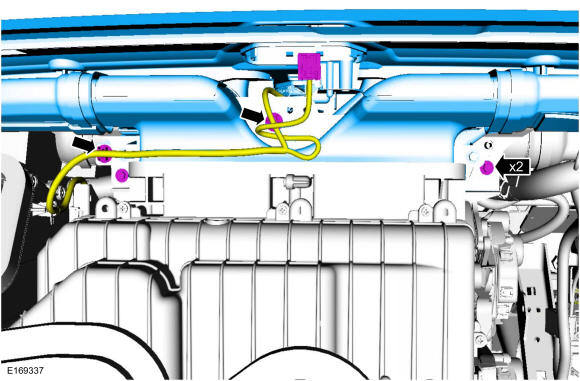

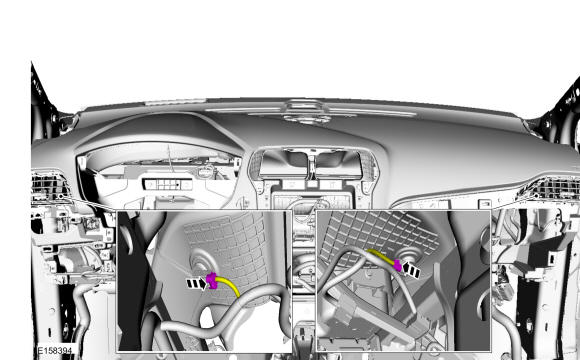

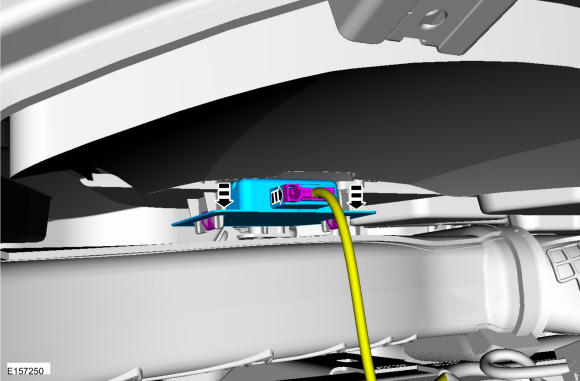

Remove the bolts, disconnect the electrical connector and release wiring harness retainers. Remove the HVAC duct.
