Wheel Cylinder: Removal
NOTE:
Do not spill brake fluid on painted or plastic surfaces or damage to the surface may occur. If brake fluid is spilled onto a painted or plastic surface, immediately wash the surface with water.
NOTE:
Removal steps in this procedure may include installation details.
- 1.WARNING: Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.
Refer to: Health and Safety Precautions .
- 2.
Remove the brake drum. Refer to: Brake Drum .
- 3.

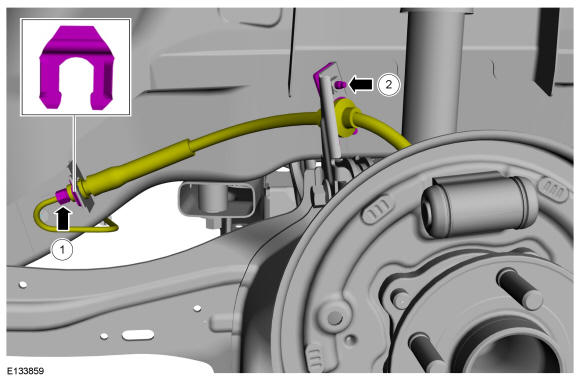

- 1.
Disconnect the brake tube fiting and remove the clip.Torque: 133 lb.in (15 Nm)
- 2.
Remove the bolt and position aside the brake flexible hose.Torque: 106 lb.in (12 Nm)
- 1.

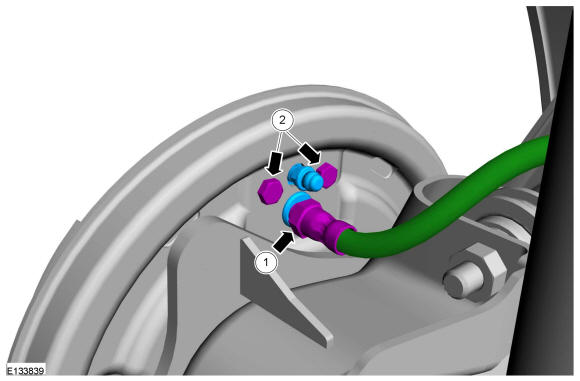

- 4.
- 1.
Disconnect and remove the brake hose.Torque: 17 lb.ft (23 Nm)
- 2.
Remove the bolts and the wheel cylinder.Torque: 106 lb.in (12 Nm)
- 1.
