Brake Backing Plate: Removal

1.

Remove the brake shoes. Refer to: Brake Shoes .

2.

Remove the wheel cylinder. Refer to: Wheel Cylinder .

3.

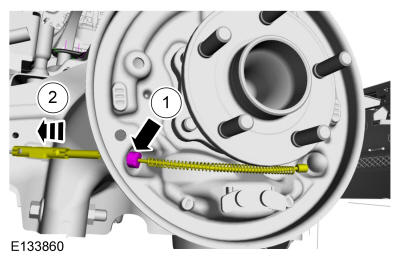

Press inward on the tabs and detach the parking brake cable from backing plate.

GFD60605

Courtesy of FORD MOTOR COMPANY

4.

Remove the wheel bearing and wheel hub. Refer to: Wheel Bearing and Wheel Hub .

5.

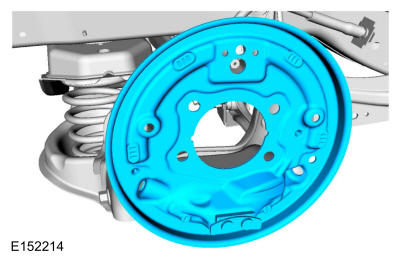

Remove the brake backing plate.

GFD60606

Courtesy of FORD MOTOR COMPANY
