Overhead Console: Removal

NOTE: Removal steps in this procedure may contain installation details.

1.

WARNING: Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.

Refer to: Health and Safety Precautions .

2.

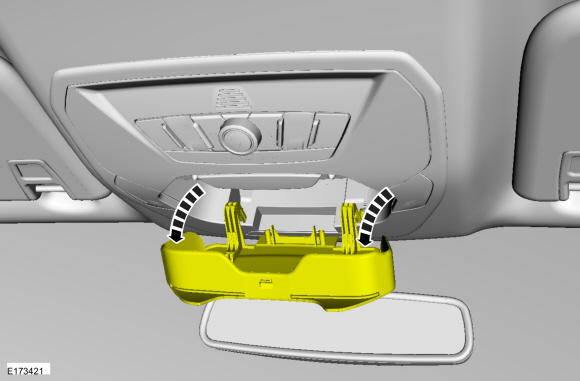

Open the sun glasses bin.

GFD64105

Courtesy of FORD MOTOR COMPANY

3.

NOTE: Sun glasses bin shown removed for clarity.

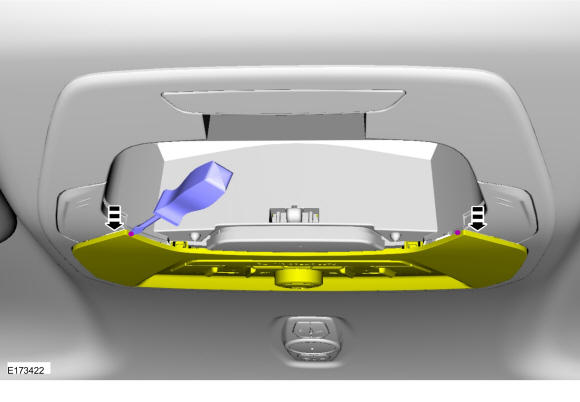

Using a screwdriver, pry both corners of the switch bezel down. Use the General Equipment: Flat Headed Screw Driver

GFD64106

Courtesy of FORD MOTOR COMPANY

4.

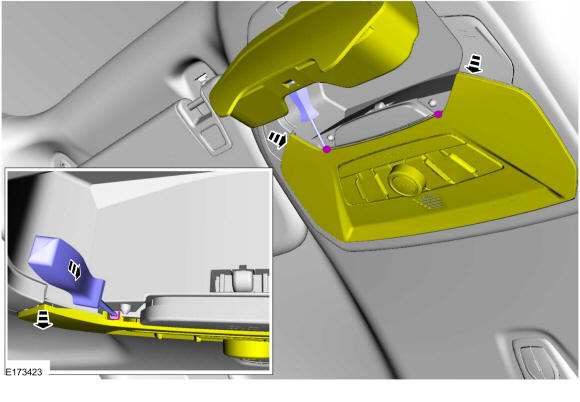

Using a screwdriver, push inward on both sides on the switch panel inner tabs to release the switch panel. Use the General Equipment: Flat Headed Screw Driver

GFD64107

Courtesy of FORD MOTOR COMPANY

5.

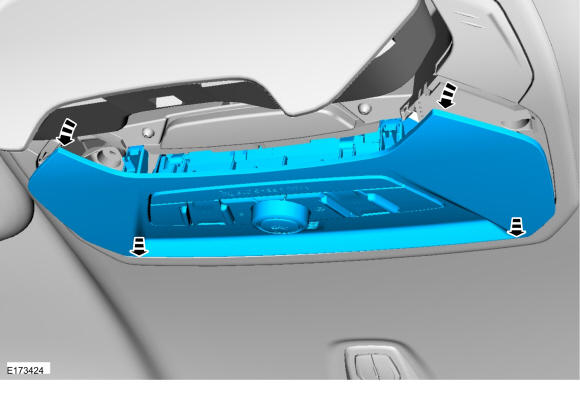

Remove the switch panel.

GFD64108

Courtesy of FORD MOTOR COMPANY

6.

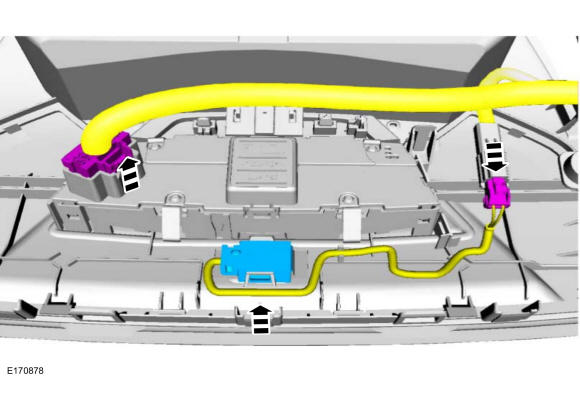

Disconnect the electrical connectors and remove the microphone.

GFD64109

Courtesy of FORD MOTOR COMPANY

7.

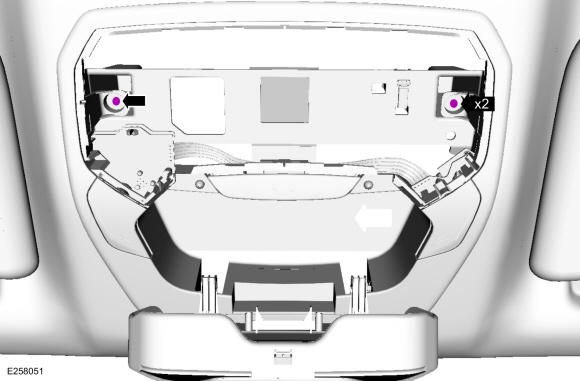

If equipped. Remove the torx screws.

GFD121119

Courtesy of FORD MOTOR COMPANY

8.

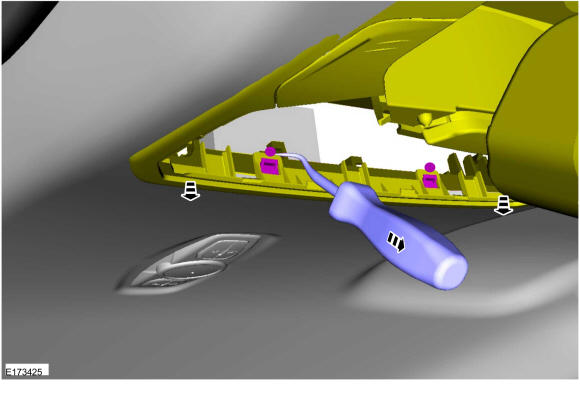

Using a suitable tool release the snap tabs facing the rear of vehicle on both sides.

GFD64111

Courtesy of FORD MOTOR COMPANY

9.

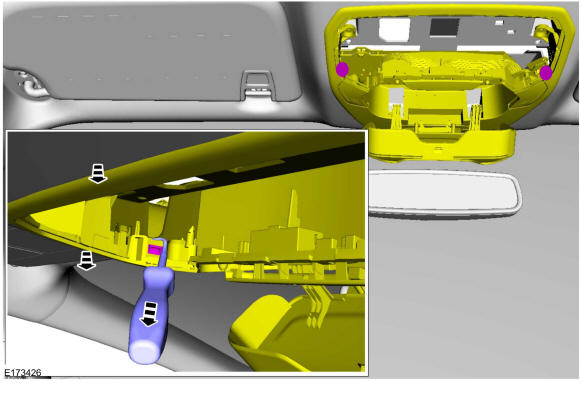

Using a suitable tool release the side snap tabs on both sides.

GFD64112

Courtesy of FORD MOTOR COMPANY

10.

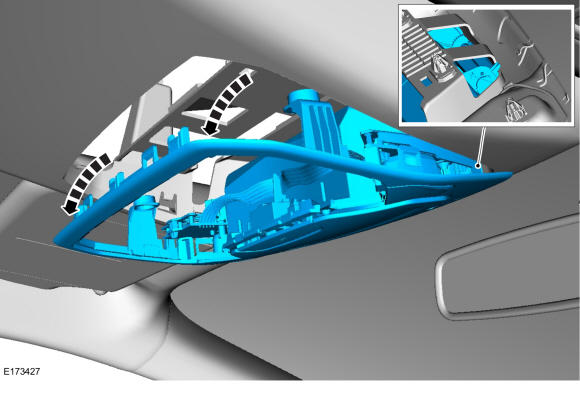

Rotate the overhead console assembly downward and pull rearward to release the clip tabs and remove the overhead console assembly.

GFD64113

Courtesy of FORD MOTOR COMPANY

11.

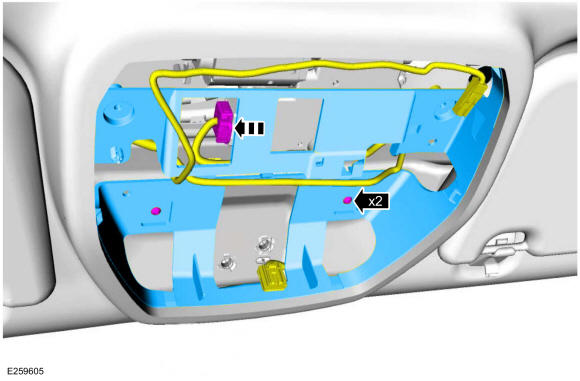

Remove the screws, detach the electrical harness pushpins and remove the overhead console bracket.
- Disconnect the electrical connector.

GFD121120
