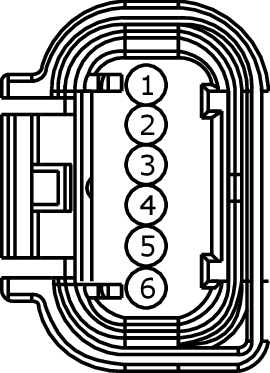

Connector End View (C4357) - VIDEO CAMERA
Connector:C4357
Description
VIDEO CAMERA
Color
BK
Harness
14D466/17N400
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CMP10 (WH) | 20 | FUSE OR CIRCUIT BREAKER | |
| 2 | VMP35 (WH-BU) | 22 | CTRL MOD. - IMAGE PROCESSING MODULE B LIN BUS | |
| 3 | RMP31 (GN) | 20 | REAR VIEW CAMERA RETURN | |
| 4 | VMP31 (BU) | 20 | REAR VIEW CAMERA SIGNAL | |
| 5 | GM100 (BK) | 20 | GROUND | |
| 6 | DMP31 (*) | 20 | REAR VIEW CAMERA SHIELD |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1280 |
Service Part Number: CU2Z-14S411-AEA Gauge: 20 Pin material: Silver Cavities: 6 Vehicle Uses Camera - Reverse Park Aid |
