Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Component Harness Location Charts (Except Electric Vehicle)
>>
Component Location Charts
>>
Turbocharger (TC) Wastegate Regulating Valve Solenoid (GTDI) Component Location
Turbocharger (TC) Wastegate Regulating Valve Solenoid (GTDI) Component Location

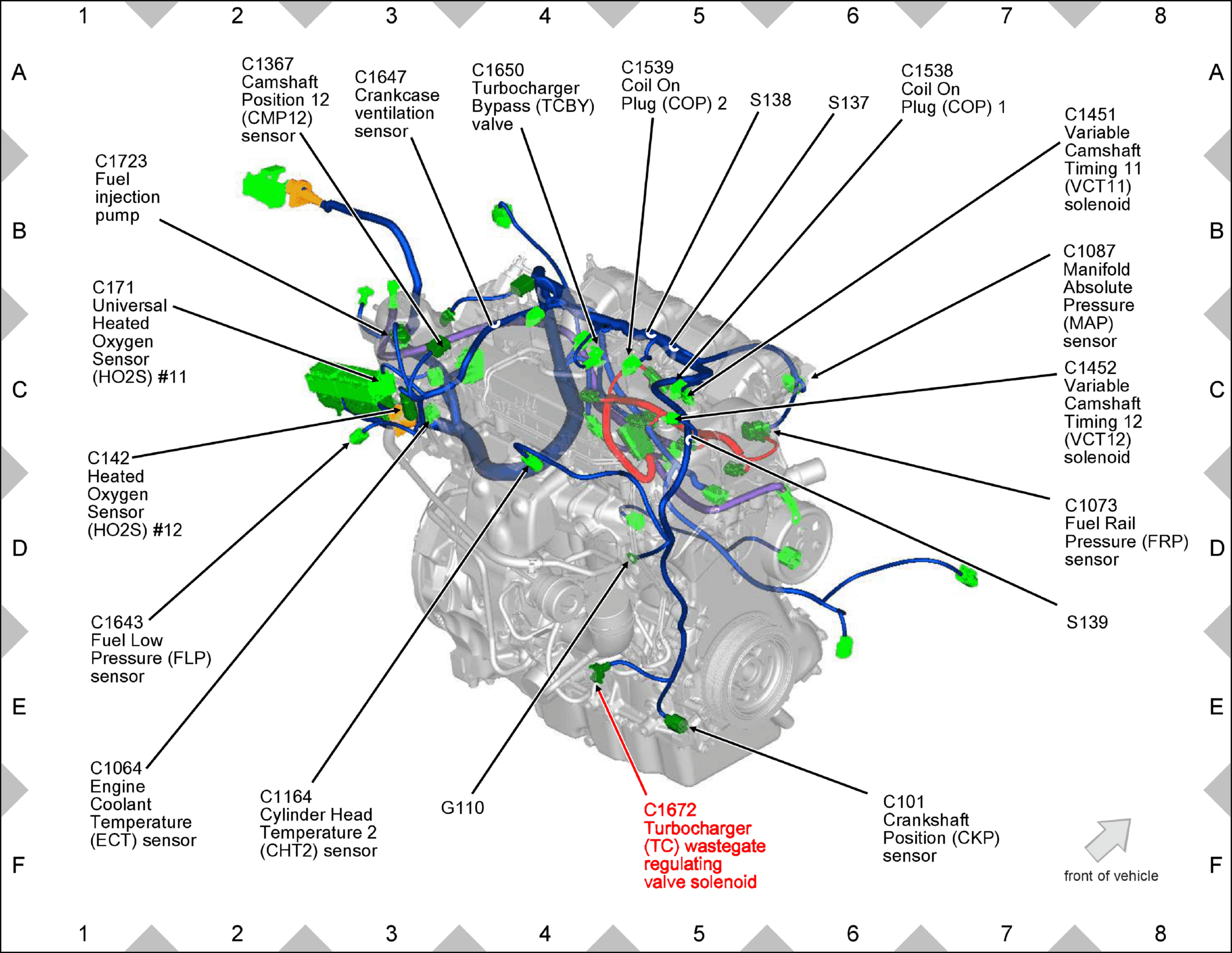

Fig 1: Turbocharger (TC) Wastegate Regulating Valve Solenoid (GTDI) Component Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
