Transmission Fluid Pump (1.0L FOX) Component Location

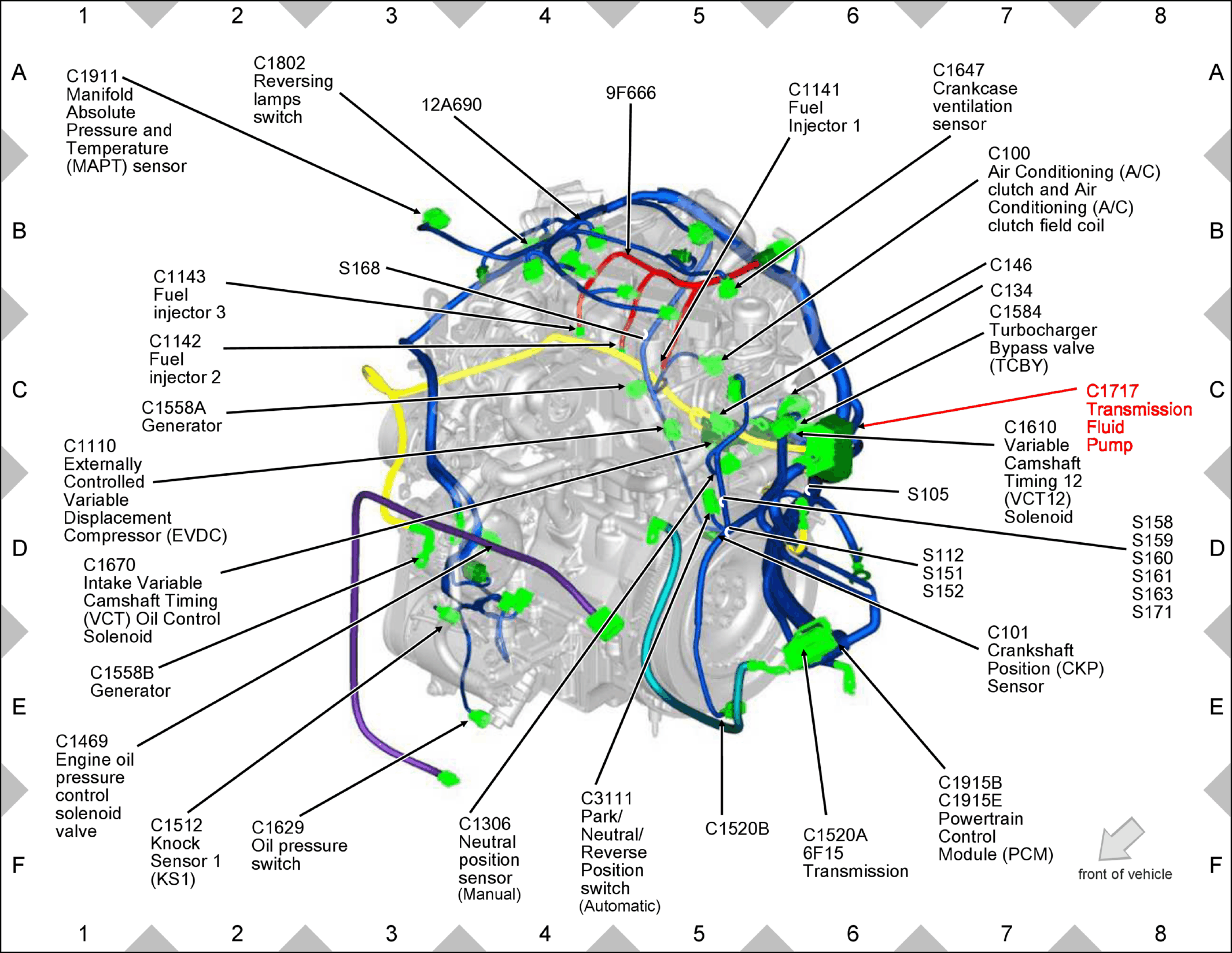

Fig 1: Transmission Fluid Pump (1.0L FOX) Component Location

GFDW52456

Courtesy of FORD MOTOR COMPANY
