Transmission Control Module (TCM) (Automatic Transmission) Component Location
Transmission Control Module (TCM) (Automatic Transmission) Component Location

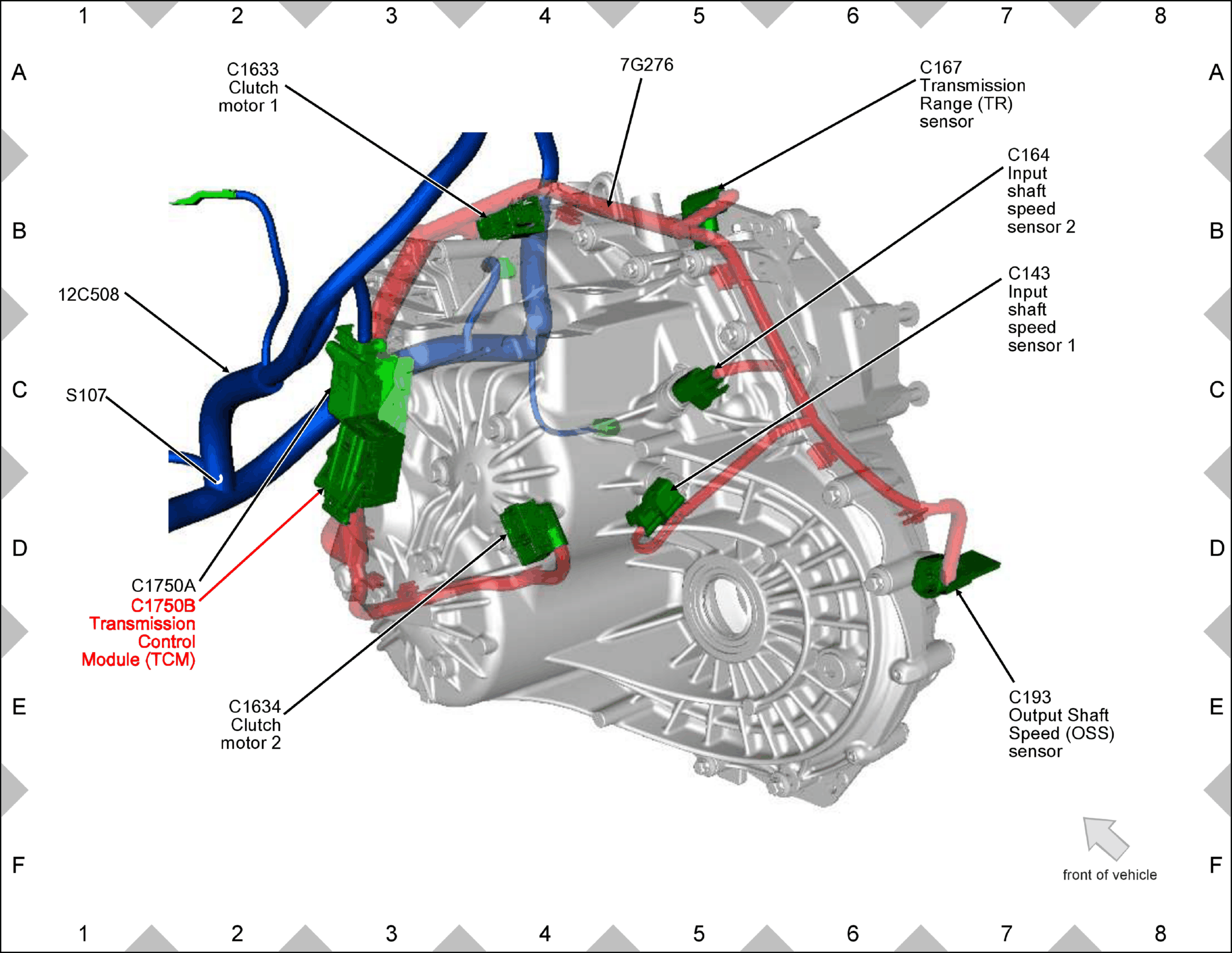

Fig 1: Transmission Control Module (TCM) (Automatic Transmission) Component Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
