Temperature Door Actuator, Driver Component Location

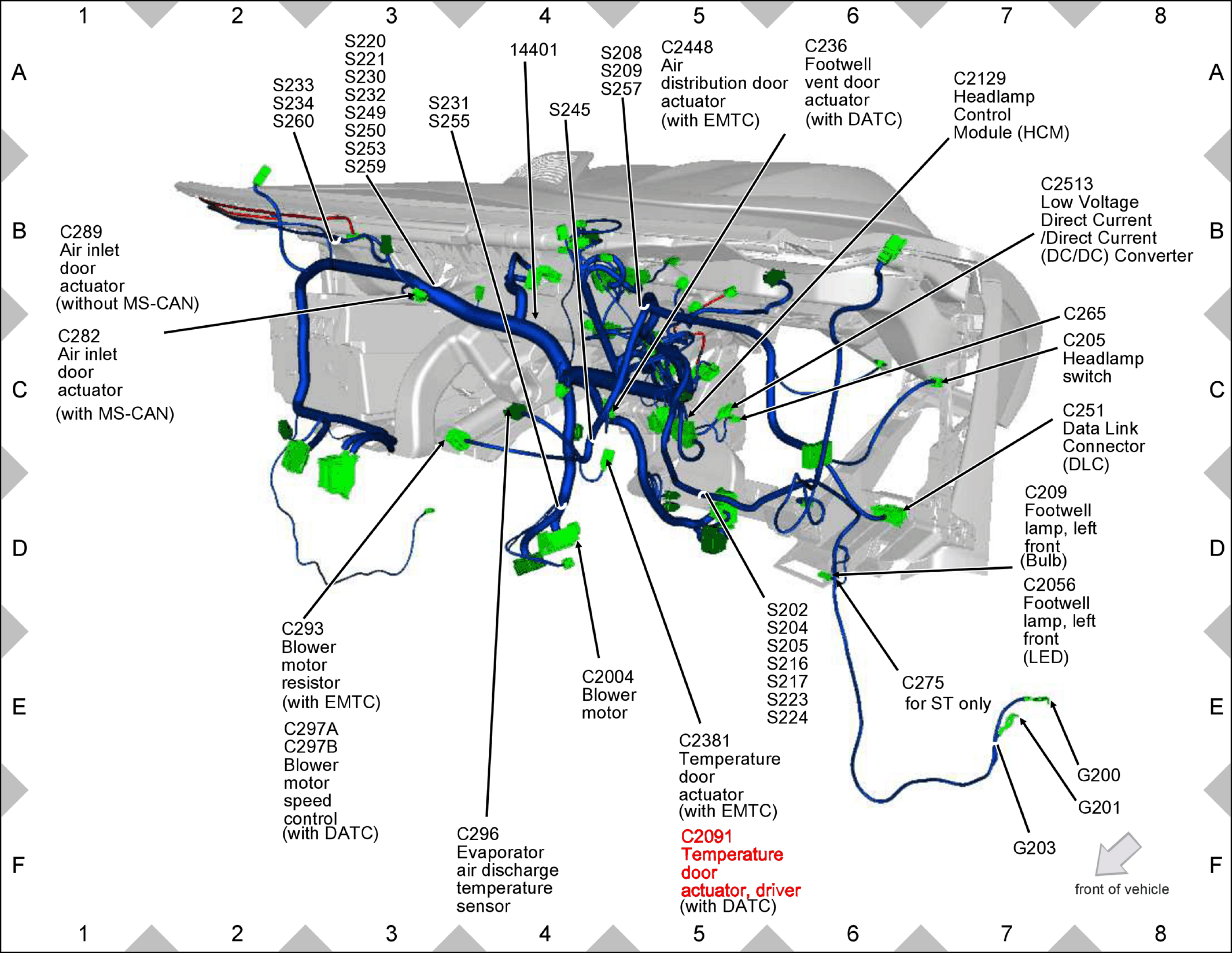

Fig 1: Temperature Door Actuator, Driver Component Location

GFDW52454

Courtesy of FORD MOTOR COMPANY
