Subwoofer (4 Door) Component Location

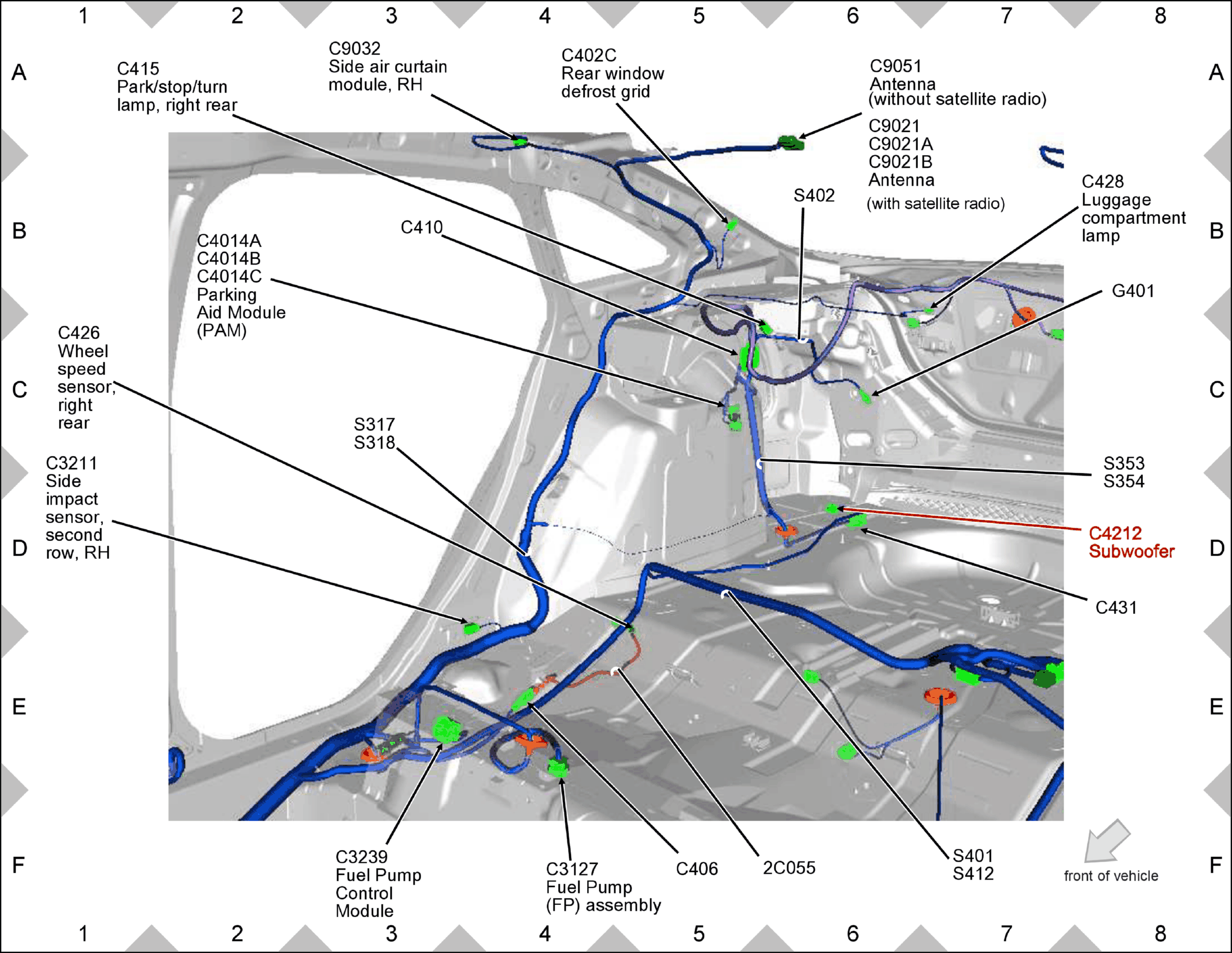

Fig 1: Subwoofer (4 Door) Component Location

GFDW52452

Courtesy of FORD MOTOR COMPANY
