Speaker, Right Rear Component Location

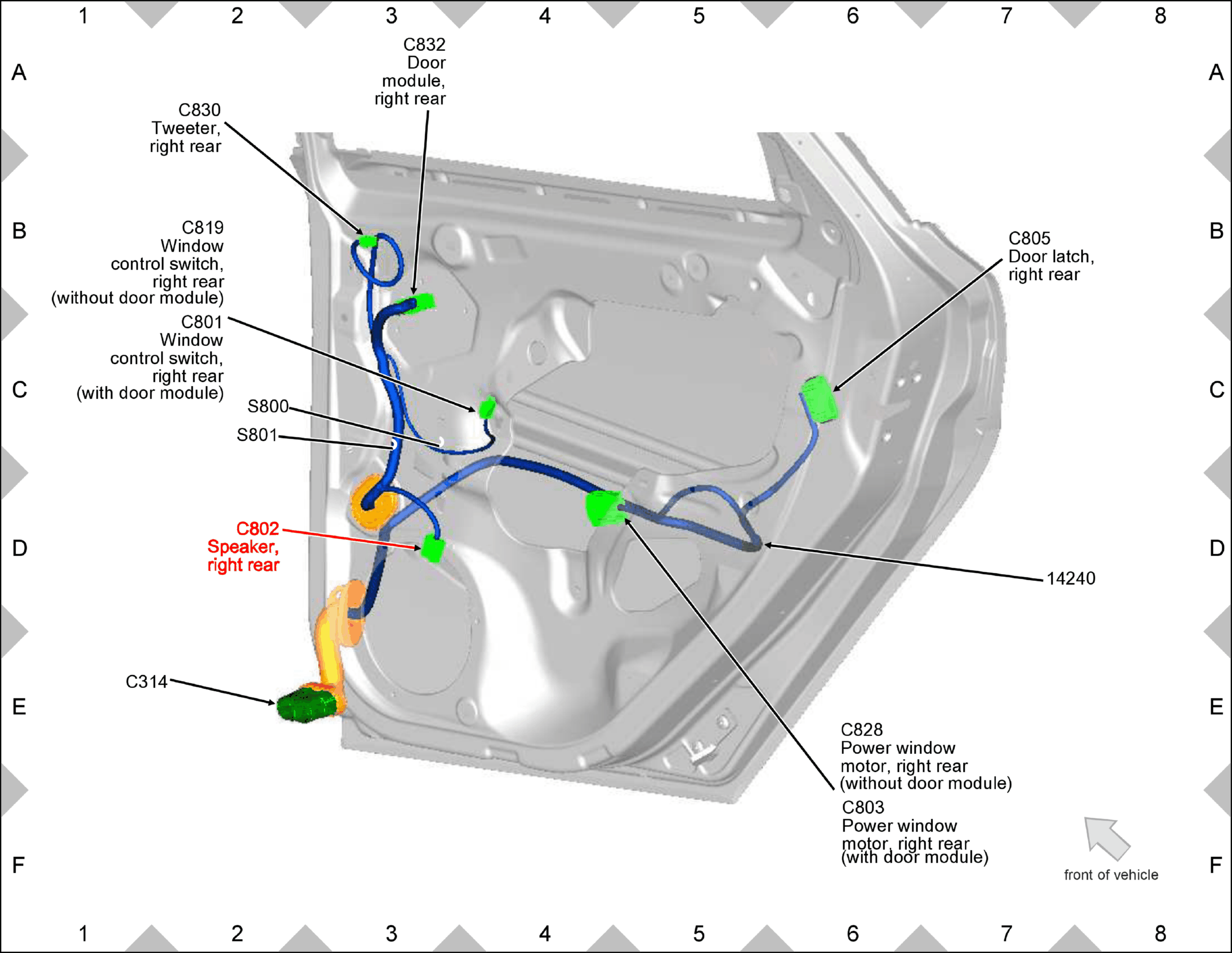

Fig 1: Speaker, Right Rear Component Location

GFDW52445

Courtesy of FORD MOTOR COMPANY
