Speaker, Right Front Component Location

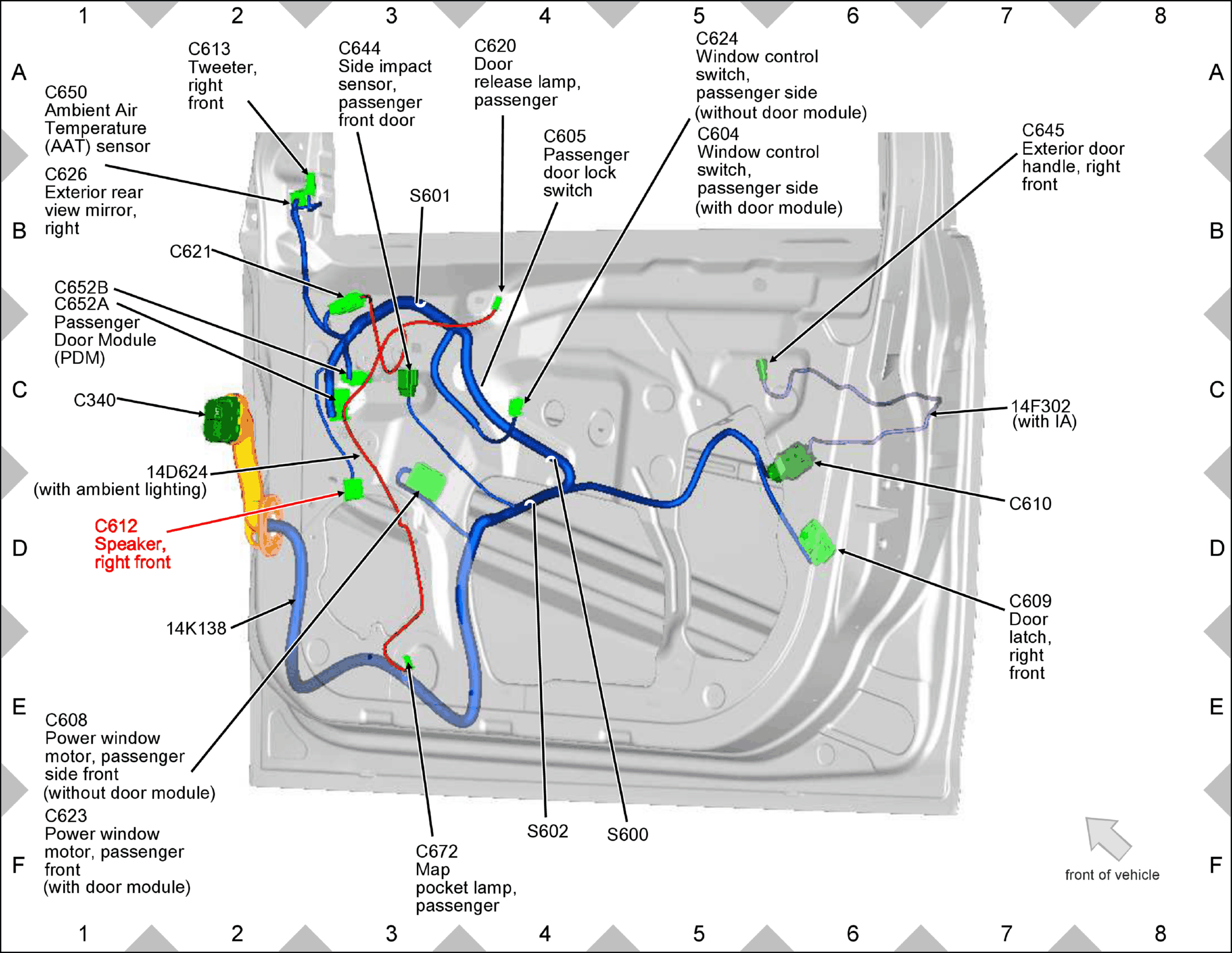

Fig 1: Speaker, Right Front Component Location

GFDW52444

Courtesy of FORD MOTOR COMPANY
