Speaker, Left Front Component Location

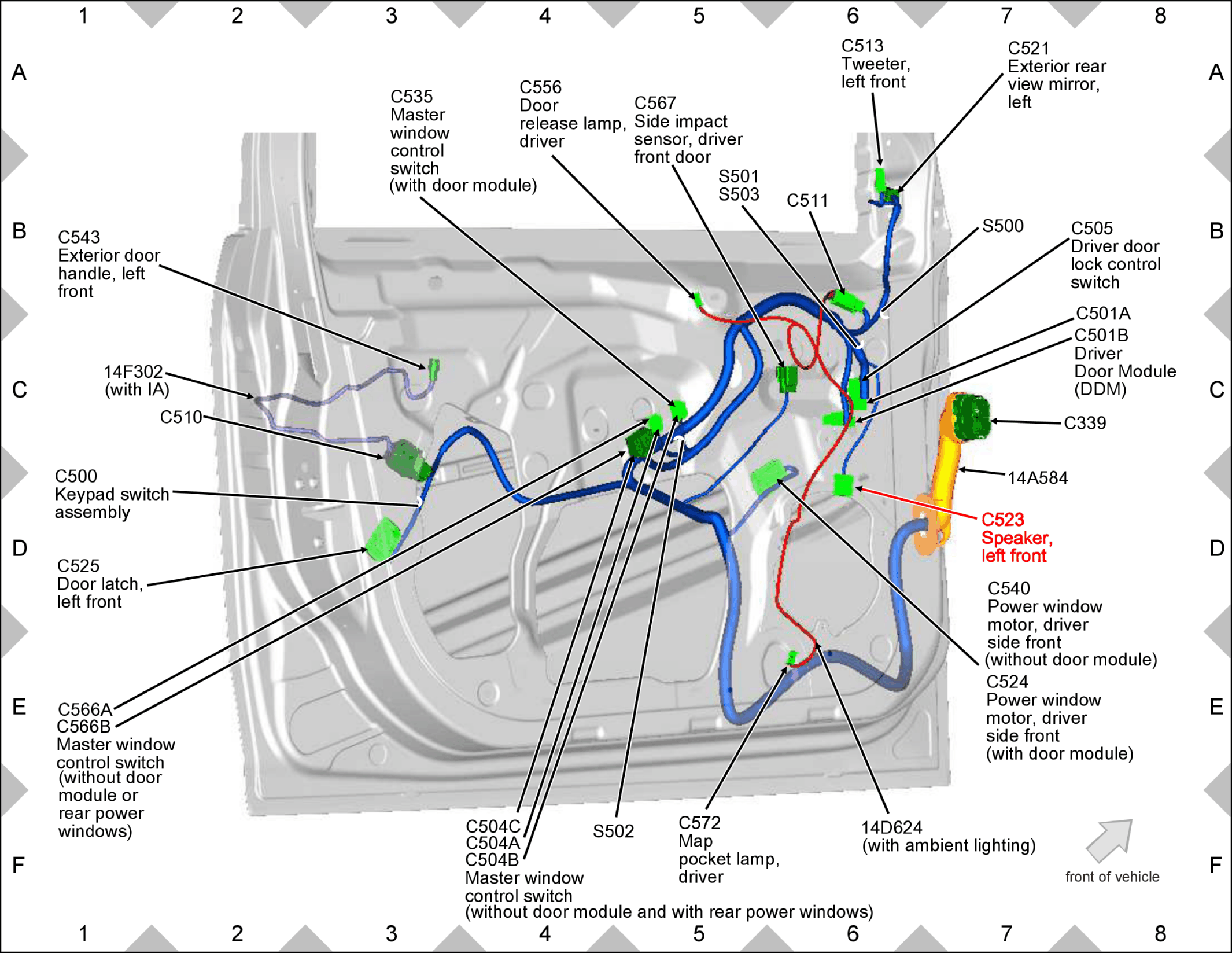

Fig 1: Speaker, Left Front Component Location

GFDW52442

Courtesy of FORD MOTOR COMPANY
