Speaker, Instrument Panel Component Location

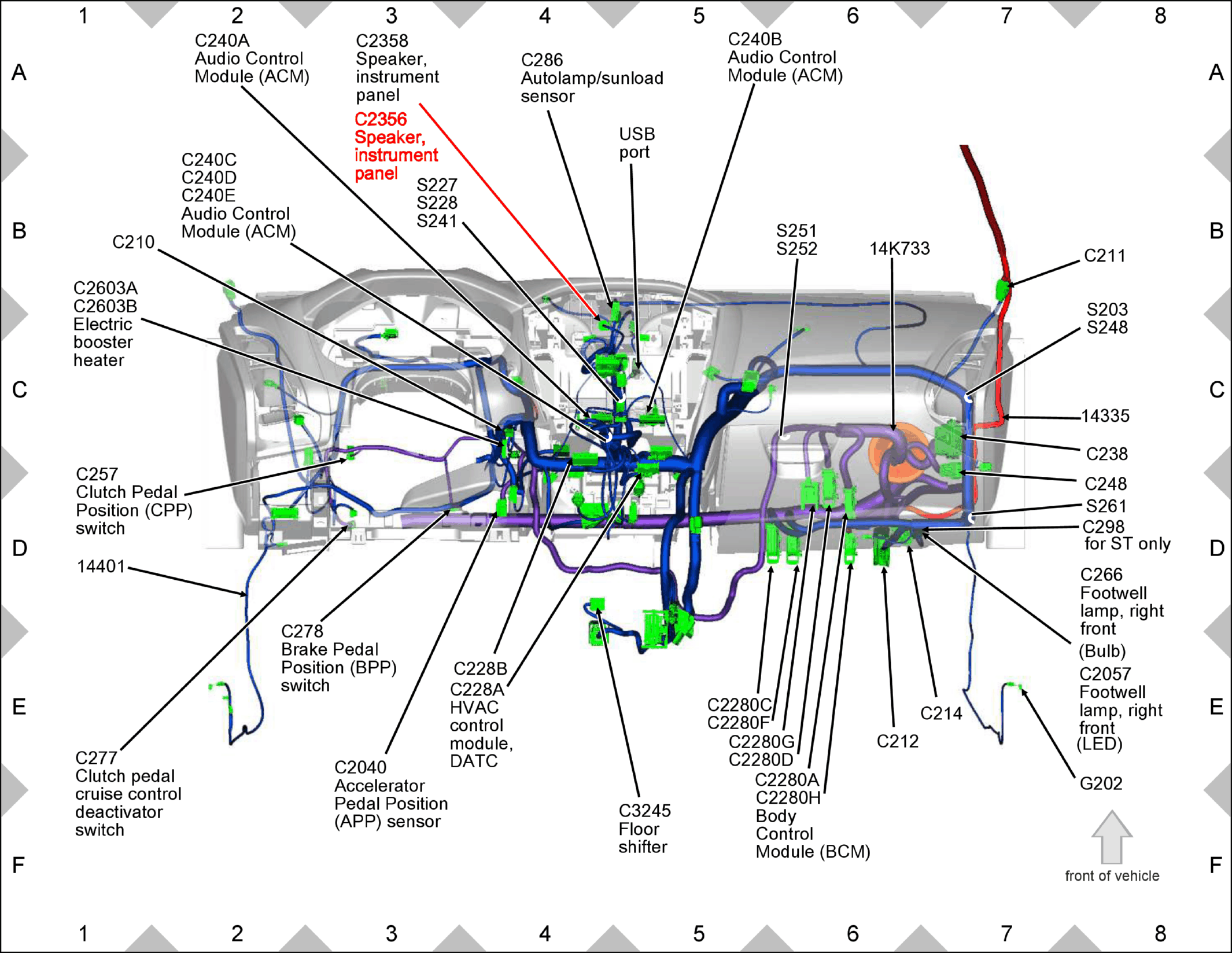

Fig 1: Speaker, Instrument Panel Component Location

GFDW52441

Courtesy of FORD MOTOR COMPANY
