Safety Belt Tension Sensor (BTS), Driver Component Location

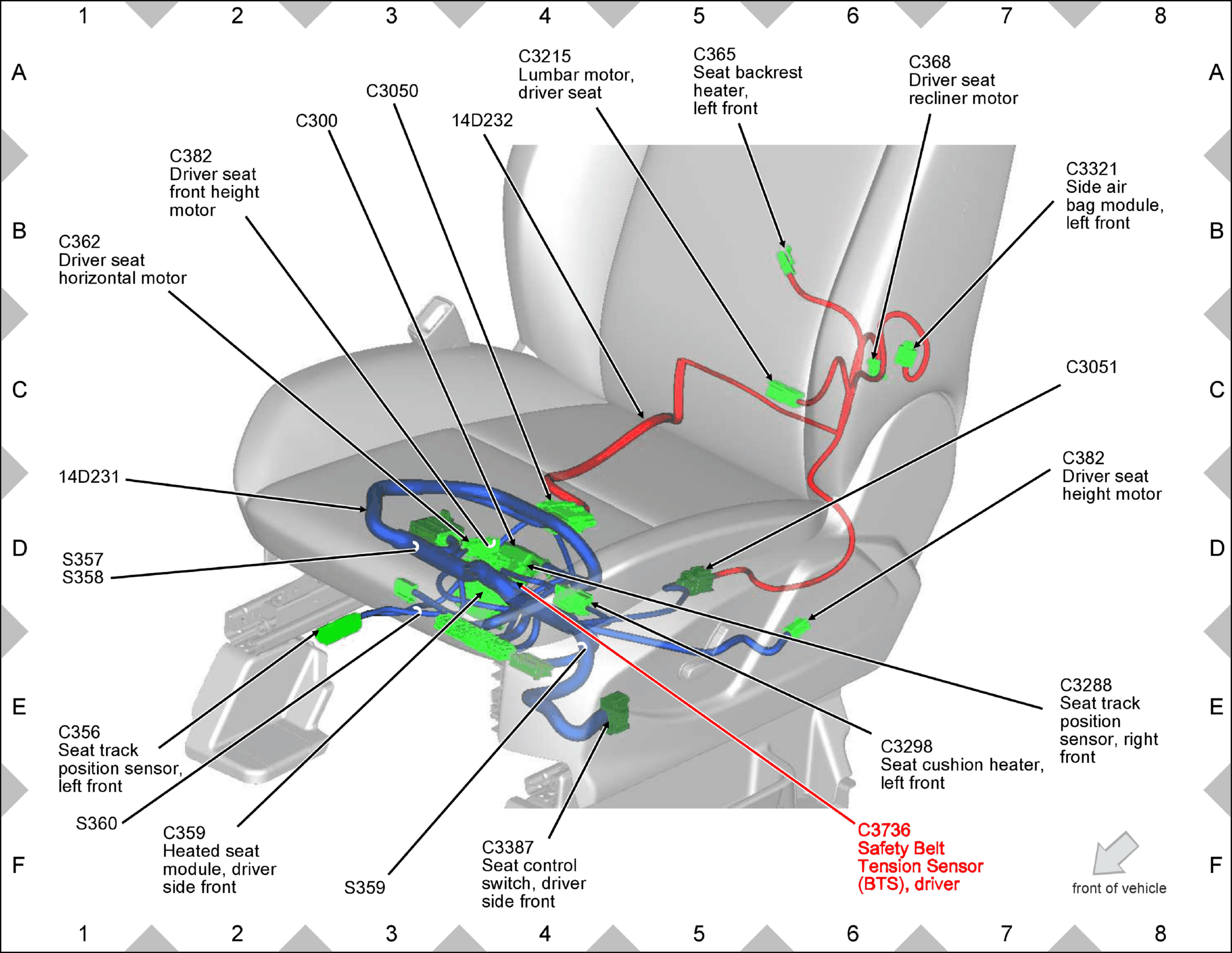

Fig 1: Safety Belt Tension Sensor (BTS), Driver Component Location

GFDW52432

Courtesy of FORD MOTOR COMPANY
