Safety Belt Load Limiting Retractor, Passenger Component Location

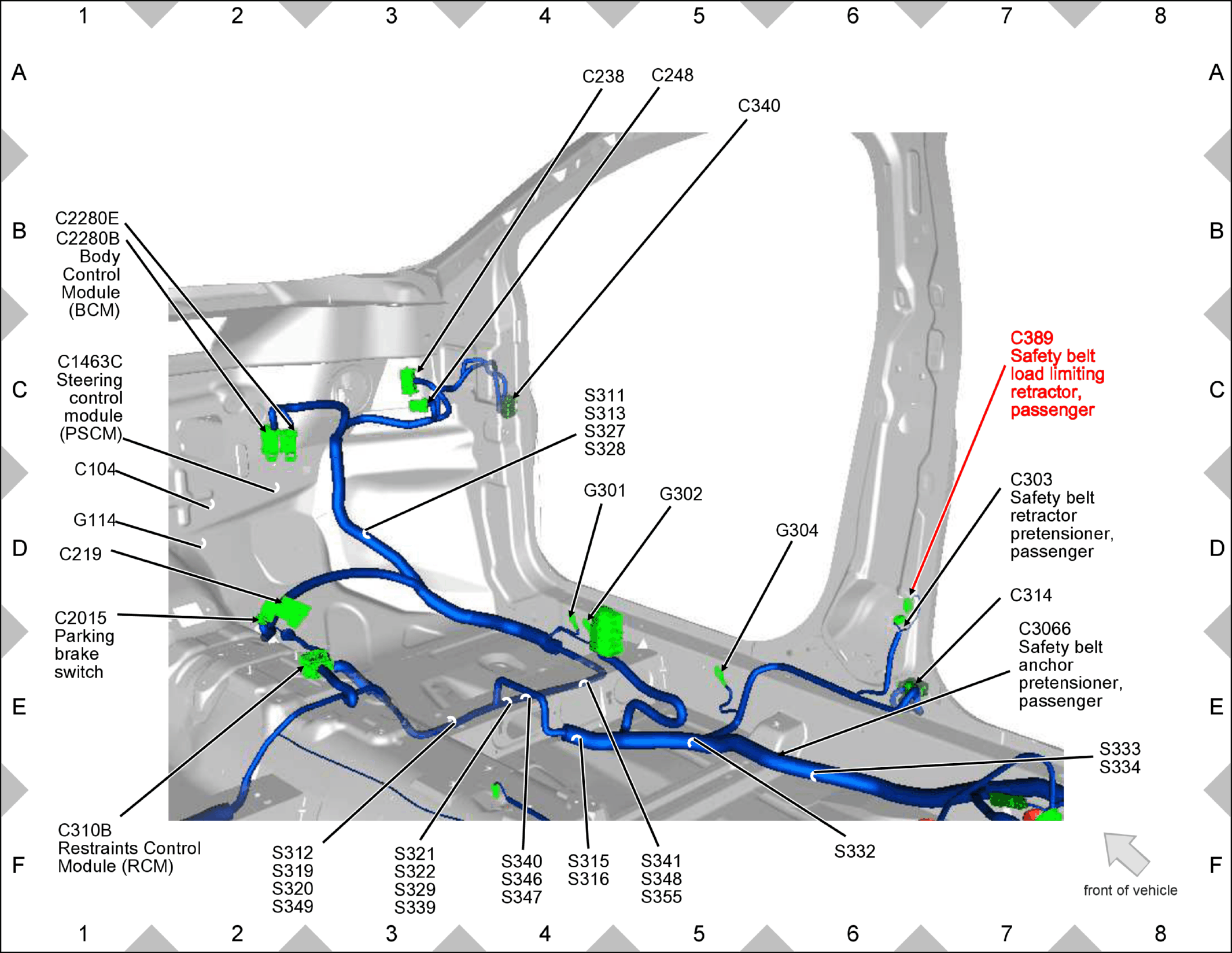

Fig 1: Safety Belt Load Limiting Retractor, Passenger Component Location

GFDW52430

Courtesy of FORD MOTOR COMPANY
