Passenger Safety Belt Buckle Switch Component Location

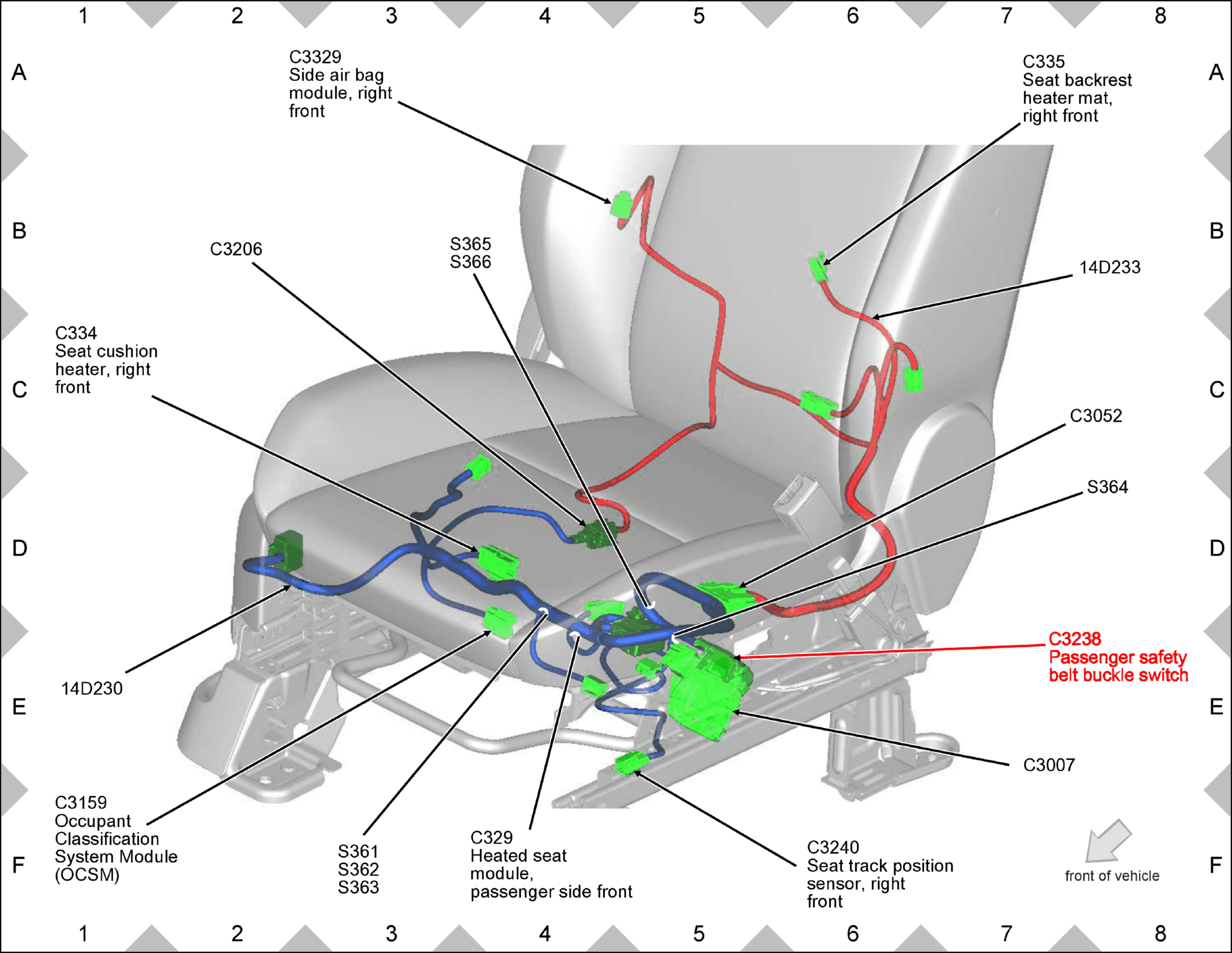

Fig 1: Passenger Safety Belt Buckle Switch Component Location

GFDW52410

Courtesy of FORD MOTOR COMPANY
