Output Shaft Speed (OSS) Sensor (Automatic Transmission) Component Location

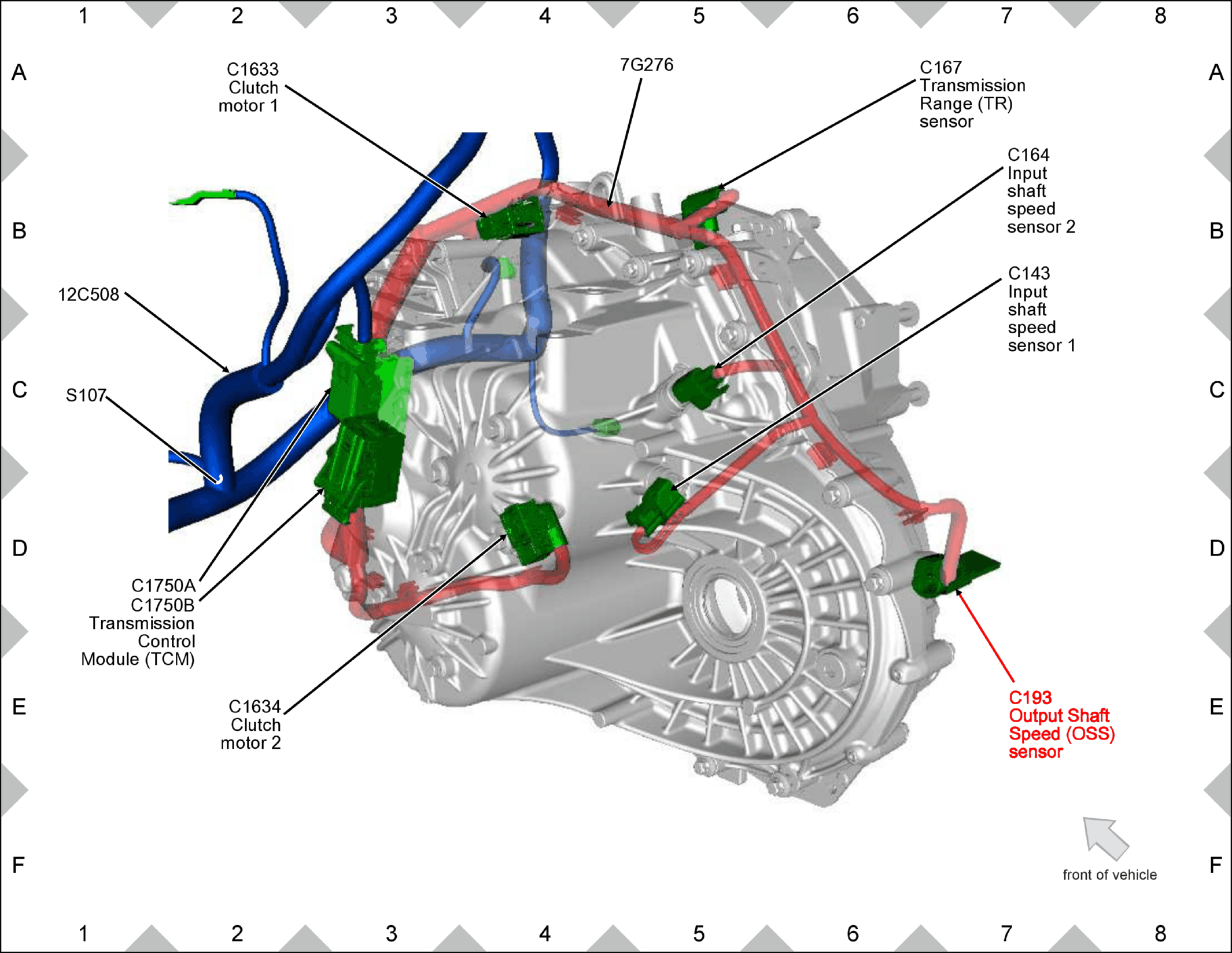

Fig 1: Output Shaft Speed (OSS) Sensor (Automatic Transmission) Component Location

GFDW52399

Courtesy of FORD MOTOR COMPANY
