Noise Generator (GTDI) Component Location

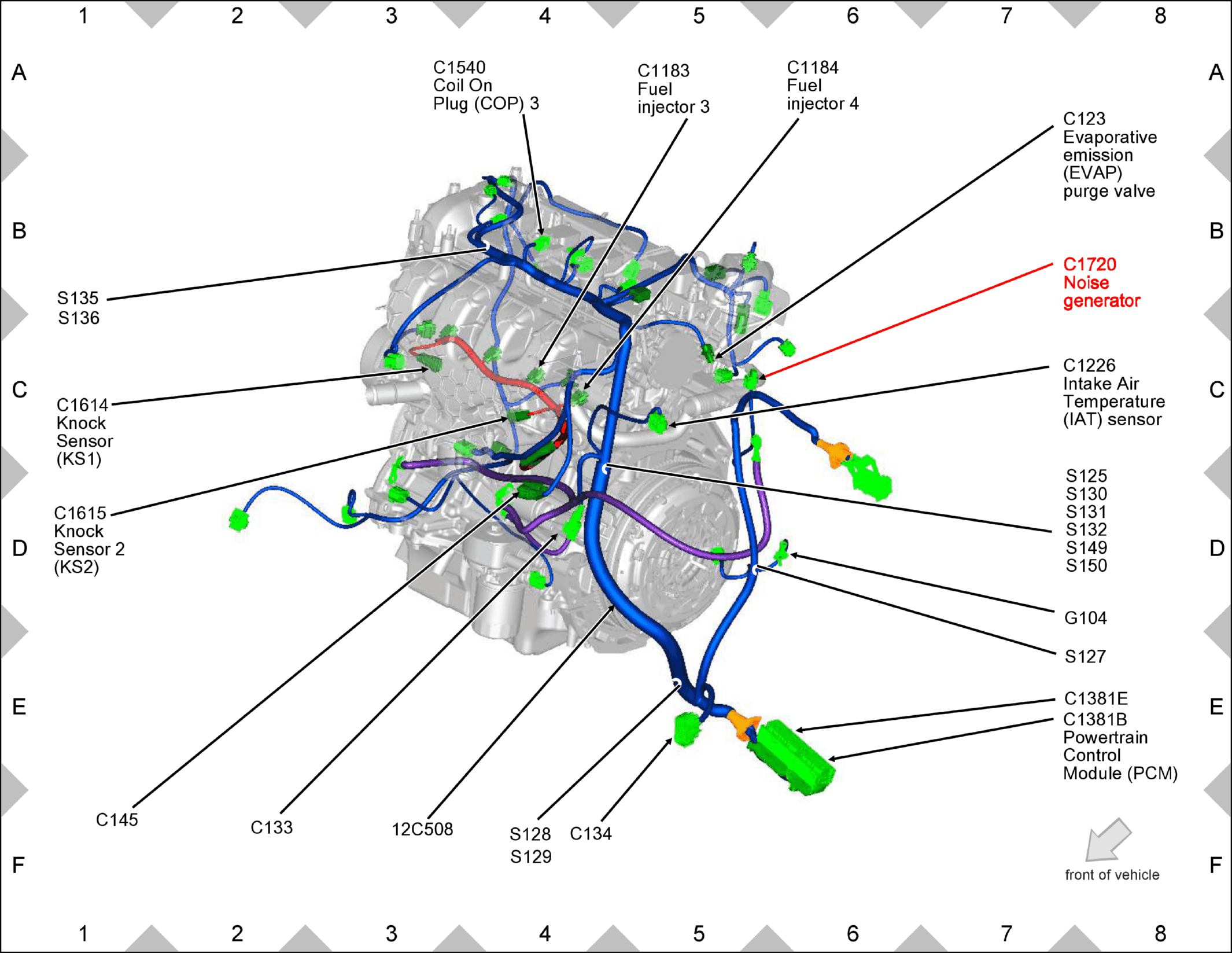

Fig 1: Noise Generator (GTDI) Component Location

GFDW52396

Courtesy of FORD MOTOR COMPANY
