Mass Airflow / Intake Air Temperature (MAF/IAT) Sensor Component Location

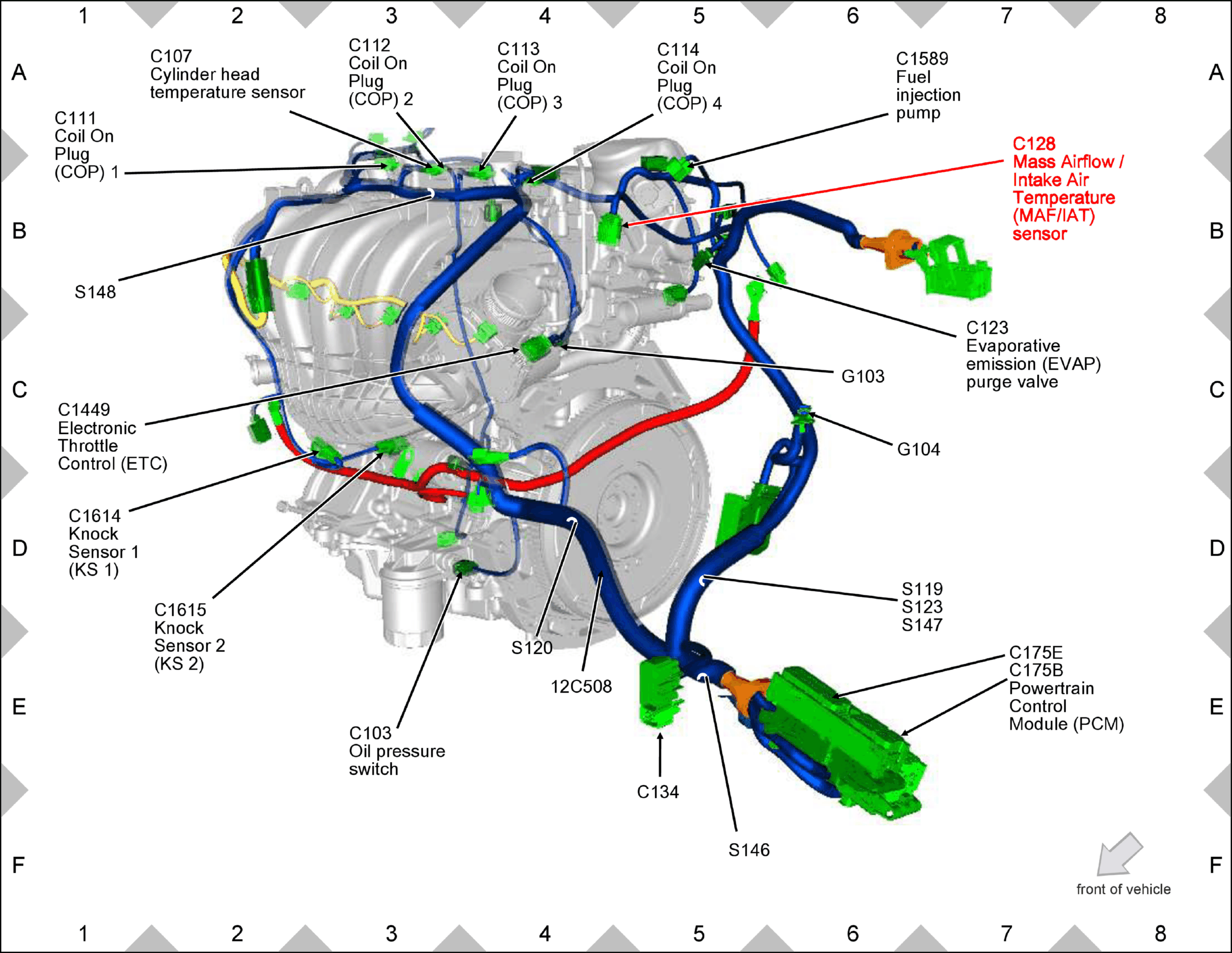

Fig 1: Mass Airflow / Intake Air Temperature (MAF/IAT) Sensor Component Location

GFDW52391

Courtesy of FORD MOTOR COMPANY
