Lumbar Motor, Driver Seat Component Location

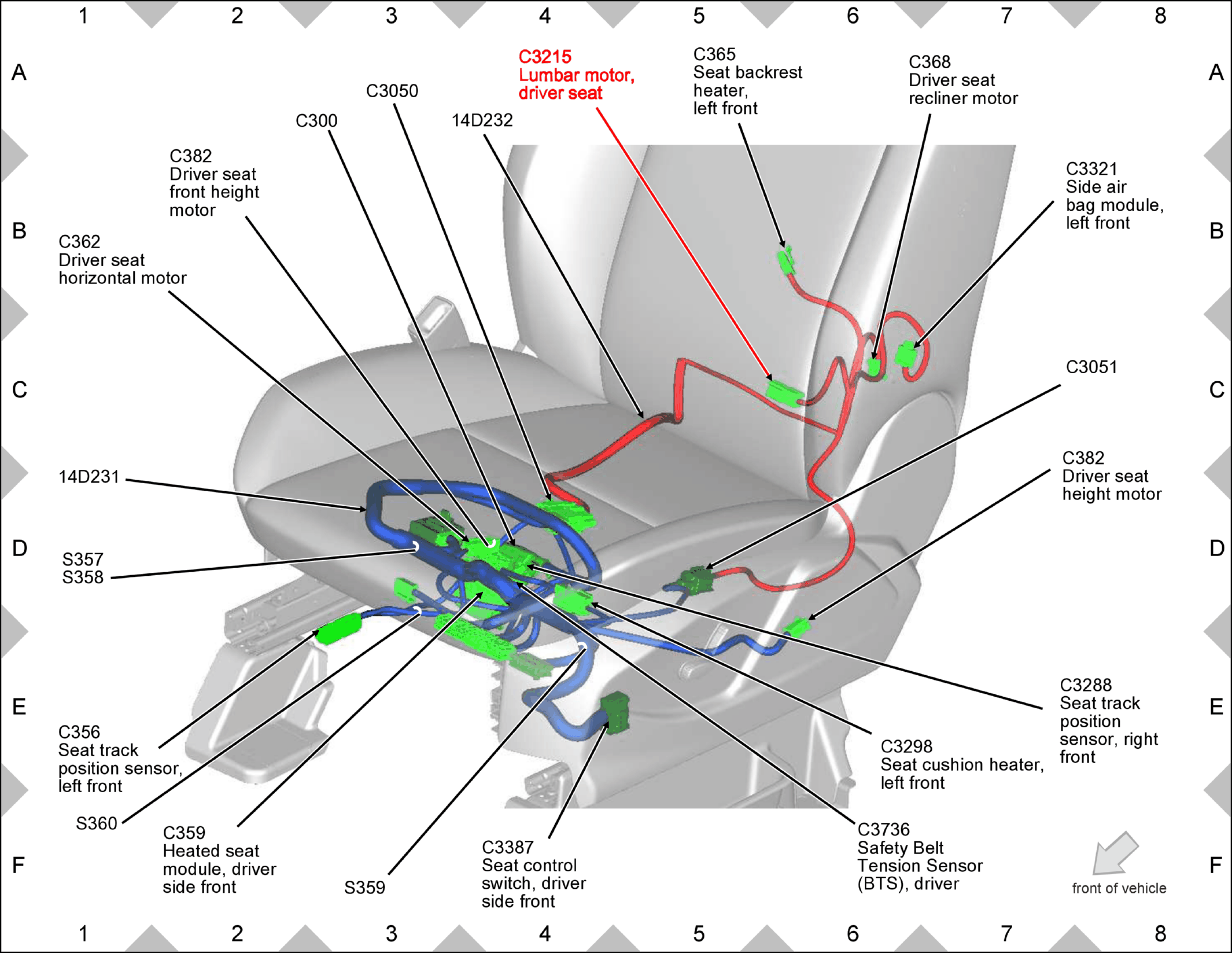

Fig 1: Lumbar Motor, Driver Seat Component Location

GFDW52388

Courtesy of FORD MOTOR COMPANY
