Liftgate / Decklid Release Switch / Lamp Assembly (5 Door) Component Location
Liftgate / Decklid Release Switch / Lamp Assembly (5 Door) Component Location

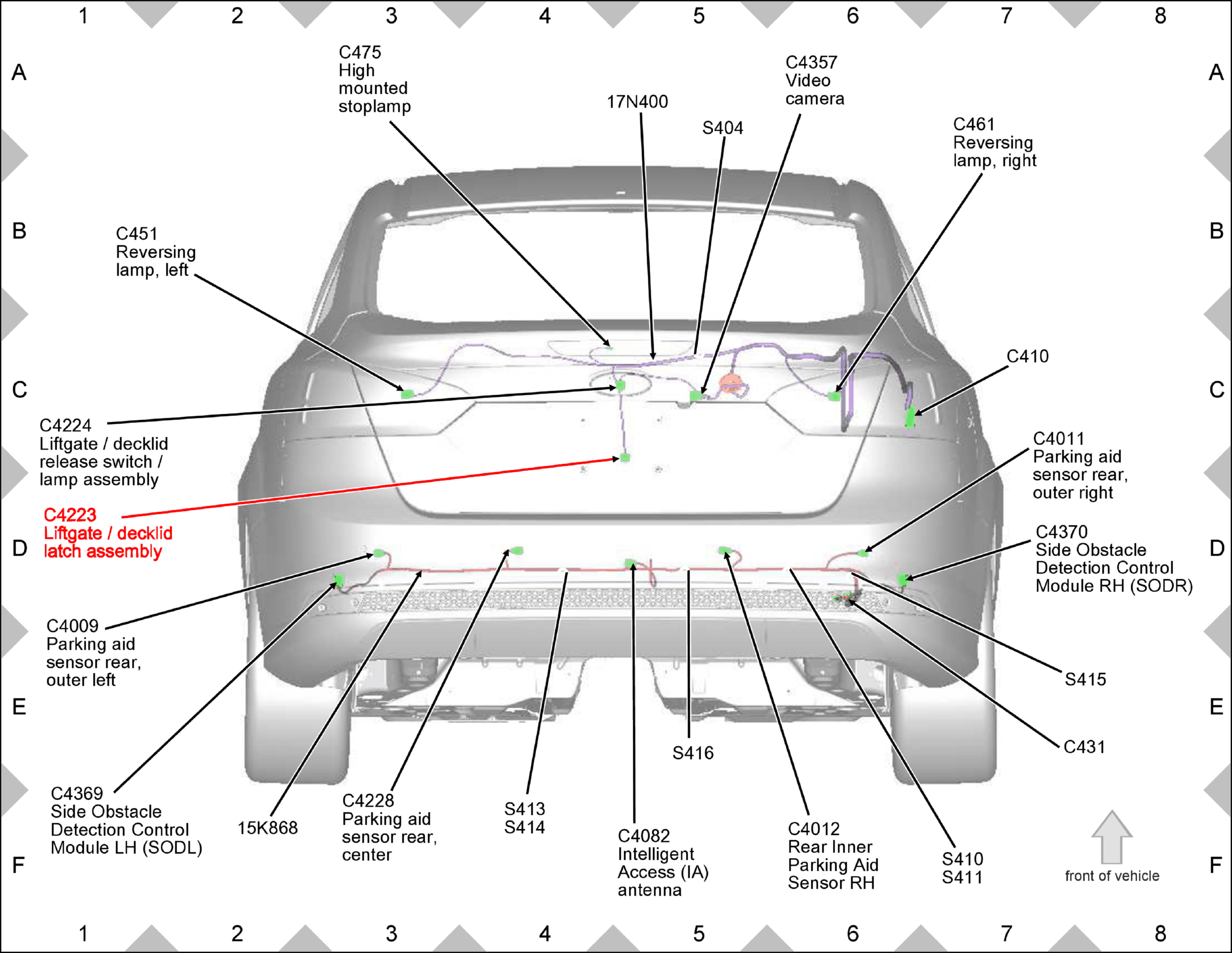

Fig 1: Liftgate / Decklid Release Switch / Lamp Assembly (5 Door) Component Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
