Knock Sensor 2 (KS 2) Component Location

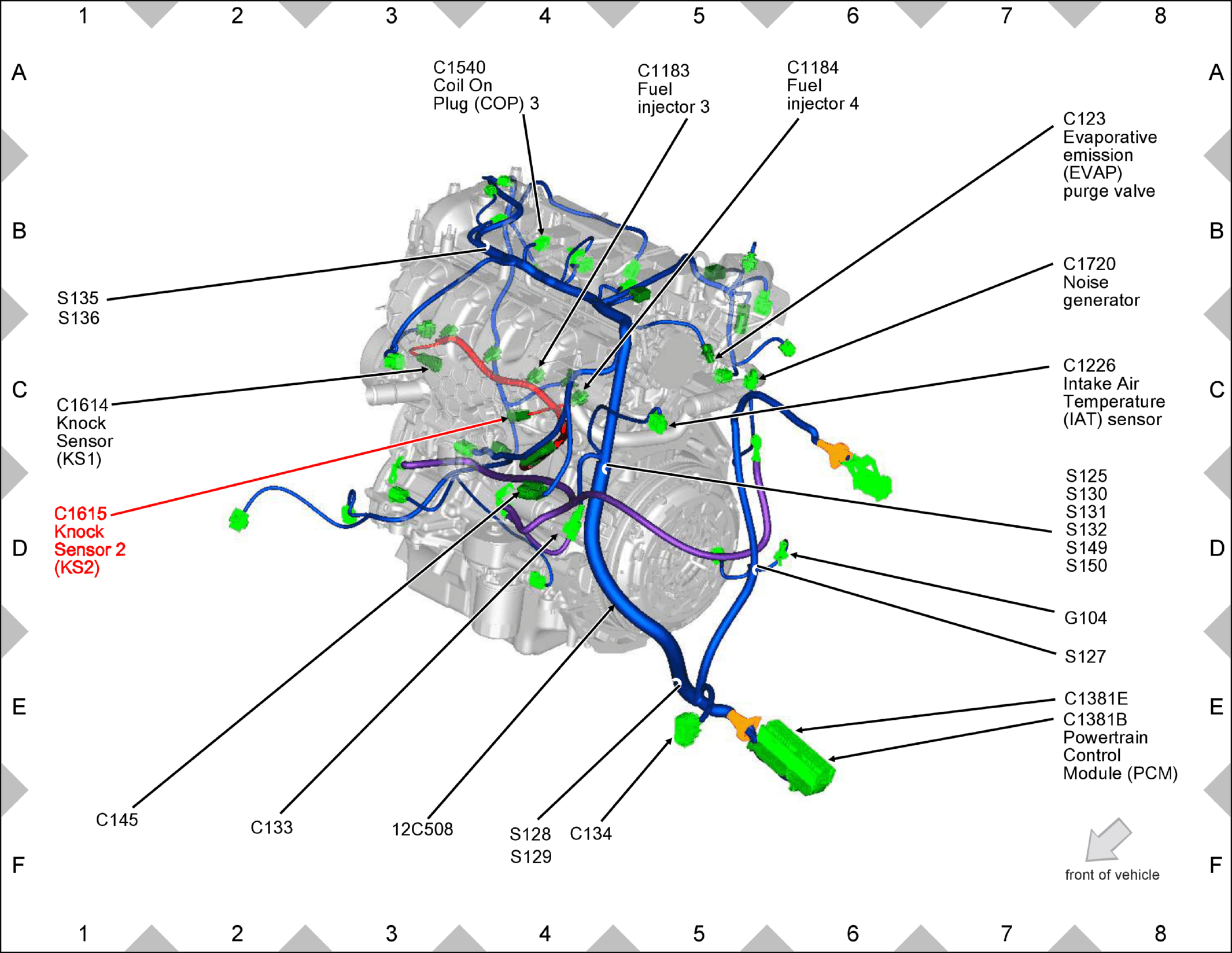

Fig 1: Knock Sensor 2 (KS 2) Component Location

GFDW52379

Courtesy of FORD MOTOR COMPANY
