Knock Sensor 1 (KS 1) Component Location

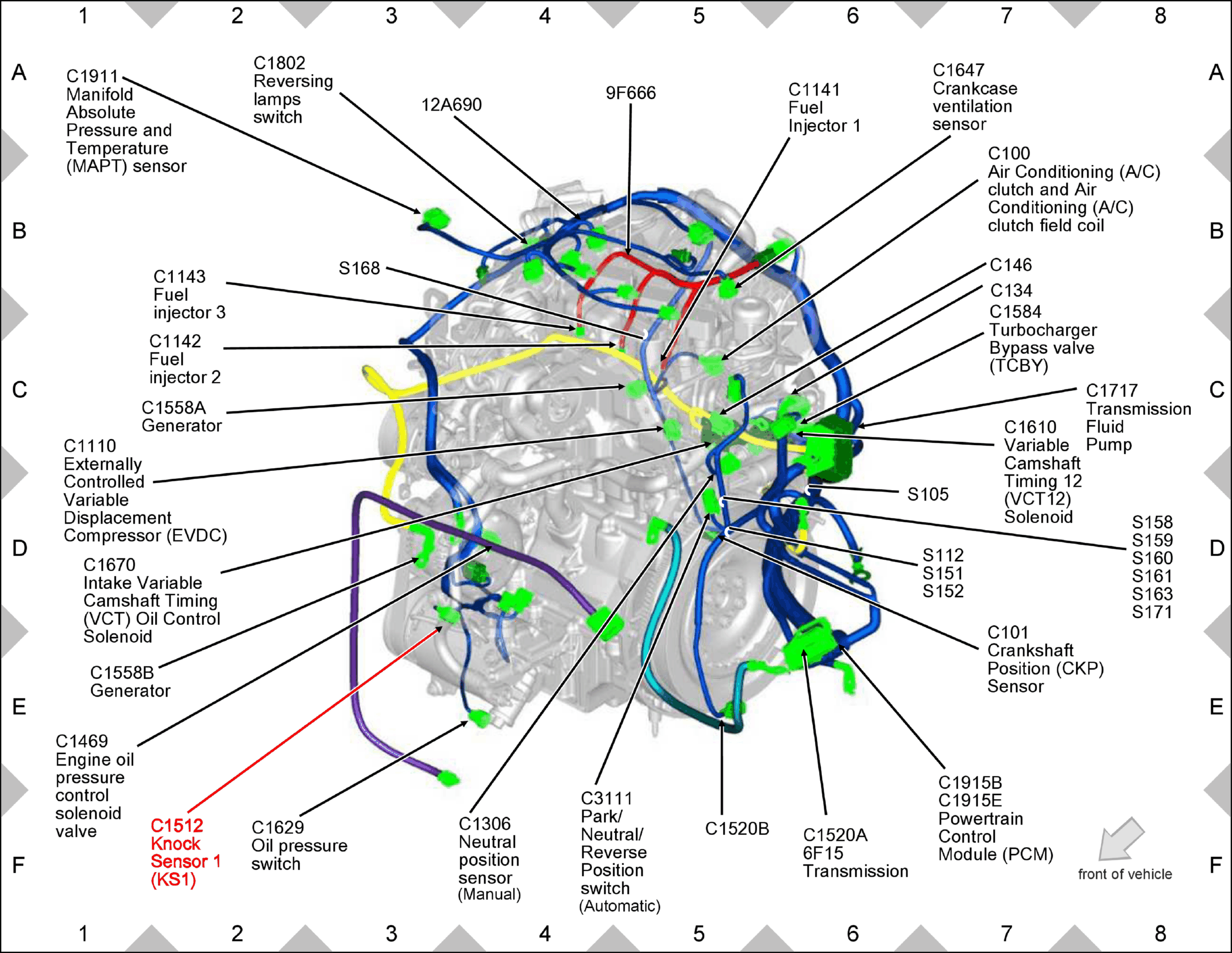

Fig 1: Knock Sensor 1 (KS 1) Component Location

GFDW52378

Courtesy of FORD MOTOR COMPANY
