Intake Variable Camshaft Timing (VCT) Oil Control Solenoid (1.0L FOX) Component Location

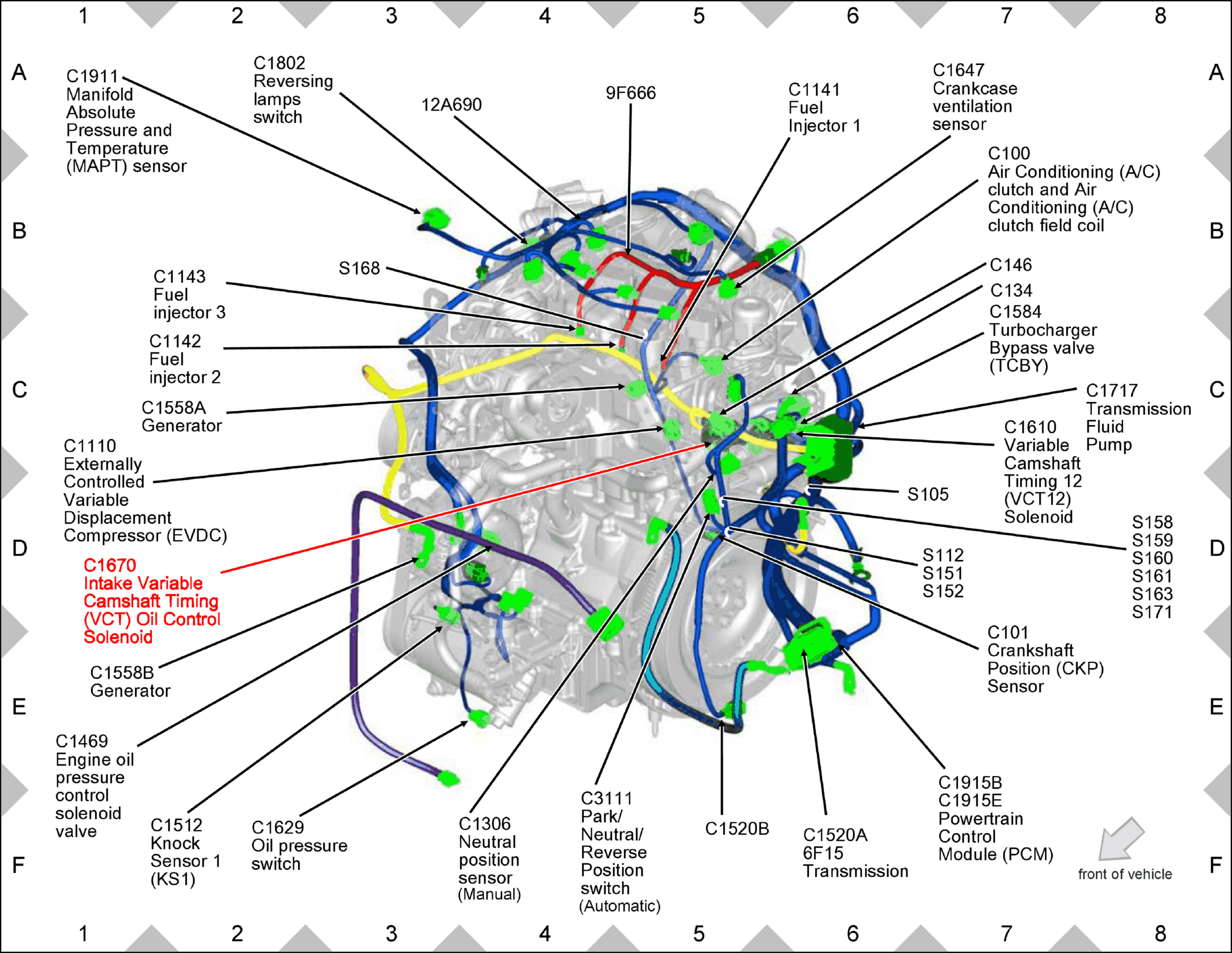

Fig 1: Intake Variable Camshaft Timing (VCT) Oil Control Solenoid (1.0L FOX) Component Location
GFDW52368Courtesy of FORD MOTOR COMPANY
