Instrument Panel Cluster (IPC) Component Location

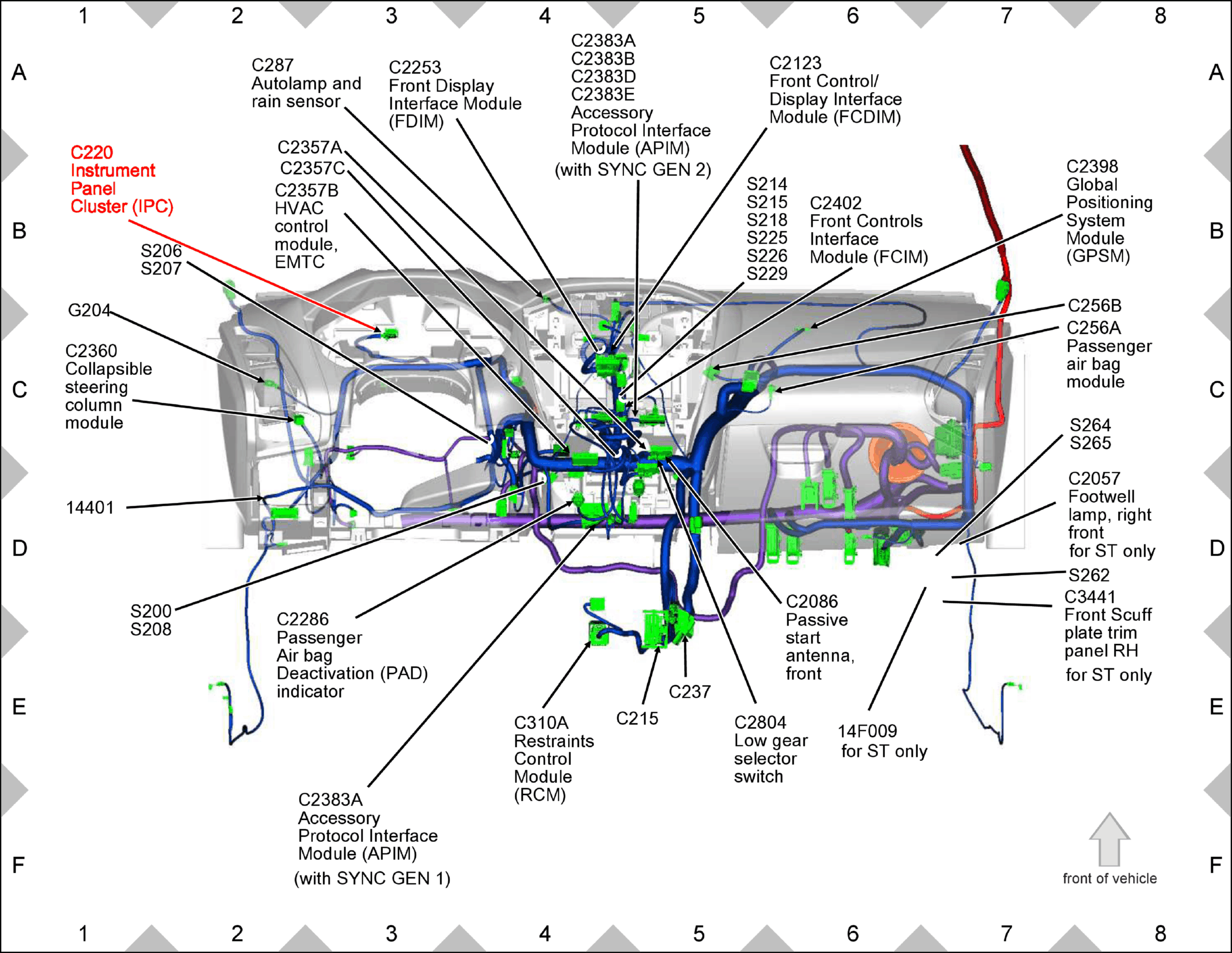

Fig 1: Instrument Panel Cluster (IPC) Component Location

GFDW52365

Courtesy of FORD MOTOR COMPANY
