Headlamp Assembly, Left Component Location

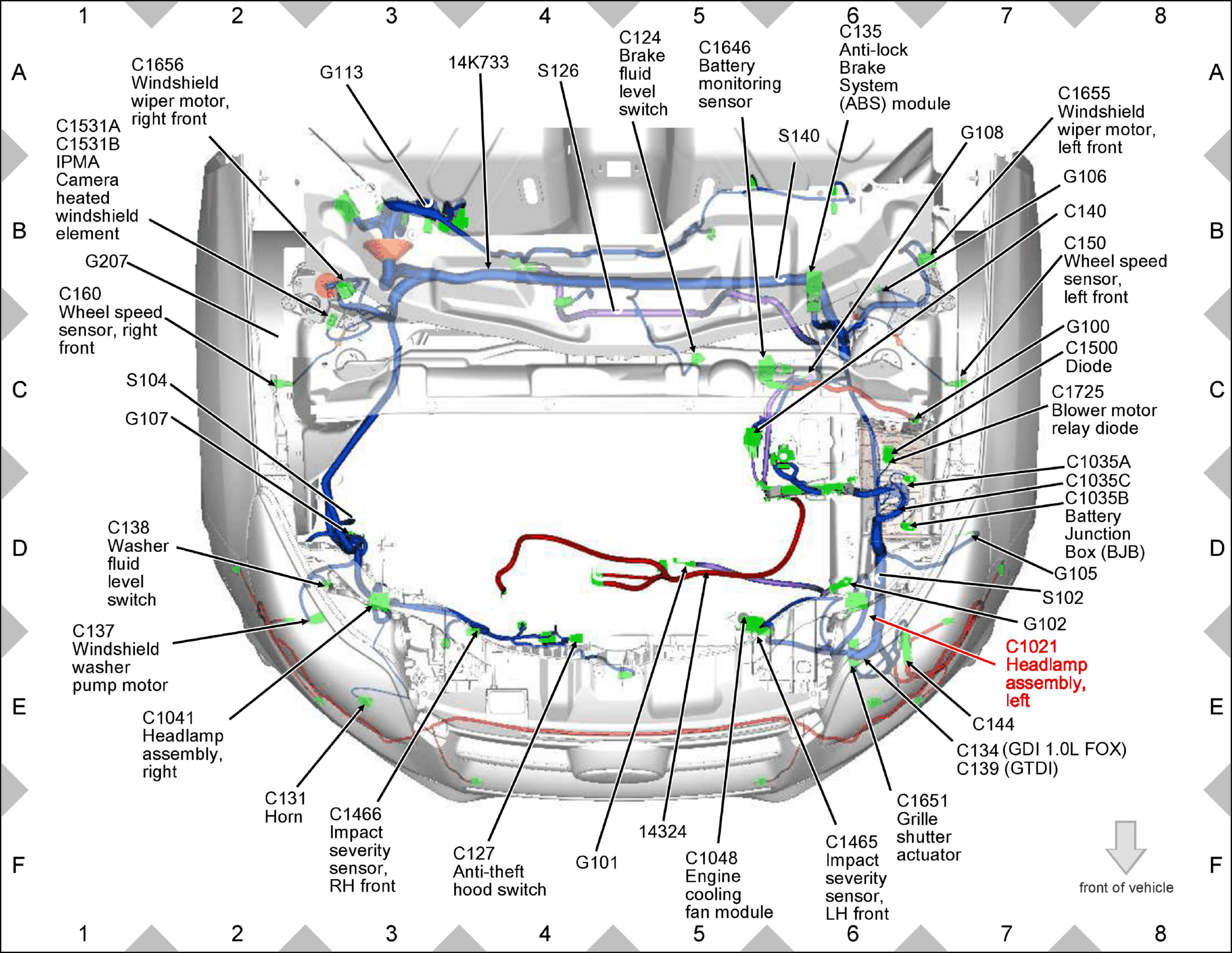

Fig 1: Headlamp Assembly, Left Component Location

GFDW52347

Courtesy of FORD MOTOR COMPANY
