Grille Shutter Actuator Component Location

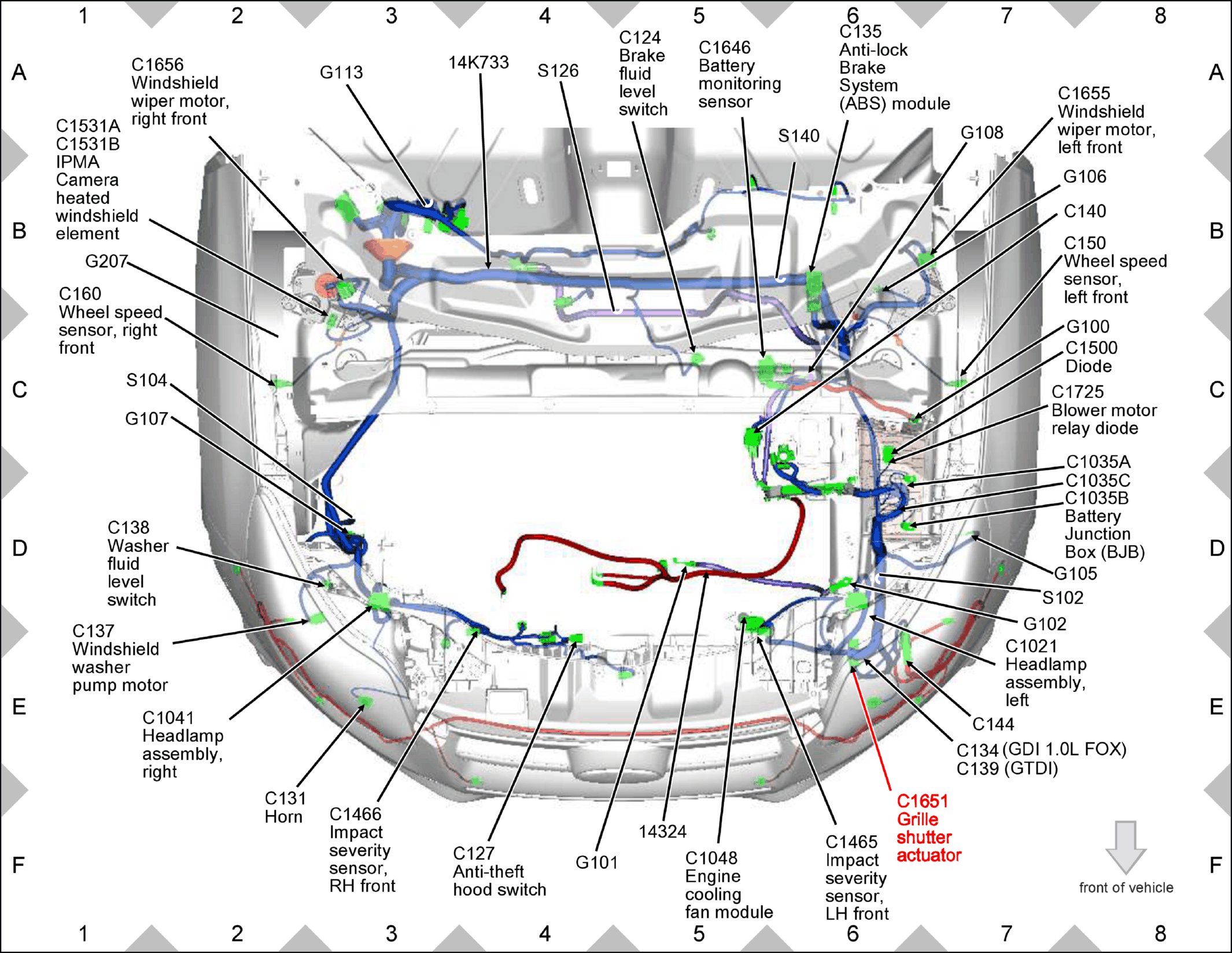

Fig 1: Grille Shutter Actuator Component Location

GFDW52345

Courtesy of FORD MOTOR COMPANY
