Fuel Pump Control Module (5 Door) Component Location

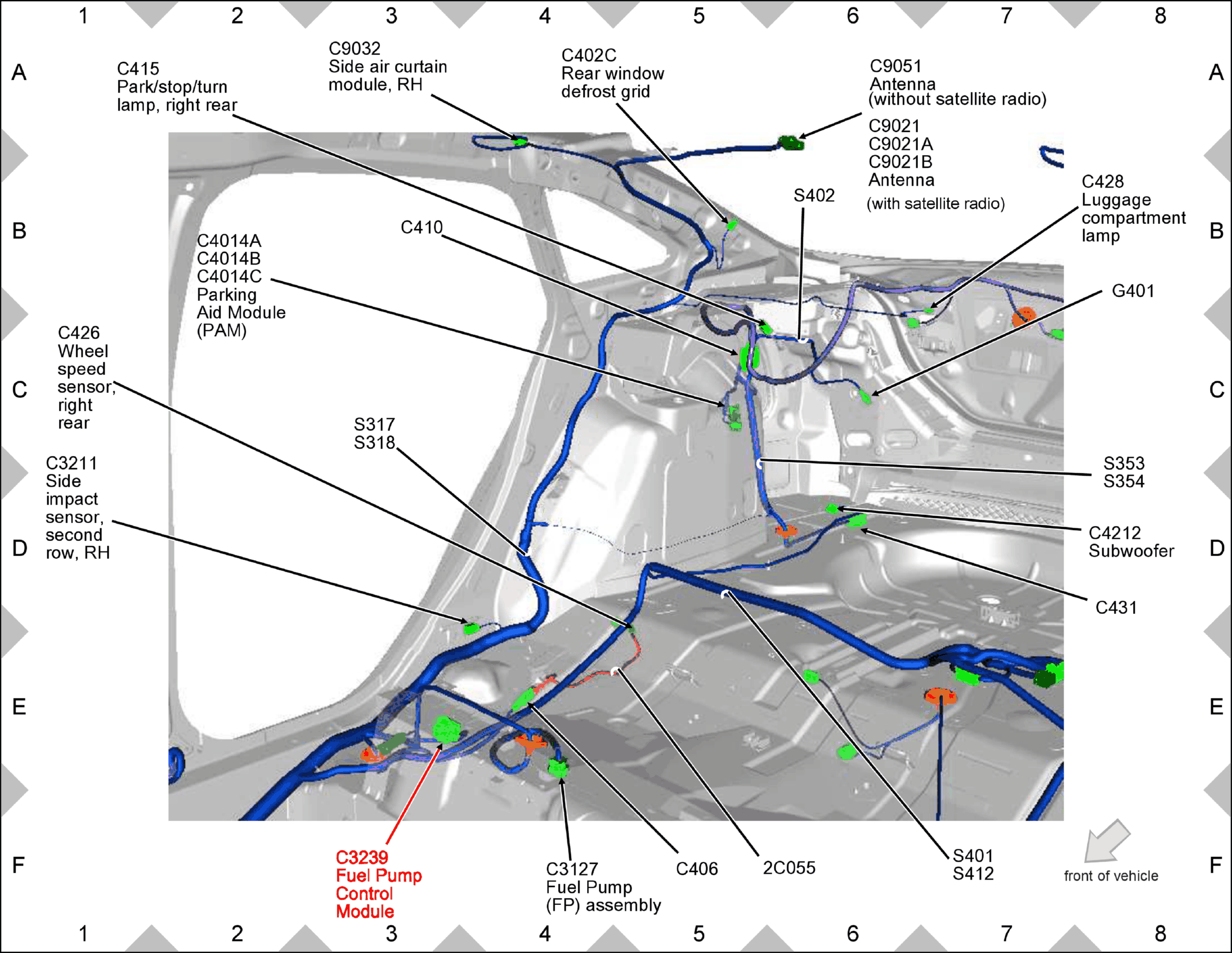

Fig 1: Fuel Pump Control Module (5 Door) Component Location

GFDW52336

Courtesy of FORD MOTOR COMPANY
