Fuel Injector 2 (1.0L FOX) Component Location

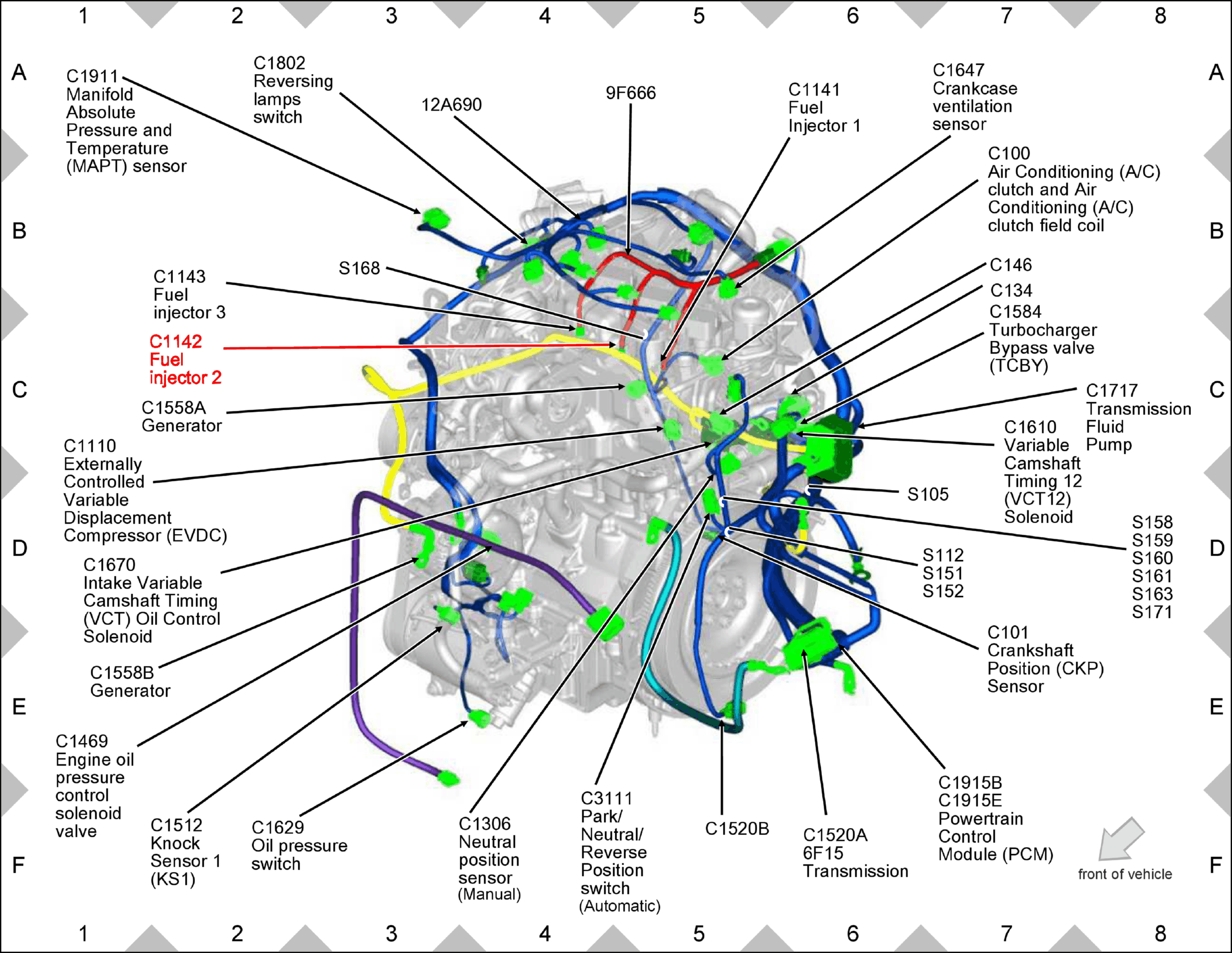

Fig 1: Fuel Injector 2 (1.0L FOX) Component Location

GFDW52327

Courtesy of FORD MOTOR COMPANY
