Fuel Injection Pump Component Location

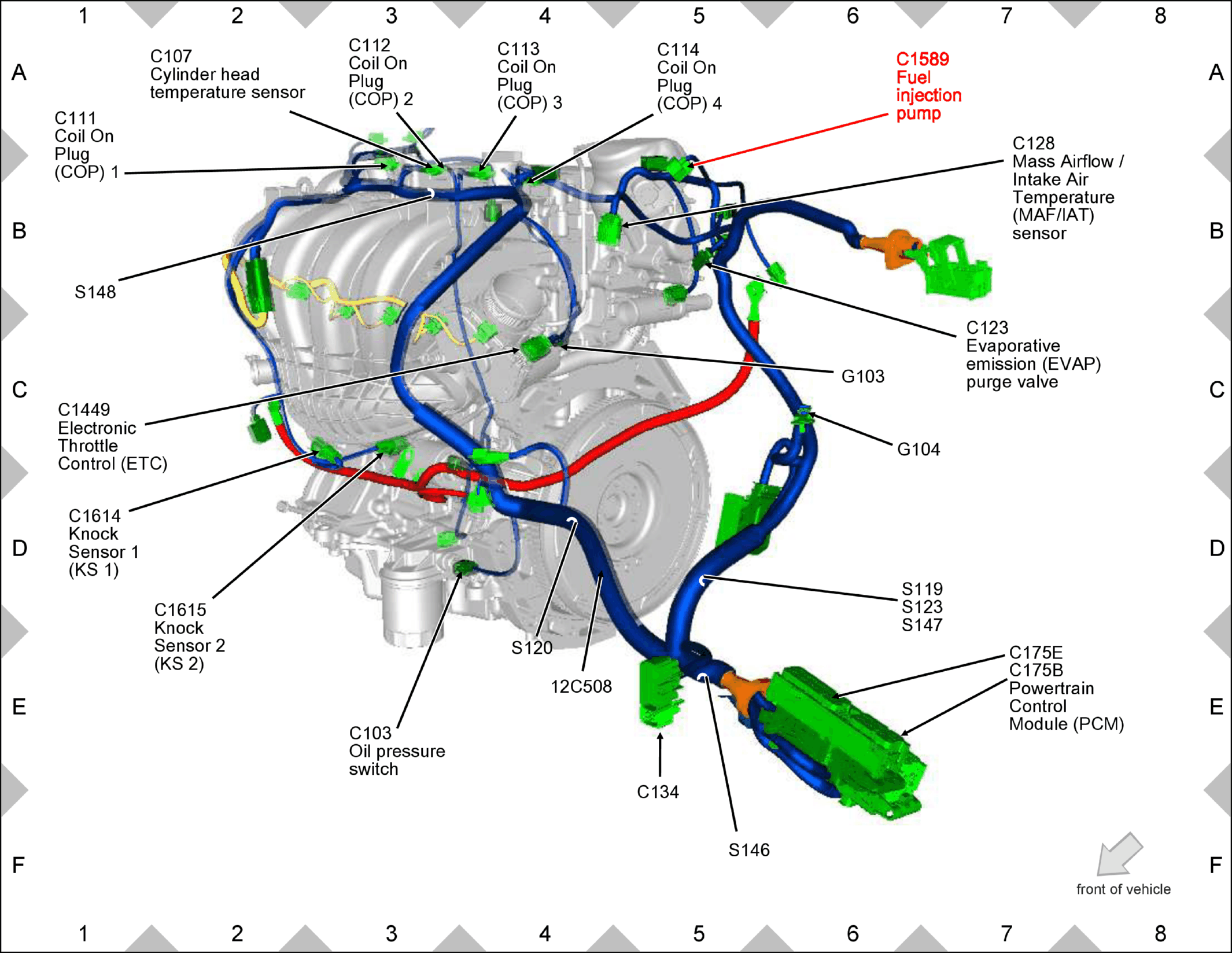

Fig 1: Fuel Injection Pump Component Location

GFDW52322

Courtesy of FORD MOTOR COMPANY
