Footwell Lamp, Right Front (F/ST only) Component Location

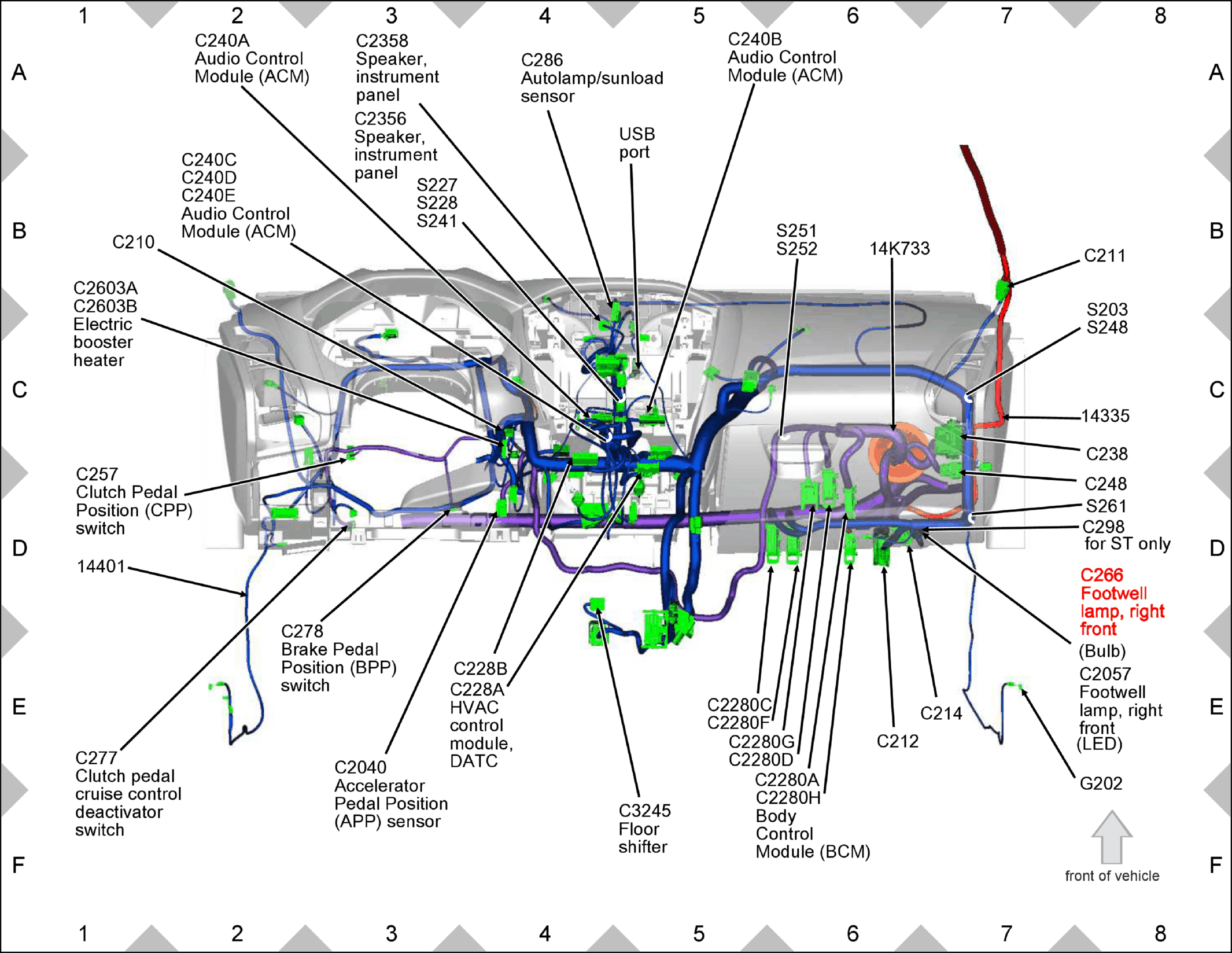

Fig 1: Footwell Lamp, Right Front (F/ST Only) Component Location

GFDW52315

Courtesy of FORD MOTOR COMPANY
