Evaporator Air Discharge Temperature Sensor Component Location
Evaporator Air Discharge Temperature Sensor Component Location

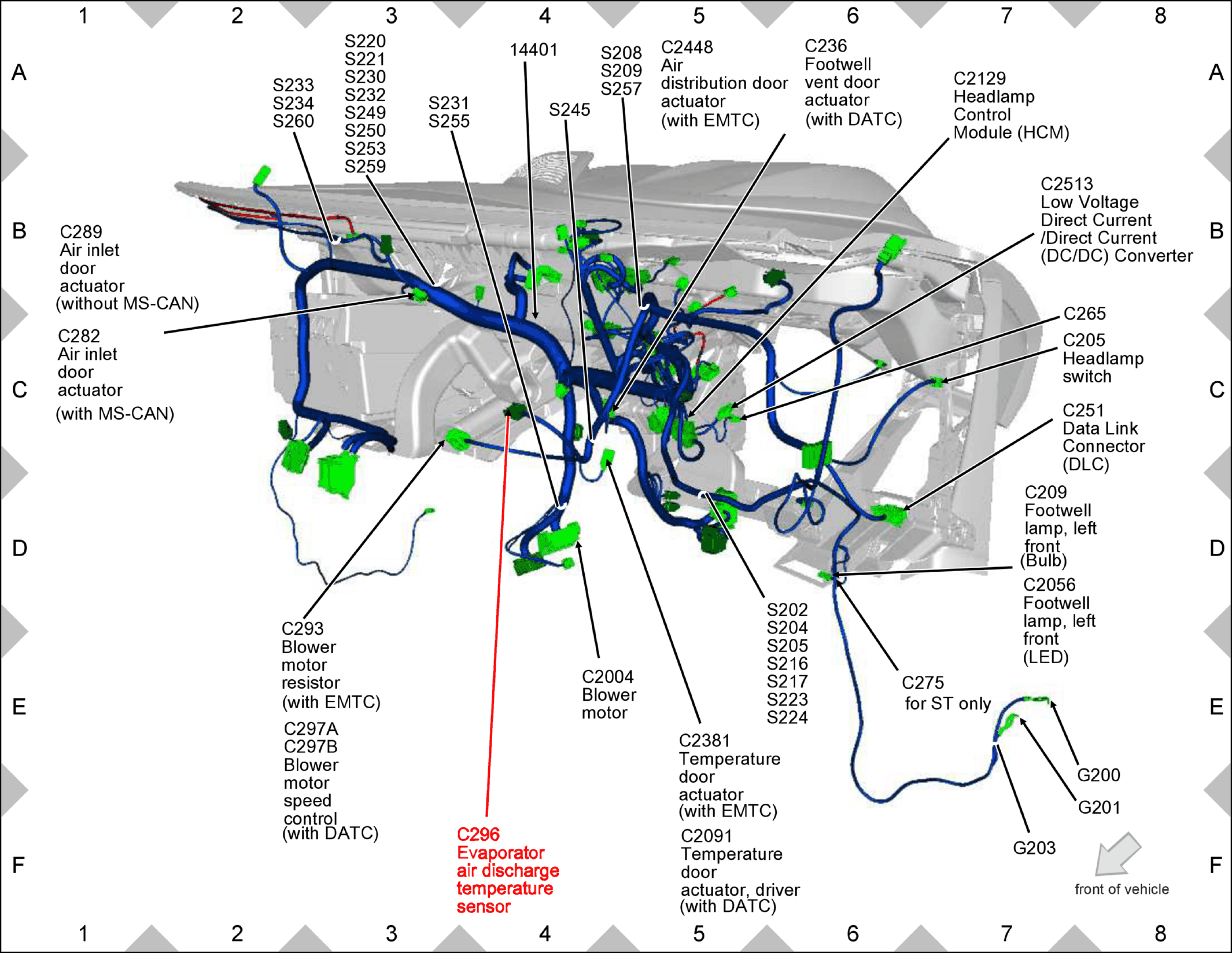

Fig 1: Evaporator Air Discharge Temperature Sensor Component Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
