Evaporative Emission (EVAP) Purge Valve (GTDI) Component Location

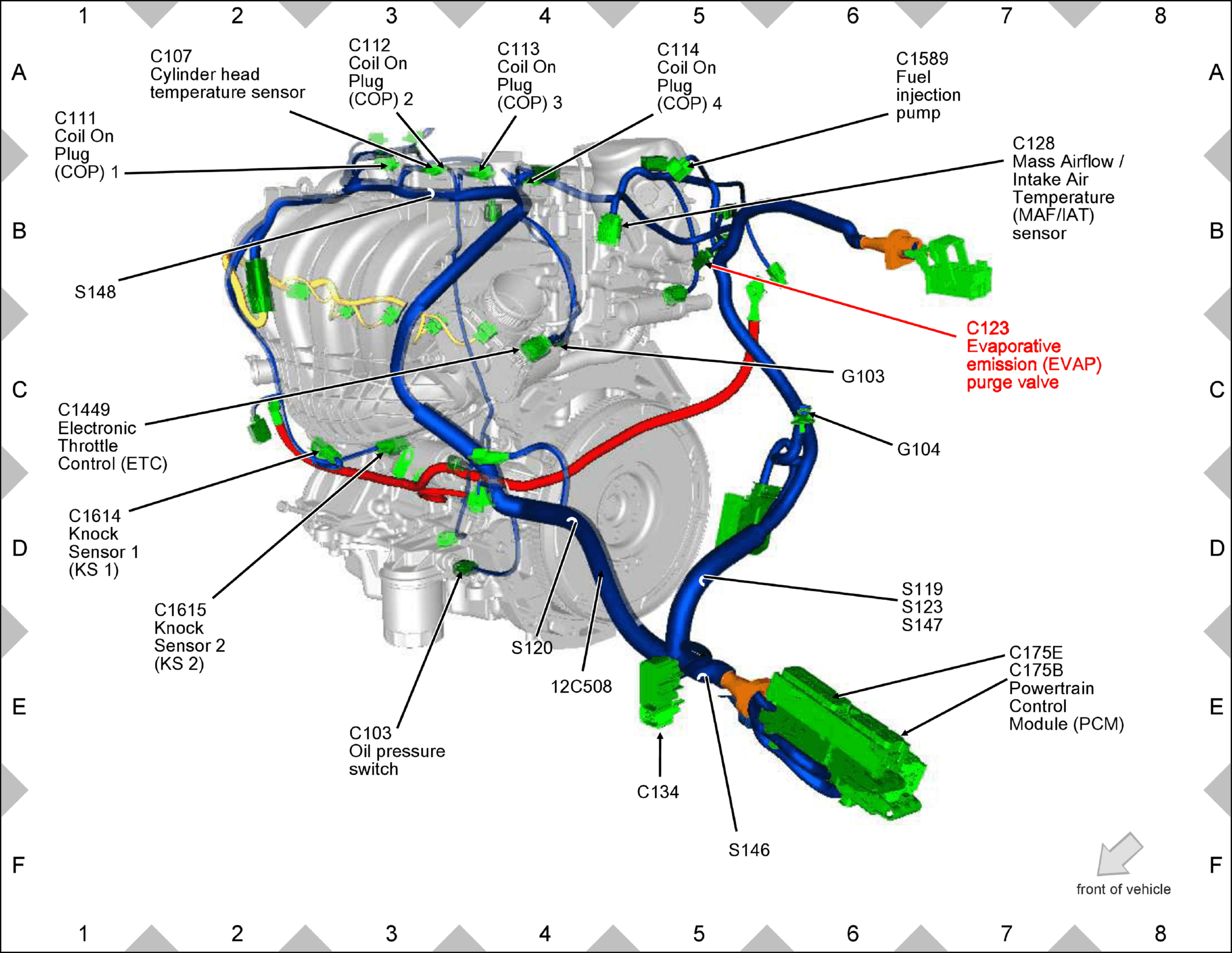

Fig 1: Evaporative Emission (EVAP) Purge Valve (GTDI) Component Location

GFDW52304

Courtesy of FORD MOTOR COMPANY
