Engine Oil Pressure Control Solenoid Valve (1.0L FOX) Component Location

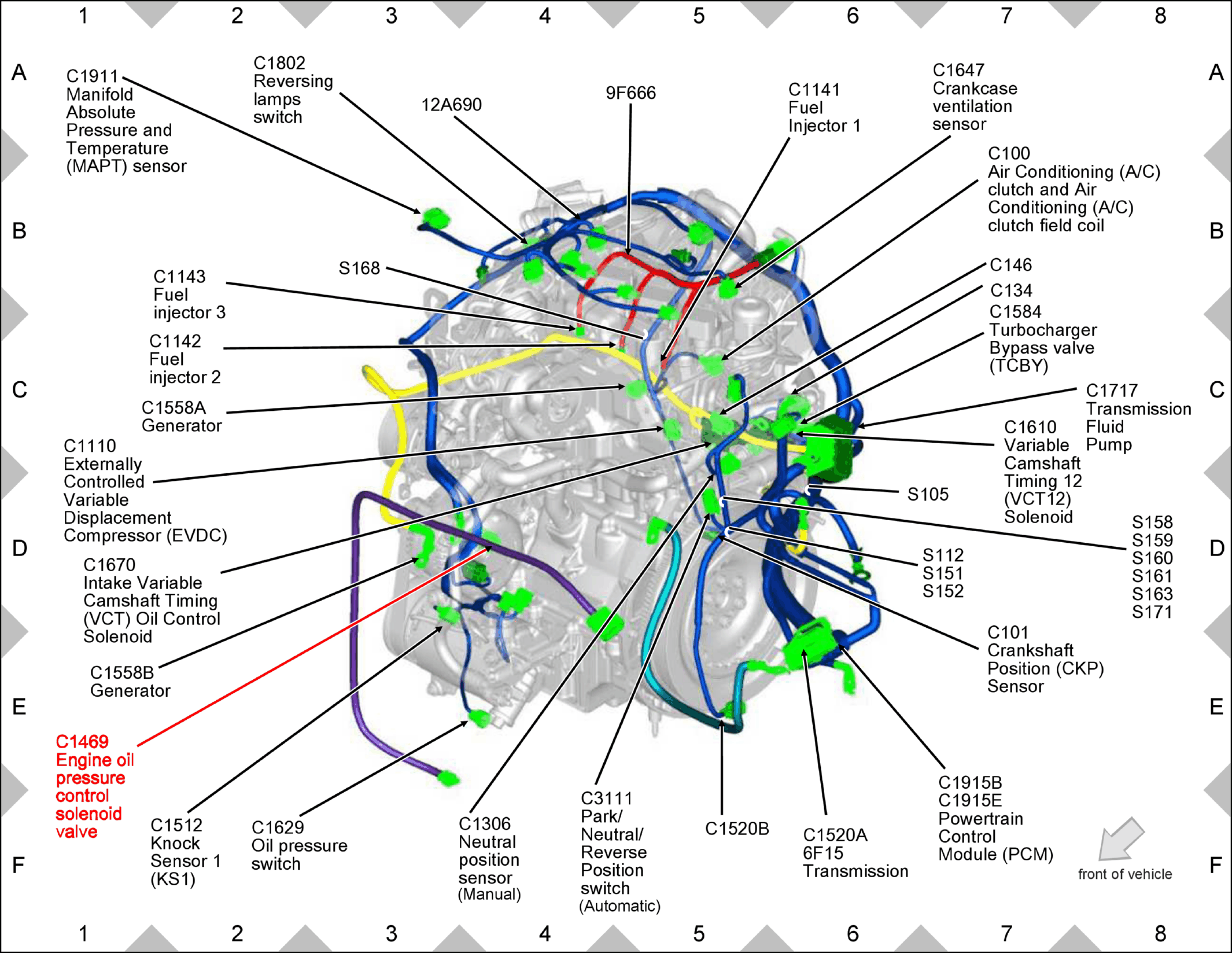

Fig 1: Engine Oil Pressure Control Solenoid Valve (1.0L FOX) Component Location

GFDW52303

Courtesy of FORD MOTOR COMPANY
