Electronic Throttle Control (ETC) Module (1.0L FOX) Component Location
Electronic Throttle Control (ETC) Module (1.0L FOX) Component Location

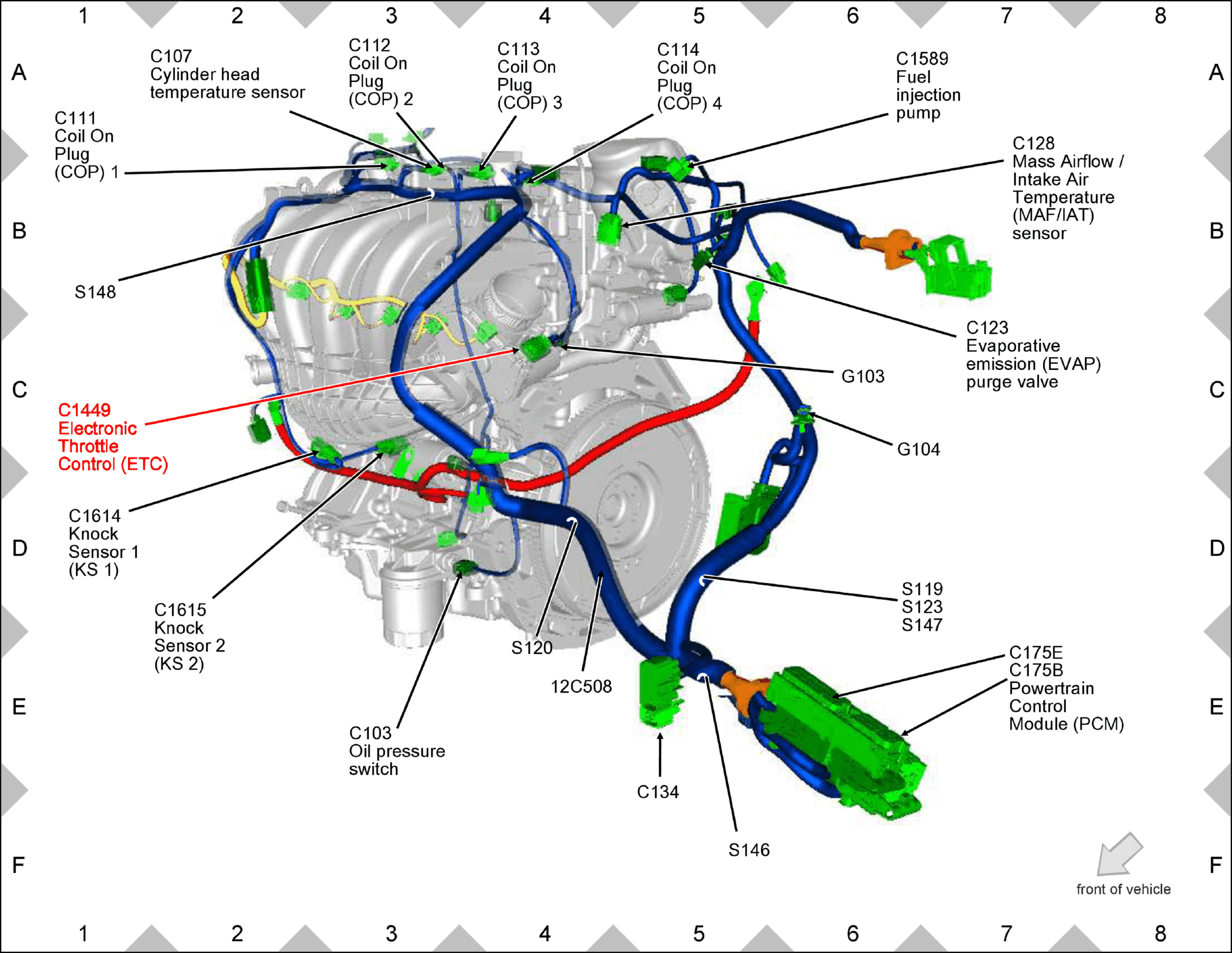

Fig 1: Electronic Throttle Control (ETC) Module (1.0L FOX) Component Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
