Driver Seat Horizontal Motor Component Location

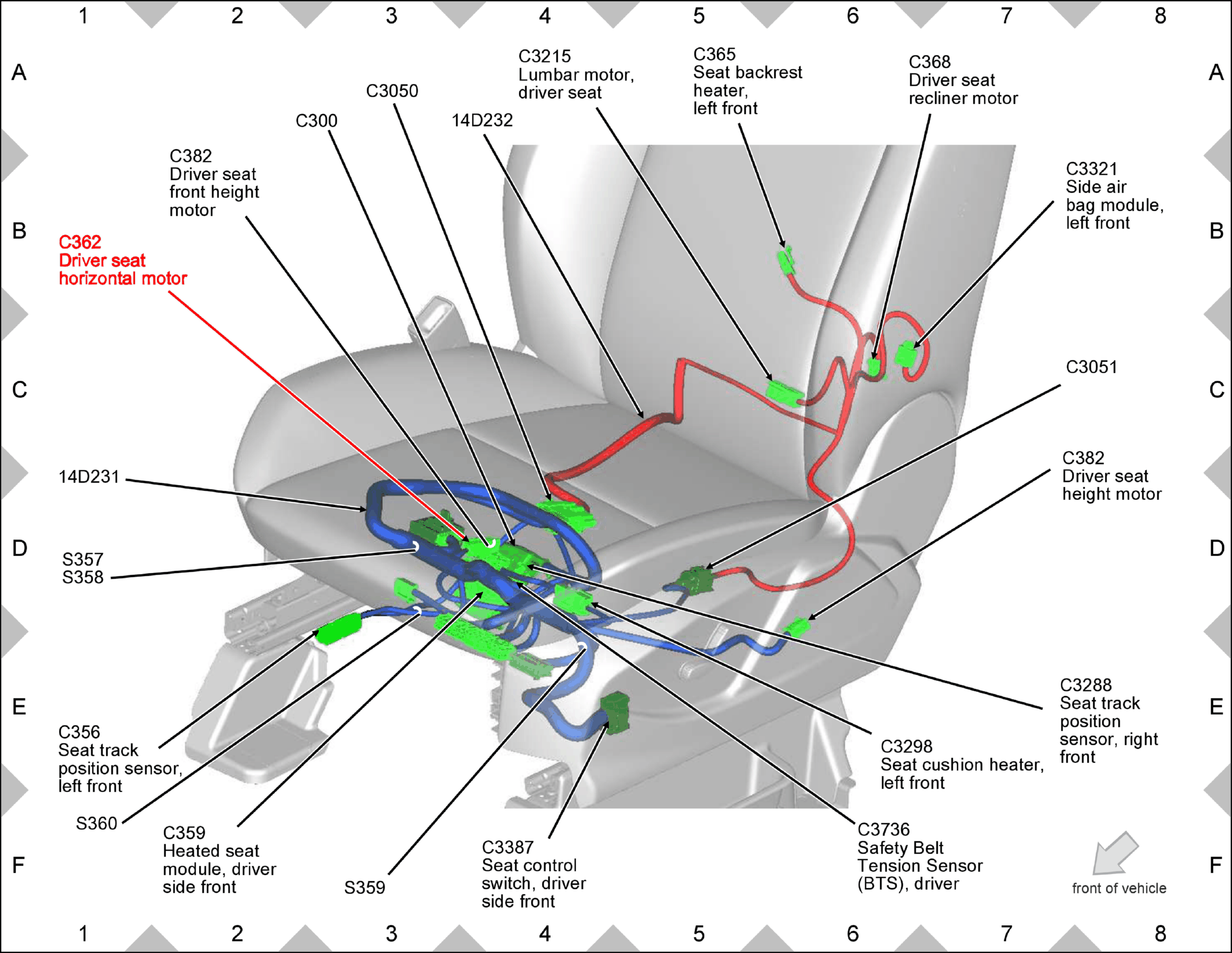

Fig 1: Driver Seat Horizontal Motor Component Location

GFDW52297

Courtesy of FORD MOTOR COMPANY
