Door Latch, Left Front Component Location

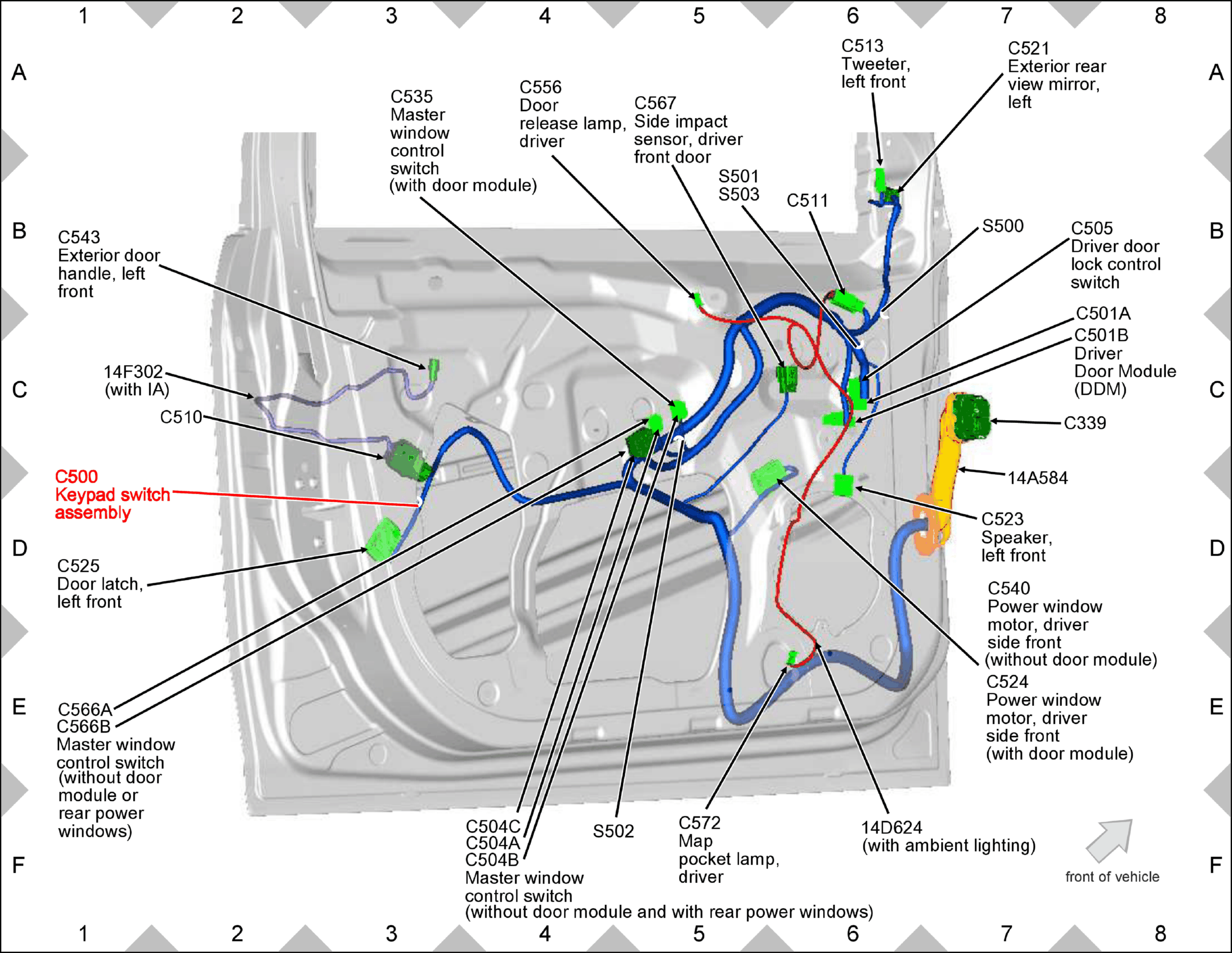

Fig 1: Door Latch, Left Front Component Location

GFDW52286

Courtesy of FORD MOTOR COMPANY
