Defrost Vent/Register Door Actuator Component Location

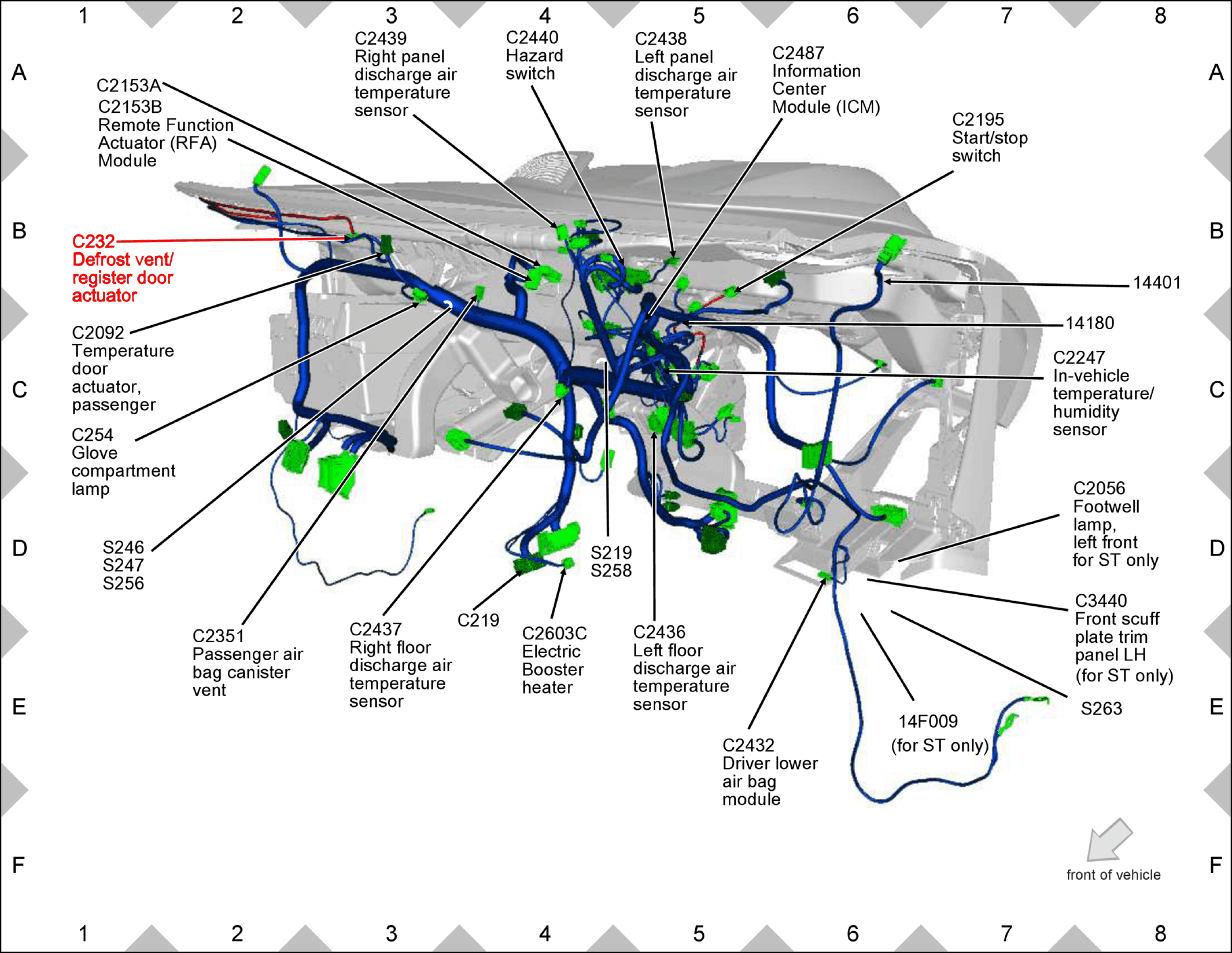

Fig 1: Defrost Vent/Register Door Actuator Component Location

GFDW52283

Courtesy of FORD MOTOR COMPANY
