Crankshaft Position (CKP) Sensor Component Location

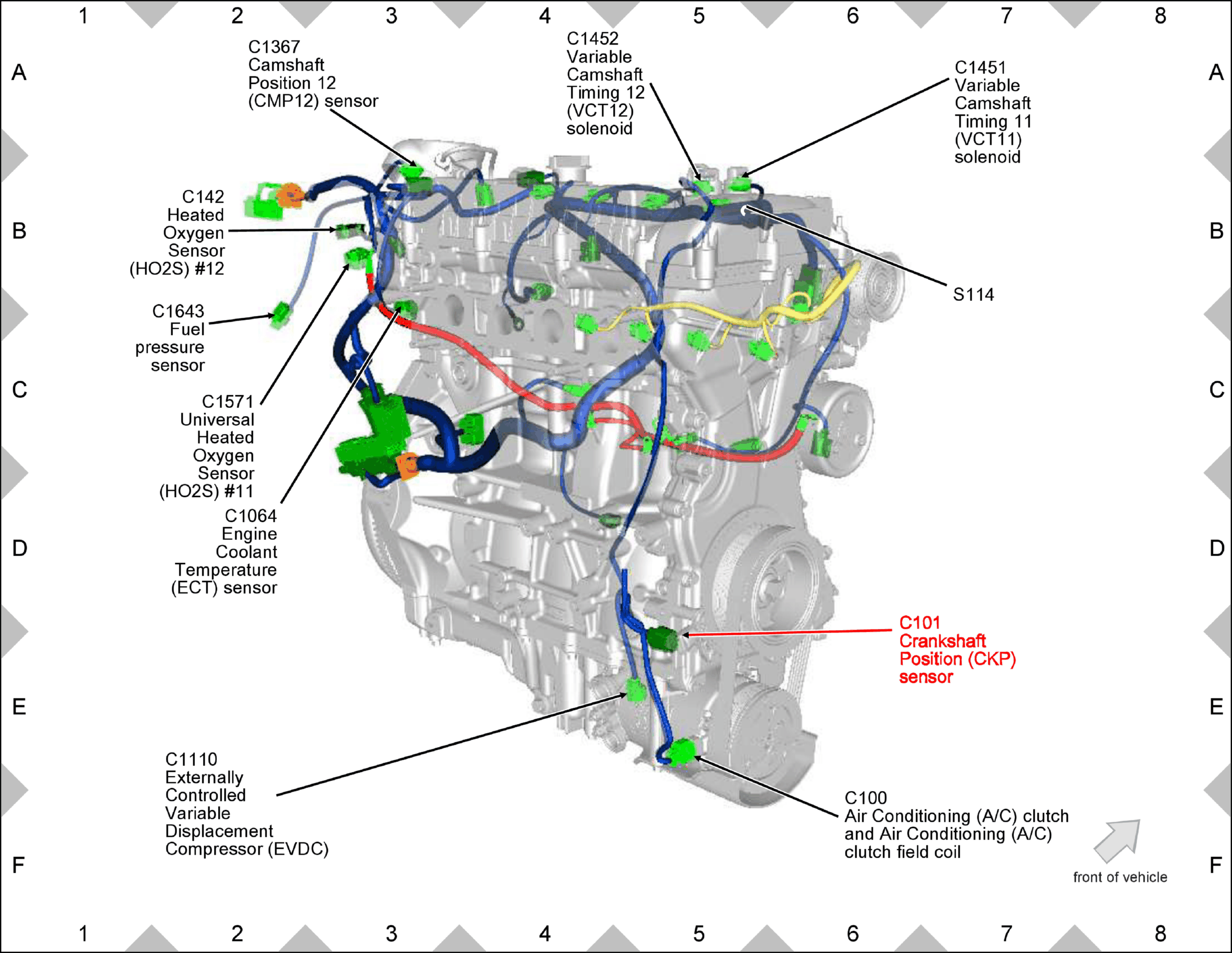

Fig 1: Crankshaft Position (CKP) Sensor Component Location

GFDW52278

Courtesy of FORD MOTOR COMPANY
